42JXGTS200K/42STH 42mm 6N.m~20N.m Planetary Gear Stepping Motor

42JXGTS200K/42STH 42mm 6N.m~20N.m Planetary Gear Stepping Motor

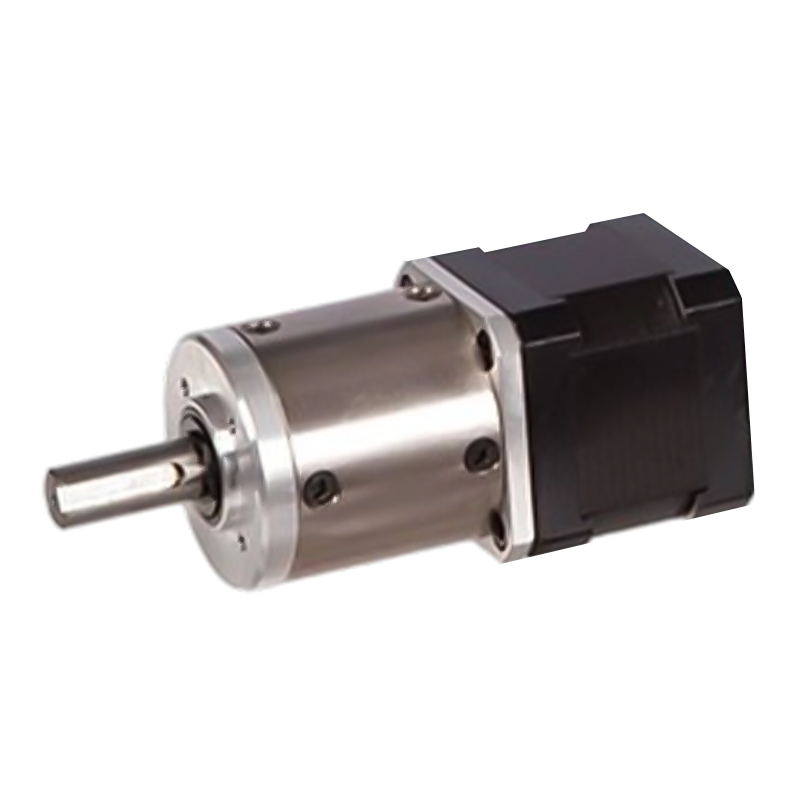

The hybrid walking Star gear motor 42JXGTS200K/42STH is a high performance power unit with an outer diameter of 42 mm and allowable torque range :6N.m~20N.m.
Due to its efficient and durable characteristics, it can reduce maintenance costs and energy consumption during use, has a high cost performance, and has strong competitiveness in many cost-sensitive application fields. It can further subdivide the stepping Angle of the stepper motor and significantly improve the positioning accuracy of the system. For example, precision planetary gearboxes can have arc minute errors as low as 0.05 min, making them particularly suitable for CNC machines.

  • 42JXGTS200K/42STH 42mm 6N.m~20N.m Planetary Gear Stepping Motor
Download Product Inquiry
PREV：52JXM200K/42STH Low Energy Loss Planetary Gear Stepping Motor
NEXT：42JXGS100K/42STH 42mm 3N.m~10N.m Planetary Gear Stepping Motor

+86 0579-86817938-836

[email protected]

42JXGTS200K/42STH

42mm Planetary Gearbox

Permissible Load Range: 6N.m~20N.m

Planetary Gear Stepping Motor (Ring Gear Material: Metal）

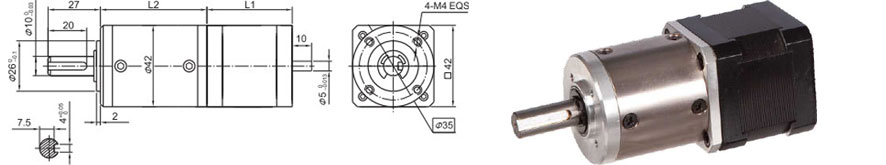

Dimensions

Planetary Gearbox

Ring material

Metal

Bearing at output

Ball bearings

Max. Radial load （12mm from flange）

≤80N

Max. shaft axial load

≤30N

Radial play of shaft （near to flange）

≤0.06 mm

Axial play of shaft

≤0.3 mm

Backlash at no-load

≤1.5°

Technical Data

42STH Hybrid Stepping Motor Specifications

Model No.

Rated Voltage

Current/Phase

Resistance/Phase

Inductance/Phase

Holding Torgue

# of Leads

Rotor Inertia

Weight

Length L1

Max. Gear Ratio

Single Shaft

V

A

Ω

mH

g.cm

g-m²

g

mm

42STH38-1684A

2.8

1.68

1.65

3.2

3.6

4

54

0.28

40

≤ 1:247

42STH47-1684A

2.8

1.68

1.65

2.8

4.4

4

68

0.35

48

≤1:106

A Single Shaft, B Double shaft

40JXGTS200K Planetary Gearbox Specifications

Reduction ratio

4.44

17

22

65

83

106

247

316

403

515

Number of gear trains

1

2

3

4

Length(L2) mm

38.2

49.7

60

70.3

Max. rated torque kg. cm

60

100

160

200

Short time permissible torque kg.cm

180

300

480

600

Efficiency %

0.9

0.81

0.73

0.66

Weight g

350

450

550

650

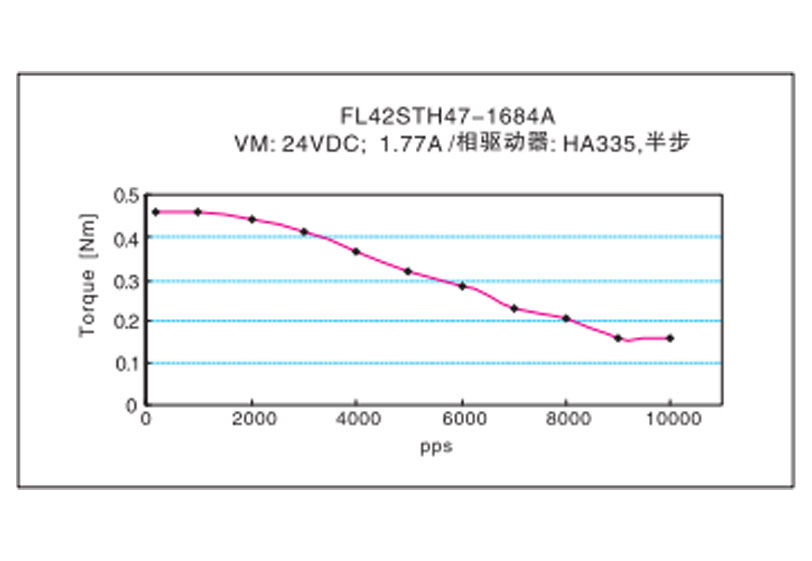

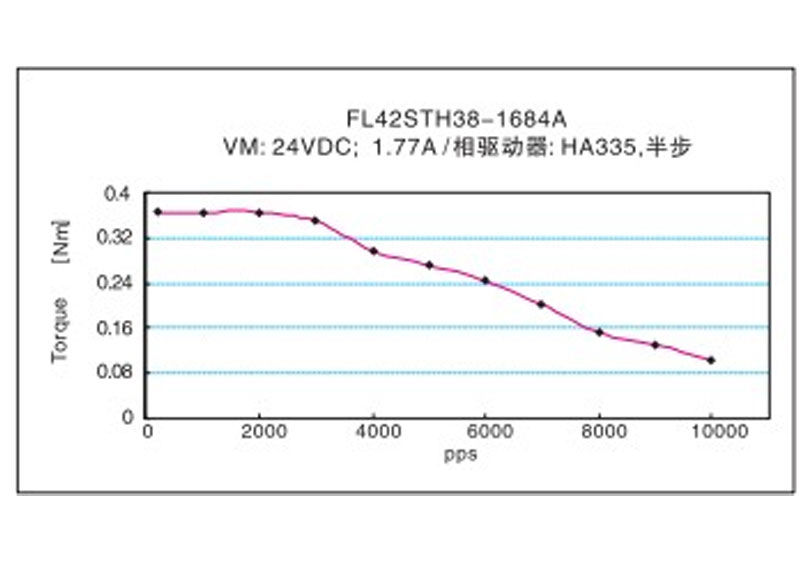

Frequency-torque Characteristics
