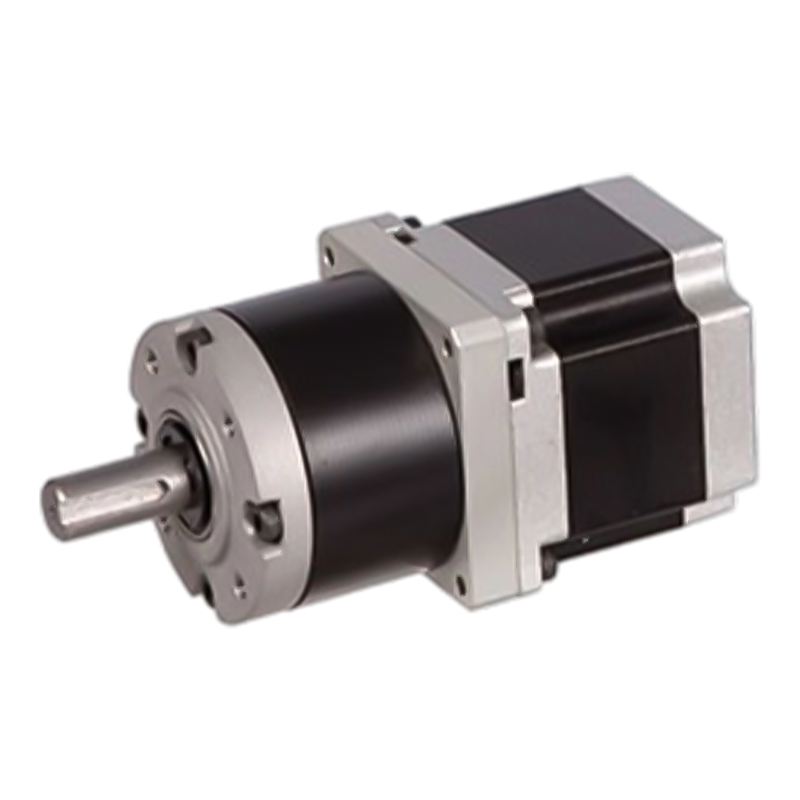

56JXS300K/57STH High Precision Hybrid Planetary Gear Stepper Motor

56JXS300K/57STH High Precision Hybrid Planetary Gear Stepper Motor

2JX150K/42STH High Precision Hybrid Stepping Motor Planetary Gearbox is a high-performance hybrid stepping motor equipped with a planetary gearbox featuring a metal ring gear material, suitable for various high-precision and high-torque applications. The maximum permissible radial load is 80N, the maximum permissible axial load is 30N, the radial play of the shaft is less than 0.06mm, the axial play of the shaft is less than 0.3mm, and the backlash at no-load is less than 1.5°. This motor comes in multiple specifications, such as 42STH33-0956A, 42STH33-0406A, etc., each model detailing parameters like rated voltage, current per phase, resistance per phase, inductance, holding torque, number of leads, rotor inertia, weight, and length. Additionally, performance data for different reduction ratios are provided, ranging from 3.5 to 294, with maximum rated torque from 30kg.cm to 150kg.cm, short-time permissible torque from 50kg.cm to 450kg.cm, and efficiency from 90% to 66%. These detailed technical parameters and performance indicators make this product widely applicable in industrial automation, precision machinery, and other fields.

  • 56JXS300K/57STH High Precision Hybrid Planetary Gear Stepper Motor
Download Product Inquiry
PREV：No previous article
NEXT：52JXM200K/42STH Low Energy Loss Planetary Gear Stepping Motor

+86 0579-86817938-836

[email protected]

56JXS300K/57STH

56mm OD Standard Gearbox(With Oil Seal),

Permissible Load Range: 9.0N.m~30N.m

Planetary Gear Stepping Motor (Ring Gear Material: Metal）

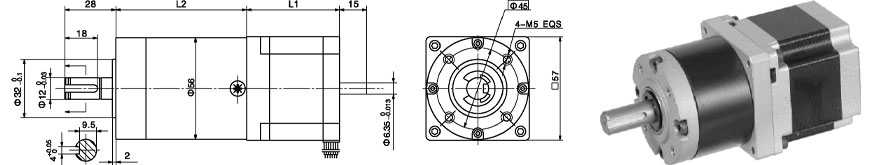

Dimensions

Ring material

Metal

Bearing at output

Ball bearings

Max. Radial load （10mm from flange）

≤250N

Max. shaft axial load

≤100N

Radial play of shaft （near to flange）

≤ 0.08 mm

Axial play of shaft

≤0.4 mm

Backlash at no-load

≤1.5°

Technical Data

57STH High Torque Hybrid Stepping Motor Specifications

Model No.

Rated Voltage

Current/Phase

Resistance/Phase

Inductance/Phase

Holding Torgue

# of Leads

Rotor Inertia

Weight

Length L1

Max. Gear Ratio

 Model No.

Single Shaft

V

A

Ω

mH

g.cm

g-m²

g

mm

57STH41-1006A

5.7

1

5.7

5.4

3.9

6

120

0.45

41

0.21

1:326

57STH41-2006A

2.8

2

1.4

1.4

3.9

6

1:326

57STH41-3006A

1.9

3

0.63

0.6

3.9

6

1:326

57STH41-2804A

2

2.8

0.7

1.4

5.5

4

1:234

57STH51-1006A

6.6

1

6.6

8.2

7.2

6

275

0.65

51

0.36

1:168

57STH51-2006A

3.3

2

1.65

2.2

7.2

6

1:168

57STH51-3006A

2.2

3

0.74

0.9

7.2

6

1:168

57STH51-2804A

2.3

2.8

0.83

2.2

10.1

4

1:77

57STH56-1006A

7.4

1

7.4

10

9

6

300

0.7

56

0.4

1:77

57STH56-2006A

3.6

2

1.8

2.5

9

6

1:77

57STH56-3006A

2.3

3

0.75

1.1

9

6

1:77

57STH56-2804A

2.5

2.8

0.9

2.5

12.6

4

1:77
56JXS300K Planetary Gearbox Specifications

2 Types:Reinforced or Long Life Gearbox

Reduction ratio

3.6

4.25

7.5

13

15

18

27

32

47

55

65

77

168

198

234

276

326

Number of gear trains

1

2

3

4

Length(L2) mm

53

61

72

84

Max. rated torque kg. cm

90

150

240

300

Short time permissible torque kg.cm

270

450

720

900

Efficiency %

0.9

0.81

0.73

0.66

Weight g

640

710

880

1220
