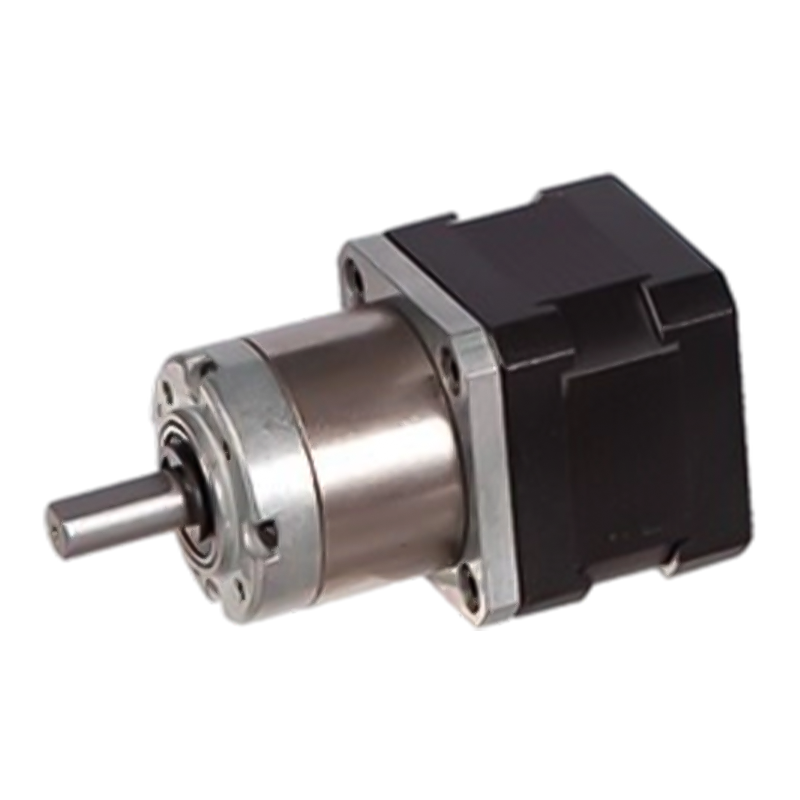

36JXES60K/42STH 12v/24v Planetary Gear Stepping Motor

36JXES60K/42STH 12v/24v Planetary Gear Stepping Motor

36JXES60K/42STH can be selected in the inner ring of two materials: powder metal (model 36JXF60K), metal (model 36JXE60K), supporting 12v/24v dual voltage environment, maximum allowable radial load ≤50N.
The structure of the planetary gear train makes the load evenly distributed on each planetary wheel, reducing the force on a single gear, reducing vibration and noise. At the same time, the running characteristics of the stepper motor are also relatively stable, and the output performance can be maintained relatively stable under different loads and speeds. Therefore, the planetary deceleration stepper motor has good stability during operation and can provide smooth power output.

  • 36JXES60K/42STH 12v/24v Planetary Gear Stepping Motor
Download Product Inquiry
PREV：42JX150K/42STH 80N Hybrid Planetary Gear Stepper Motor
NEXT：36JXES60K/35STH 36mm Planetary Gear Stepping Motor

+86 0579-86817938-836

[email protected]

36JXES60K/42STH

36mm Standard Gearbox,

Permissible Load Range: 1.8N.m~6.0N.m

Planetary Gear Stepping Motor (Ring Gear Material: Metal and Powder Metal）

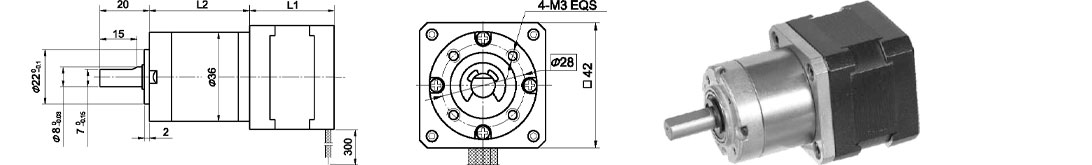

Dimensions

Ring gear can be selected within the two materials : Powder metal (Type:36JXF60K) , Metal (Type:36JXE60K)

Planetary Gearbox

Ring material

E Type:Metal F Type:Powder metal

Bearing at output

Ball bearings

Max. Radial load （10mm from flange）

≤50N

Max. shaft axial load

≤30N

Radial play of shaft （near to flange）

≤0.07mm

Axial play of shaft

≤0.3 mm

Backlash at no-load

≤1.5°

Technical Data

42STH Hybrid Stepping Motor Specifications

Model No.

Rated Voltage

Current/Phase

Resistance/Phase

Inductance/Phase

Holding Torgue

# of Leads

Rotor Inertia

Weight

Length L1

Max. Gear Ratio

Single Shaft

V

A

Ω

mH

g.cm

g-m²

g

mm

42STH33-0316A

12

0.31

38.5

21

1.6

6

35

0.22

34

≤1:100

42STH33-1334A

2.8

1.33

2.1

2.5

2.2

4

35

0.22

34

≤1:71
36JXES60K Planetary Gearbox Specifications

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

Number of gear trains

1

2

3

Length(L2) mm

27

34.1

41

Max. rated torque kg. cm

6

24

50

Short time permissible torque kg.cm

20

70

150

Efficiency %

0.9

0.81

0.73

Weight g

195

210

290

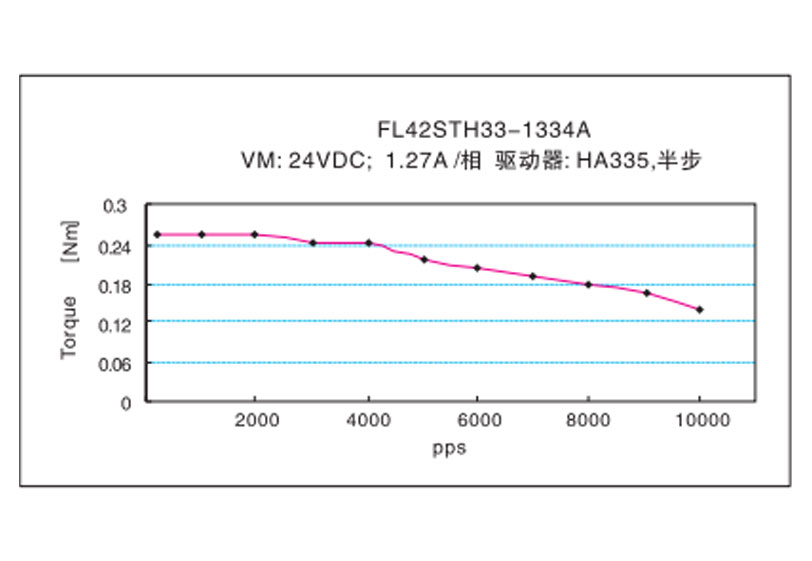

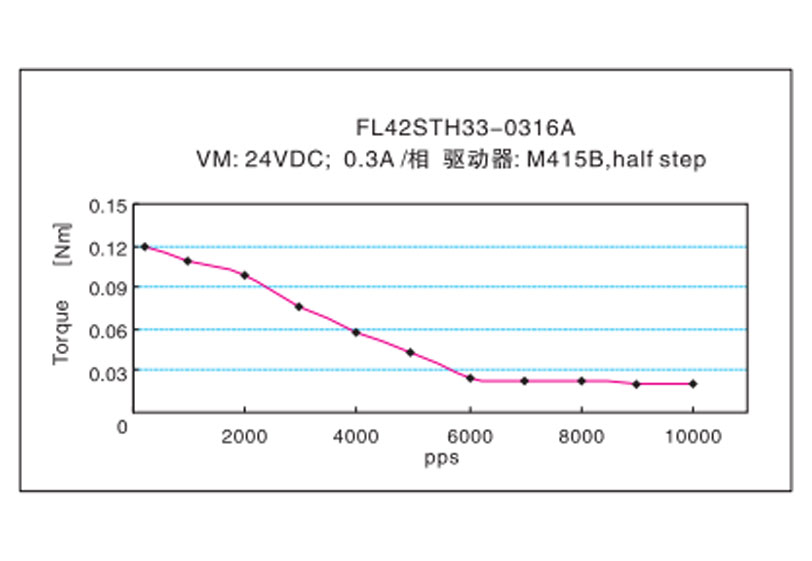

Frequency-torque Characteristics
