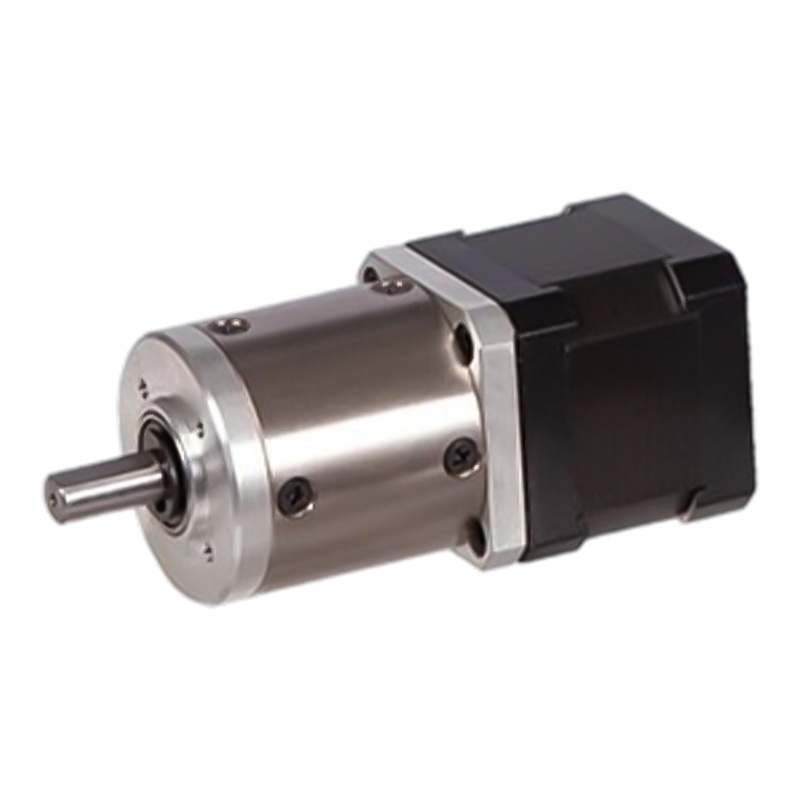

42JX150K/42STH 80N Hybrid Planetary Gear Stepper Motor

42JX150K/42STH 80N Hybrid Planetary Gear Stepper Motor

42JX150K/42STH Hybrid Stepping Planetary Gear Motor is a high-performance hybrid stepping motor that combines the advantages of a planetary gear reducer, suitable for applications requiring high precision and high torque output. The motor uses a metal ring gear material to ensure stability and durability under high load conditions. Its maximum allowable radial load is 80N, the maximum allowable axial load is 30N, the radial play is only 0.06mm, and the axial play is 0.3mm, with a backlash less than 1.5° when unloaded. These parameters indicate that the motor has mechanical performance and precise motion control capabilities. Additionally, the motor offers various specifications, including different voltage, current, resistance, inductance electrical parameters, as well as multiple reduction ratios and gear stages, to meet the needs of different application scenarios. Through optimized design and high-quality manufacturing processes, this motor excels in efficiency, reliability, and service life, making it an ideal choice for industrial automation, precision instruments, and robotics technology fields.

  • 42JX150K/42STH 80N Hybrid Planetary Gear Stepper Motor
Download Product Inquiry
PREV：42JXGS100K/42STH 42mm 3N.m~10N.m Planetary Gear Stepping Motor
NEXT：36JXES60K/42STH 12v/24v Planetary Gear Stepping Motor

+86 0579-86817938-836

[email protected]

42JX150K/42STH

42mm OD Reinforced Gearbox,

Permissible Load Range: 3N.m~10N.m

Planetary Gear Stepping Motor （Ring Gear Material: Metal）

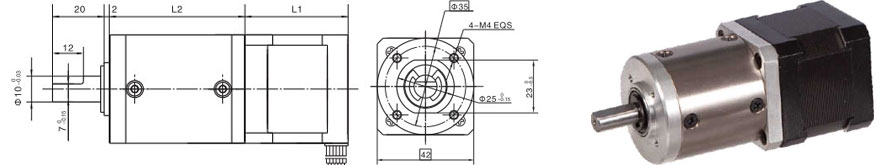

Dimensions

Planetary Gearbox

Ring material

Metal

Bearing at output

Ball bearings

Max. Radial load （10mm from flange）

≤80N

Max. shaft axial load

≤30N

Radial play of shaft （near to flange）

≤0.06nn

Axial play of shaft

≤0.3 mm

Backlash at no-load

≤1.5°

Technical Data

42STH Hybrid Stepping Motor Specifications

Model No.

Rated Voltage

Current/Phase

Resistance/Phase

Inductance/Phase

Holding Torgue

# of Leads

Rotor Inertia

Weight

Length L1

Max. Gear Ratio

Single Shaft

V

A

Ω

mH

g.cm

g-m²

g

mm

42STH33-0956A

4

0.95

4.2

2.5

1.6

6

35

0.22

34

≤ 1:264

42STH33-0406A

9.6

0.4

24

15

1.6

6

≤ 1:264

42STH33-0316A

12

0.31

38.5

21

1.6

6

≤1:264

42STH33-1334A

2.8

1.33

2.1

2.5

2.2

4

≤1:189

42STH38-1206A

4

1.2

3.3

3.2

2.6

6

54

0.28

40

≤1:100

42STH38-0806A

6

0.8

7.5

6.7

2.6

6

≤1:100

42STH38-0406A

12

0.4

30

30

2.6

6

≤1:100

42STH38-1684A

2.8

1.68

1.65

3.2

3.6

4

≤1:71

A Single Shaft, B Double shaft

42JX150K Planetary Gearbox Specifications

Reduction ratio

3.5

14

17

21

49

61

84

104

126

172

212

294

Number of gear trains

1

2

3

4

Length(L2) mm

32.5

39.2

45.9

52.6

Max. rated torque kg. cm

30

50

90

150

Short time permissible torque kg.cm

90

150

270

450

Efficiency %

0.9

0.81

0.73

0.66

Weight g

320

420

520

620
