36JXES60K/35STH 36mm Planetary Gear Stepping Motor

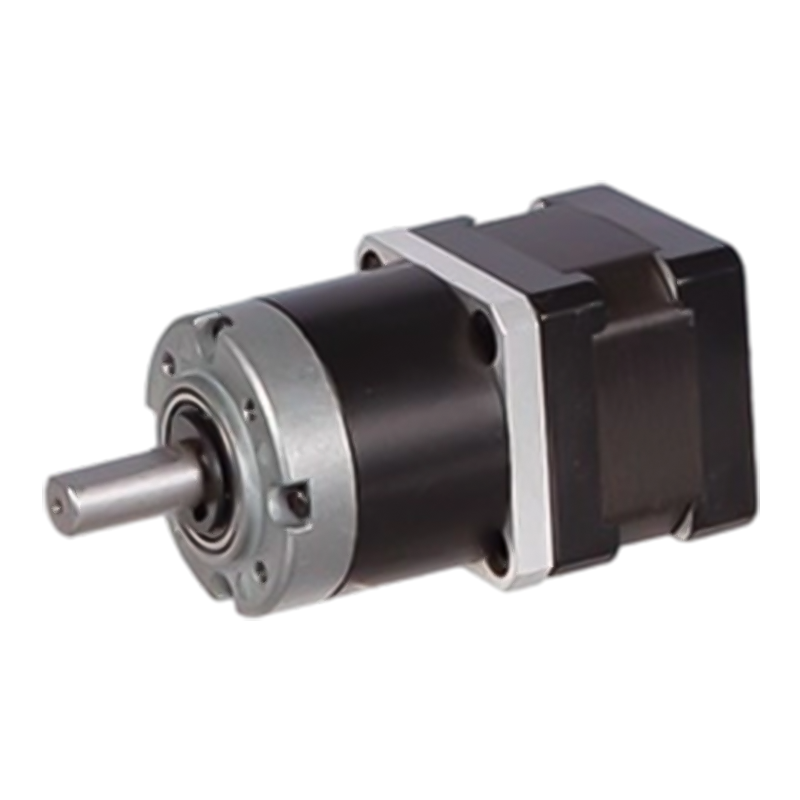

36JXES60K/35STH 36mm Planetary Gear Stepping Motor

The 36JXES60K/35STH is a hybrid walking star gear motor with an inner ring material of metal and powder metal, with an outer diameter of 36 mm, which can be selected between the inner rings of two materials: powder metal (Model 36JXF60K) and metal (Model 36JXE60K).
The gear transmission adopts the internal meshing mode, and the meshing friction loss between the planet wheel, the sun wheel and the tooth ring is small. Its transmission efficiency is usually between 90% and 95%, which can more effectively transfer the mechanical energy of the stepper motor to the load end and reduce energy loss than some other deceleration transmission methods, such as worm gear and worm drive.

  • 36JXES60K/35STH 36mm Planetary Gear Stepping Motor
Download Product Inquiry
PREV：36JXES60K/42STH 12v/24v Planetary Gear Stepping Motor
NEXT：28JXS40K/28STH Precise Angular Displacement Planetary Gear Stepping Motor

+86 0579-86817938-836

[email protected]

36JXES60K/35STH

36mm Standard Gearbox,

Permissible Load Range: 1.8N.m~6.0N.m

Planetary Gear Stepping Motor (Ring Gear Material: Metal and Powder Metal）

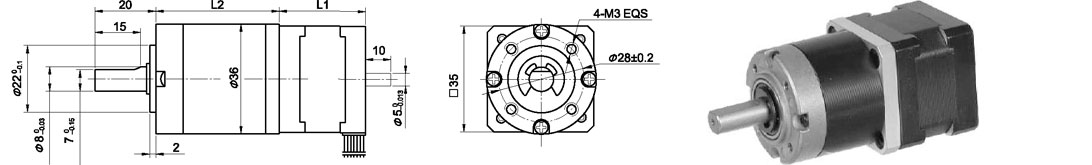

Dimensions

Ring gear can be selected within the two materials ： Powder metal ( Type:36JXF60K ) , Metal (Type:36JXE60 K)

Planetary

Ring material

Type E:Metal Type F:Powder metal

Bearing at output

Ball bearings

Max. Radial load （10mm from flange）

≤50N

Max. shaft axial load

≤30N

Radial play of shaft （near to flange）

≤0.07 mm

Axial play of shaft

≤0.3 mm

Backlash at no-load

≤1.5°

Technical Data

35STH Hybrid Stepping Motor Specifications

Model No.

Rated Voltage

Current/Phase

Resistance/Phase

Inductance/Phase

Holding Torgue

# of Leads

Rotor Inertia

Weight

Length L1

Max. Gear Ratio

Single Shaft

V

A

Ω

mH

g.cm

g-m²

g

mm

35STH28-0504A

10

0.5

20

14

1000

4

11

140

28

≤ 1:264

35STH36-1004A

2.7

1

2.7

4.3

1400

4

14

180

36

≤1:189

A Single Shaft, B Double shaft

36JXES60K Planetary Gearbox Specifications

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

Number of gear trains

1

2

3

Length(L2) mm

27

34.1

41

Max. rated torque kg. cm

18

30

48

Short time permissible torque kg.cm

54

90

144

Efficiency %

0.9

0.81

0.73

Weight g

195

210

290

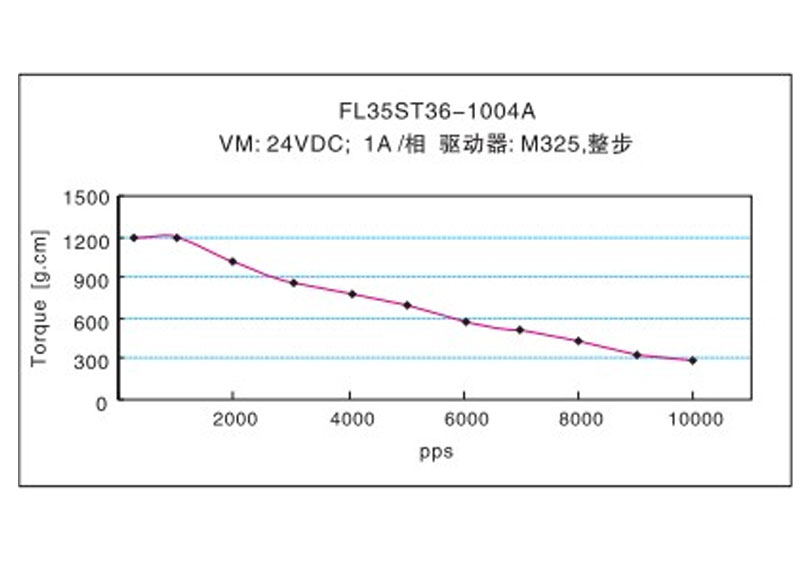

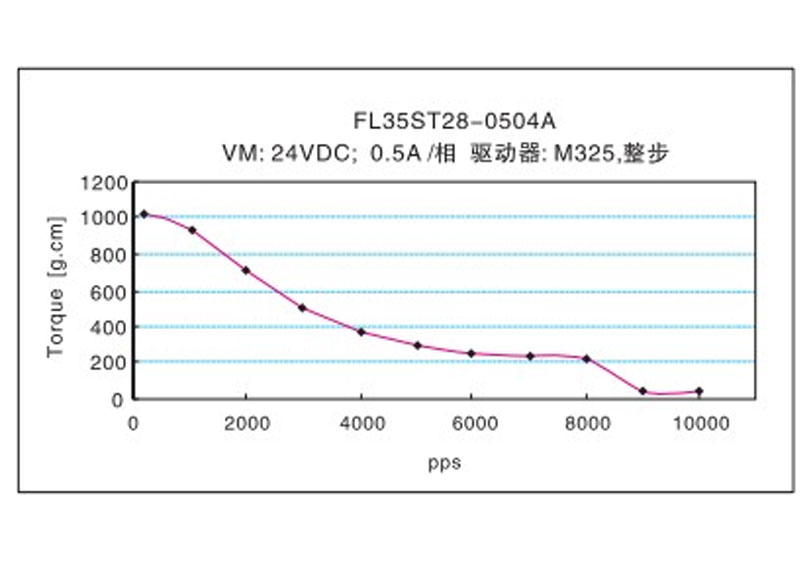

Frequency-torque Characteristics

Message Feedback
Related products
