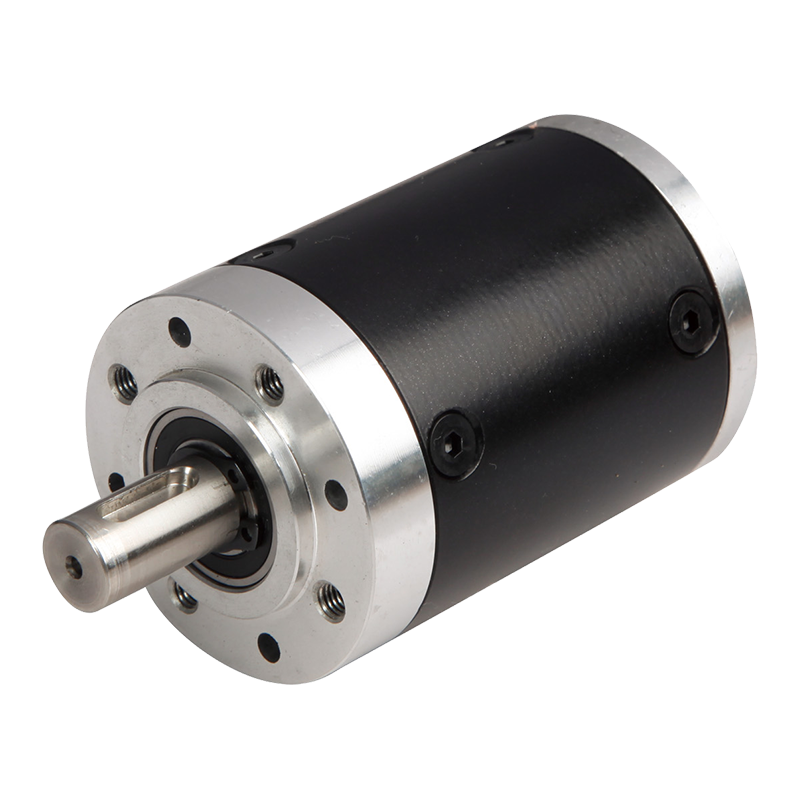

52JXML200K 52mm 90% Gear Ratio Low Noise Helical Planetary Gearbox

52JXML200K 52mm 90% Gear Ratio Low Noise Helical Planetary Gearbox

The 52JXML200K 52mm Low Noise Helical Planetary Gearbox is a high-performance, low-noise reducer specifically designed for applications requiring high precision and efficiency. This product features a housing made of metal and plastic materials, ensuring its robustness and lightweight characteristics. The output shaft bearing uses rolling bearings, with a maximum allowable radial load of 200N, a maximum allowable axial load of 100N, a radial play of the shaft less than 0.04mm, an axial play of the shaft less than 0.3mm, and a backlash at no-load less than 1°. These parameters guarantee the stability and reliability of the gearbox during operation. Additionally, the maximum shaft press fit force is 300N, further enhancing its load-bearing capacity. The transmission efficiency of this gearbox reaches up to 90%, with a rated tolerance torque of 4N.m and a max momentary tolerance torque of 12N.m. It operates within a temperature range of -10°C to +80°C and a relative humidity range of 20% to 85%RH, with a recommended input speed of ≤4000rpm and same-direction input and output.

  • 52JXML200K 52mm 90% Gear Ratio Low Noise Helical Planetary Gearbox
Download Product Inquiry
PREV：56JXL300K 56mm 300N Low Noise Planetary Gearbox
NEXT：42JXL100K 42mm Wide Operating Temperature Range Low Noise Planetary Gearbox

+86 0579-86817938-836

[email protected]

52mm Helical Planetary Gearbox 52JXML200K

52mm Helical Teeth Low Noise Planetary Gearbox,

Permissible Load Range: 2N.m〜20N.m

Low Noise Planetary Gearbox

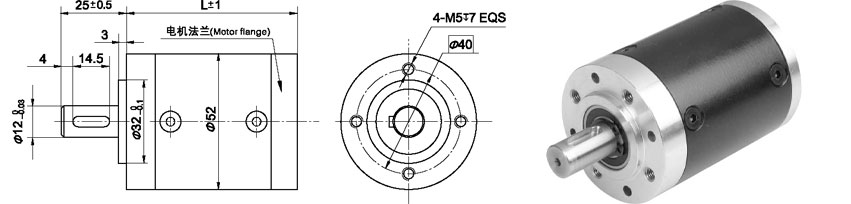

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension

Axle teeth, starting structure

Combined starting structure

Stage1

4.5 ~ 8

56

65

Stage2

20 ~ 64

71

80

Stage3

91 ~ 512

87

96
Parameter

Parameter

Stage1

Stage2

Stage3

Transmission efficiency

90%

81%

73%

Rated tolerance torque

4N.m

12N.m

20N.m

Max momentary tolerance torque

Three times of the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20% 〜85%RH

Recommend input speed

≤4000rpm

Input and output direction

Same direction

Technical Data

Housing material

Metal+Plastic helical

Bearing at output

Ball bearings

Max. Radial load（10mm from flange）

≤200N

Max. shaft axial load

≤100N

Radial play of shaft （near to flange）

≤0.04mm

Axial play of shaft

≤0.3 mm

Backlash at no-load

≤1°

Shaft press fit force, max

≤300N
