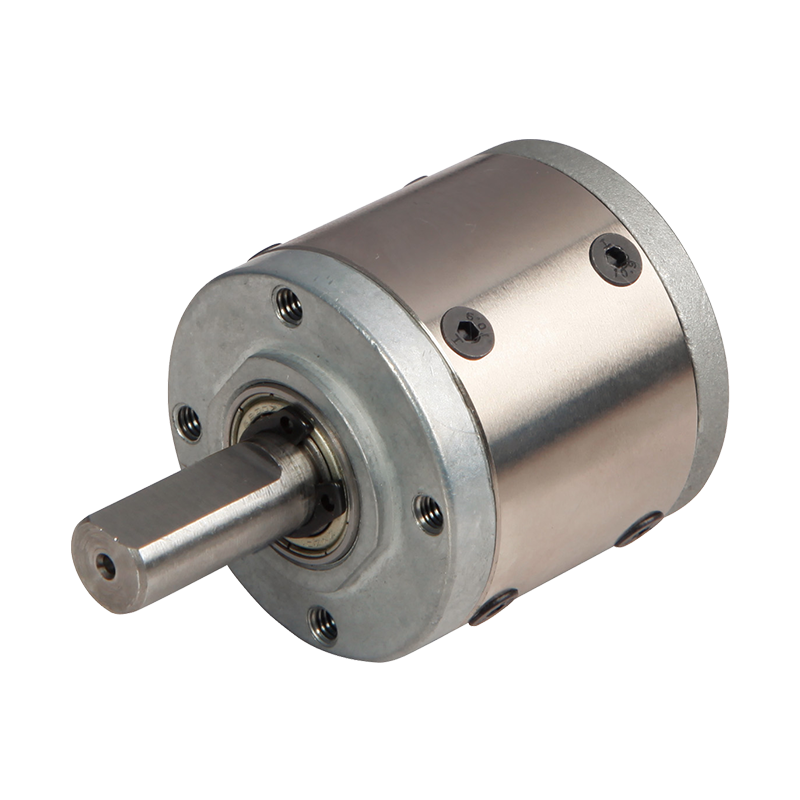

42JXL100K 42mm Wide Operating Temperature Range Low Noise Planetary Gearbox

42JXL100K 42mm Wide Operating Temperature Range Low Noise Planetary Gearbox

The 42JXL100K low noise planetary gearbox features a metal and plastic helical inner ring with an outer diameter of 42 mm and is output by a rolling bearing. The maximum allowable radial load is 80N, the operating temperature is -10℃~ +80℃, and the recommended input speed is 4000rpm.
With low noise, high transmission and stable dynamic response, it is suitable for servo systems and medical equipment, such as sweeping robots, electric curtains, surgical robots, infusion pumps, imaging equipment, etc.

  • 42JXL100K 42mm Wide Operating Temperature Range Low Noise Planetary Gearbox
Download Product Inquiry
PREV：52JXML200K 52mm 90% Gear Ratio Low Noise Helical Planetary Gearbox
NEXT：36JXL30K 36mm High Damping Material Low Noise Planetary Gearbox

+86 0579-86817938-836

[email protected]

42mm Planetary Gearbox 42JXL100K

42mm Helical Teeth Low Noise Planetary Gearbox,

Permissible Load Range: 1N.m〜10N.m

Low Noise Planetary Gearbox

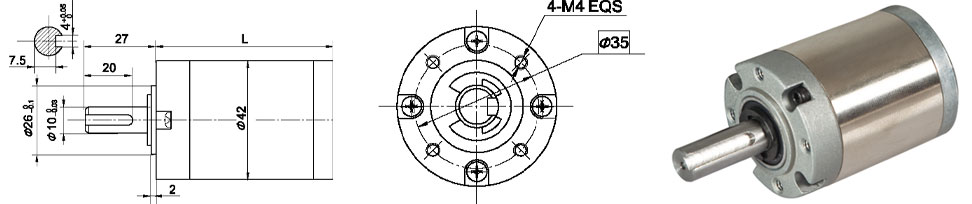

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension

Stage1

3.7~5.2

31.5

Stage2

14 ~27

42.1

Stage3

51 ~139

52.5

Stage4

189 ~720

62.9
Parameter

Parameter

Stage1

Stage2

Stage3

Stage4

Transmission efficiency

90%

81%

73%

 66%

Rated tolerance torque

1N.m

4N.m

8N.m

10N.m

Max momentary tolerance torque

Three times of the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20%~85%RH

Recommend input speed

≤4000rpm

Input and output direction

Same direction

Technical Data

Housing material

Metal+Plastic helical

Bearing at output

Ball bearings

Max. Radial load（12mm from flange）

≤80N

Max. shaft axial load

≤30N

Radial play of shaft （near to flange）

≤0.06mm

Axial play of shaft

≤0.3 mm

Backlash at no-load

≤1.5°

Shaft press fit force, max

≤150N
