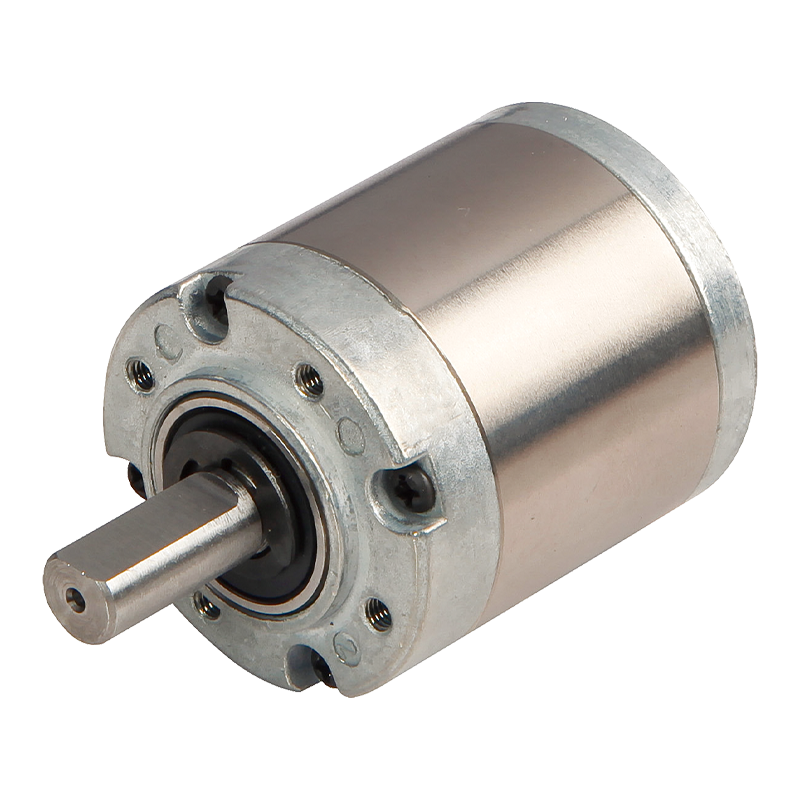

36JXL30K 36mm High Damping Material Low Noise Planetary Gearbox

36JXL30K 36mm High Damping Material Low Noise Planetary Gearbox

The 36JXL30K is a high performance, high precision mechanical transmission. This product uses metal shell, durable, long service life. The output shaft is a rolling bearing design with an outer diameter of 36 mm.
In the assembly process, the precision assembly process and equipment are used to ensure that the meshing gap between the gears is uniform, and the axial and radial runout is controlled within a very small range. This helps to reduce the instability of the gear during operation and reduce noise. The selection of high-quality gear materials, such as high-strength alloy steel, and appropriate heat treatment to improve the strength and wear resistance of the gear. At the same time, the material's high damping properties also help to absorb vibration energy and reduce noise transmission.

  • 36JXL30K 36mm High Damping Material Low Noise Planetary Gearbox
Download Product Inquiry
PREV：42JXL100K 42mm Wide Operating Temperature Range Low Noise Planetary Gearbox
NEXT：No next article

+86 0579-86817938-836

[email protected]

36mm Planetary Gearbox 36JXL30K

36mm Helical Teeth Low Noise Planetary Gearbox,

Permissible Load Range: 0.3N.m〜3. 0N.m

Low Noise Planetary Gearbox

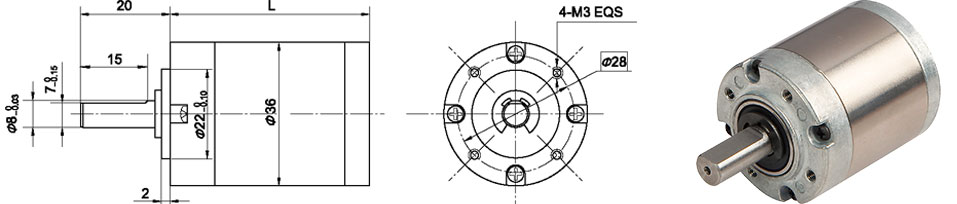

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension

Stage1

3.7~5.2

30

Stage2

14~27

37.5

Stage3

51 ~139

47.4

Stage4

189~720

54.8
Parameter

Parameter

Stage1

Stage2

Stage3

Stage4

Transmission efficiency

90%

81%

73%

66%

Rated tolerance torque

0.3N.m

1.2N.m

2.5N.m

3.ON.m

Max momentary tolerance torque

Three times of the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20%~85%RH

Recommend input speed

≤4000rpm

Input and output direction

同向 Same direction

Technical Data

Housing material

Metal+Plastic helical

Bearing at the output

Ball bearings

Max. Radial load（10mm from flange）

≤50N

Max. shaft axial load

≤30N

Radial play of shaft （near to flange）

≤0.07mm

Axial play of shaft

≤0.3 mm

Backlash at no-load

≤1.5°

Shaft press fit force, max

≤120N
