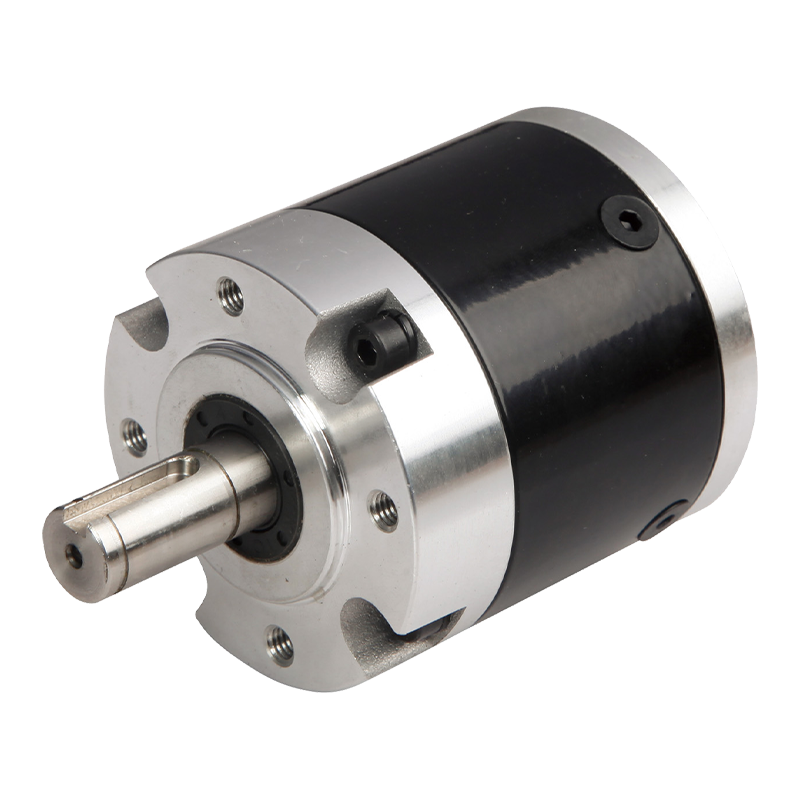

56JXL300K 56mm 300N Low Noise Planetary Gearbox

56JXL300K 56mm 300N Low Noise Planetary Gearbox

The 56JXL300K Low Noise Planetary Gearbox is a high-performance product specifically designed for high-precision and low-noise applications. This gearbox features a 56mm helical teeth low noise planetary gear structure, allowing a torque range from 3N.m to 30N.m, making it suitable for various industrial automation equipment and precision machinery. The housing material consists of metal and plastic helical teeth, ensuring robustness and durability. The output shaft bearing type is rolling bearings, with a maximum permissible radial load of 200N and a maximum permissible axial load of 100N. The radial play of the shaft is less than 0.04mm, and the axial play is less than 0.3mm, with a backlash at no-load of 1.5°. The maximum shaft press fit force is 300N, guaranteeing stable operation under high load conditions. The gear ratio parameters include stage one, two, three, and four, corresponding to different transmission efficiencies and rated tolerance torques, meeting the requirements of various application scenarios. The operating temperature range is -10°C to +80°C, with an operating ambient humidity of 20% to 85%RH, and a recommended input speed not exceeding 4000rpm.

  • 56JXL300K 56mm 300N Low Noise Planetary Gearbox
Download Product Inquiry
PREV：No previous article
NEXT：52JXML200K 52mm 90% Gear Ratio Low Noise Helical Planetary Gearbox

+86 0579-86817938-836

[email protected]

56mm Planetary Gearbox 56JXL300K

56mm Helical Teeth Low Noise Planetary Gearbox,

Permissible Load Range: 3N.m〜30N.m

Low Noise Planetary Gearbox

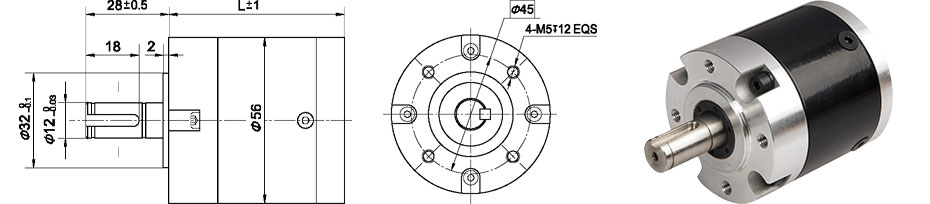

Dimensions

Parameter

Gear Ratio Parameter

Gear Ratio

L Dimension

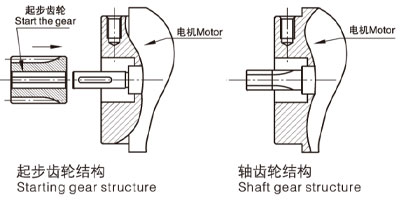

Axle teeth, starting structure

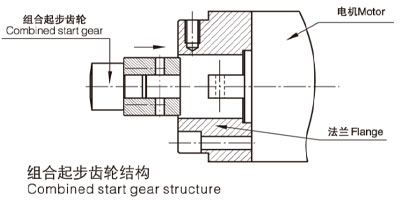

Combined starting structure

Stage1

4.2 ~9

47

64

Stage2

15 ~38

59

72

Stage3

54 ~ 163

78

91
Stage4

196 ~ 691

90

103
Parameter

Parameter

Stage1

Stage2

Stage3

Stage4

Transmission efficiency

0.9

0.81

0.73

0.66

Rated tolerance torque

3N.m

12N.m

20N.m

30N.m

Max momentary tolerance torque

Three times of the rated torque

Operating temperature

-10℃~ +80℃

Operating ambient humidity

20%~85%RH

Recommend input speed

≤4000rpm

Input and output direction

Same direction

Technical Data

Housing material

Meta"Plastic helical

Bearing at output

Ball bearings

Max. Radial load（10mm from flange）

≤200N

Max. shaft axial load

≤100N

Radial play of shaft （near to flange）

≤0.04mm

Axial play of shaft

≤0.3 mm

Backlash at no-load

≤1.5°

Shaft press fit force, max

≤300N

Motor matching scheme

Module

No.of teeth

Stage1

Stage2

Stage3

Stage4

0.8

15

4.2

15

54

196

76

12

5

18

65

233

90

275

325

383

6

9

32

117

420

38

138

502

163

285

691
