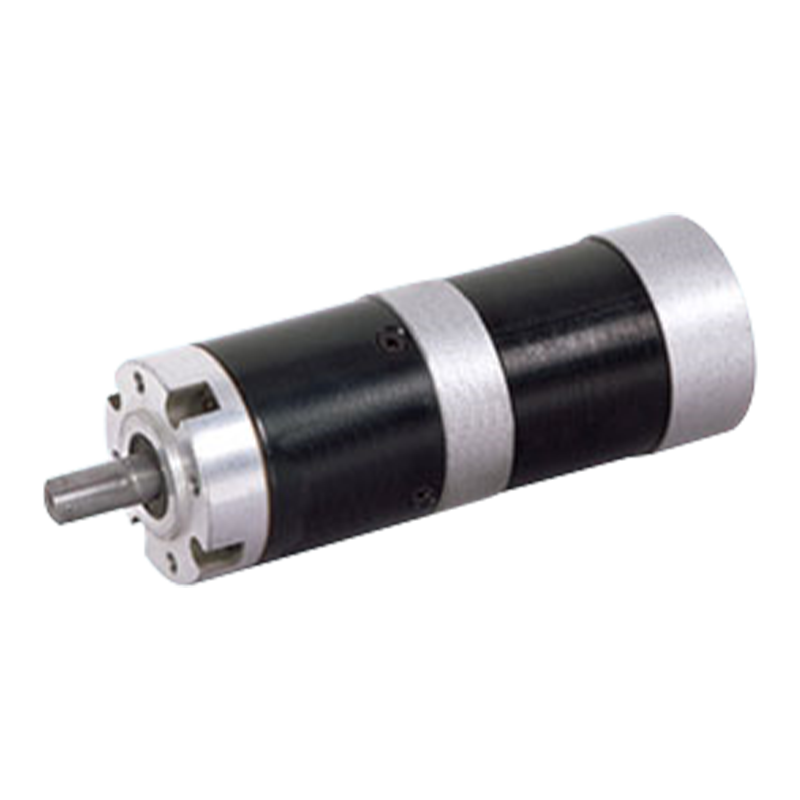

56JX200K/57ZWN75 56mm 12v/24v Dual Voltage Brushless DC Planetary Gear Motor

56JX200K/57ZWN75 56mm 12v/24v Dual Voltage Brushless DC Planetary Gear Motor

The 56JX200K/57ZWN75 is a compact power unit with an outer diameter of 56 mm, suitable for dual voltage environments of 12v/24v, using a metal inner ring design.
The rotor uses a permanent magnet, which is thinner and lighter, and combined with the compact layout of the planetary gear, the overall structure is smaller. The sparkless feature reduces electromagnetic interference and is suitable for precision instruments and industrial environments with long-term continuous operation. High dynamic response and compact design for precise gripping.

  • 56JX200K/57ZWN75 56mm 12v/24v Dual Voltage Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：56JX200K/57ZWN95 56mm 2N.m~20N.m Brushless DC Planetary Gear Motor
NEXT：56JX200K/57ZWN55 56mm 2N.m~20N.m Brushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

56JX200K/57ZWN75

56mm OD Standard Gearbox,(with Oil seal)

Permissible Load Range: 2N.m~20N.m

BLDC Planetary Gear Motor (Ring Gear Material: Metal)

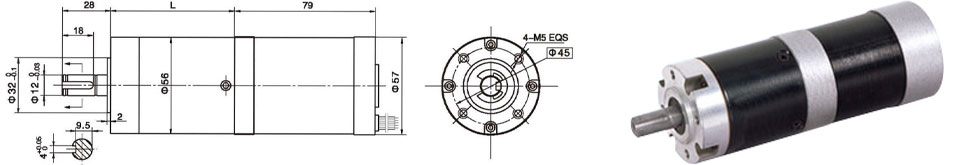

Dimensions

Brushless Motor Technical Data

TYPE

Rated Voltage VDC

No-load Speed r/min

No-load Current A

Rated Speed r/min

Rated Torque mN.m

Output power W

Rated Current A

57ZWN75-2420

24

2000

450

1200

300

40

2.8

57ZWN75-2430

24

3000

400

2000

300

60

4

Brushless Gear Motor Technical Data

Configuration 57ZWN75-2420 Brushless DC Motor (57ZWN75-2420 BLDC Motor)

Reduction ratio

3.6

4.25

13

15

18

32

47

55

65

76

Number of gear trains

1

1

2

2

2

2

3

3

3

3

Length(L)  mm

41

41

53

53

53

53

64

64

64

64

No-load speed  r/min

556

471

154

133

111

63

43

36

31

26

Rated speed rAnin

333

282

92

80

67

38

26

22

18

16

Rated torque N.m

1

1.1

3.2

3.6

4.4

7.8

10

12

14

17

Max. permissible load in a short time N.m

6

6

25

25

25

25

50

50

50

50
Configuration 57ZWN75-2430 Brushless DC Motor (57ZWN75-2430 BLDC Motor)

Reduction ratio

3.6

4.25

13

15

18

32

47

55

65

76

Number of gear trains

1

1

2

2

2

2

3

3

3

3

Length(L)  mm

41

41

53

53

53

53

64

64

64

64

No-load speed  r/min

833

706

231

200

167

94

64

55

46

39

Rated speed rAnin

556

471

154

133

111

63

43

36

31

26

Rated torque N.m

1

1.1

3.2

3.6

4.4

7.8

10

12

14

17

Max. permissible load in a short time N.m

6

6

25

25

25

25

50

50

50

50
