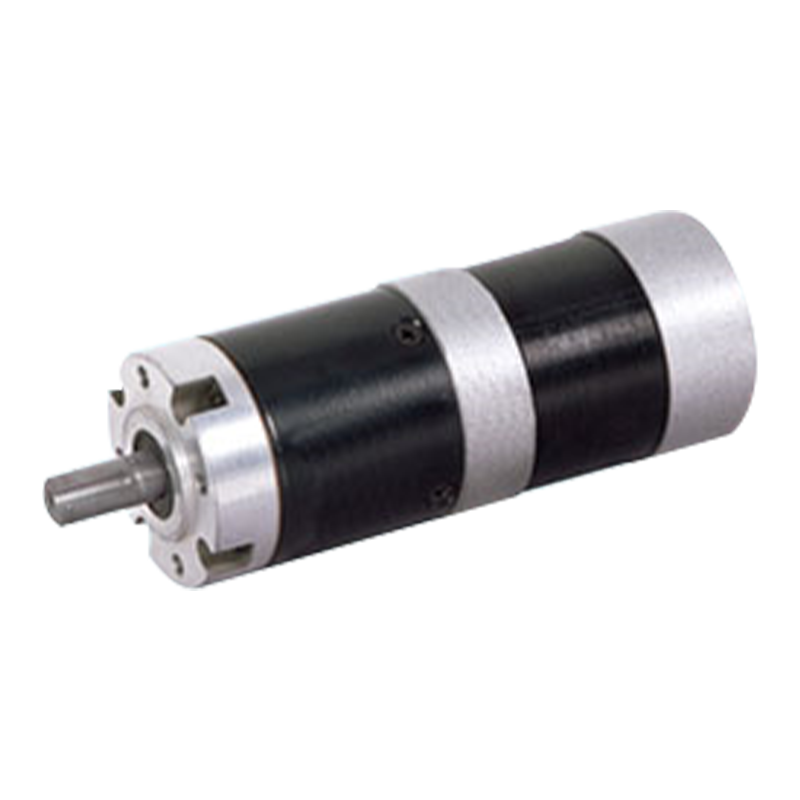

56JX200K/57ZWN55 56mm 2N.m~20N.m Brushless DC Planetary Gear Motor

56JX200K/57ZWN55 56mm 2N.m~20N.m Brushless DC Planetary Gear Motor

56JX200K/57ZWN55 is a planetary reducer with an outer diameter of 56 mm, allowing a torque range of 2N.m~20N.m, and the inner gear ring material is made of metal, suitable for 12v/24v dual voltage environment.
No brush, wear is mainly concentrated in bearings, planetary gear load design to reduce single point wear, the combination of the two significantly reduce mechanical loss, life up to tens of thousands of hours, and maintenance only dust. The brushless motor is resistant to high temperature and electromagnetic interference, the planetary gearbox is well sealed, can adapt to the harsh environment of -40℃ to 100℃, and is widely used in outdoor equipment, industrial automation and high temperature production lines.

  • 56JX200K/57ZWN55 56mm 2N.m~20N.m Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：56JX200K/57ZWN75 56mm 12v/24v Dual Voltage Brushless DC Planetary Gear Motor
NEXT：42JXGT200K/42ZWNP59 42mm Electronic Commutation Brushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

56JX200K/57ZWN55

56mm OD Planetary Gearbox(With Oil Seal),

Permissible Load Range: 2N.m~20N.m

BLDC Planetary Gear Motor (Ring Gear Material: Metal)

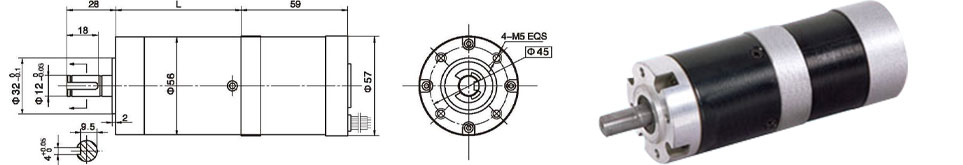

Dimensions

Brushless Motor Technical Data

TYPE

Rated Voltage VDC

No-load Speed r/min

No-load Current A

Rated Speed r/min

Rated Torque mN.m

Output power W

Rated Current A

57ZWN55-2420

24

2000

200

1300

85

10

1.2

57ZWN55-2430

24

3000

400

2250

110

25

2

Brushless Gear Motor Technical Data

Configuration 57ZWN55-2420 Brushless DC Motor (57ZWN55-2420 BLDC Motor)

Reduction ratio

3.6

4.25

13

15

18

32

47

55

65

76

168

198

234

276

326

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)  mm

41

41

53

53

53

53

64

64

64

64

76

76

76

76

76

No-load speed  r/min

556

471

154

133

111

63

43

36

31

26

12

10

8.5

7.2

6.1

Rated speed rAnin

333

282

100

87

72

41

28

24

20

17

7.7

6.6

5.6

4.7

4

Rated torque N.m

0.27

0.32

0.9

1

1.2

2.2

2.9

3.4

4

4.7

9.3

11

13

15

18

Max. permissible load in a short time N.m

25

25

25

25

25

25

50

50

50

50

60

60

60

60

60
Configuration 57ZWN55-2430 Brushless DC Motor (57ZWN55-2430 BLDC Motor)

Reduction ratio

3.6

4.25

13

15

18

32

47

55

65

76

168

198

234

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

Length(L)  mm

41

41

53

53

53

53

64

64

64

64

76

76

76

No-load speed  r/min

833

706

231

200

167

94

64

55

46

39

18

15

13

Rated speed rAnin

625

529

173

150

125

70

48

41

35

30

13

11

9.6

Rated torque N.m

0.4

0.4

1.2

1.3

1.6

2.9

3.8

4.4

5.2

6.1

12

14

17

Max. permissible load in a short time N.m

6

6

25

25

25

25

50

50

50

50

60

60

60
