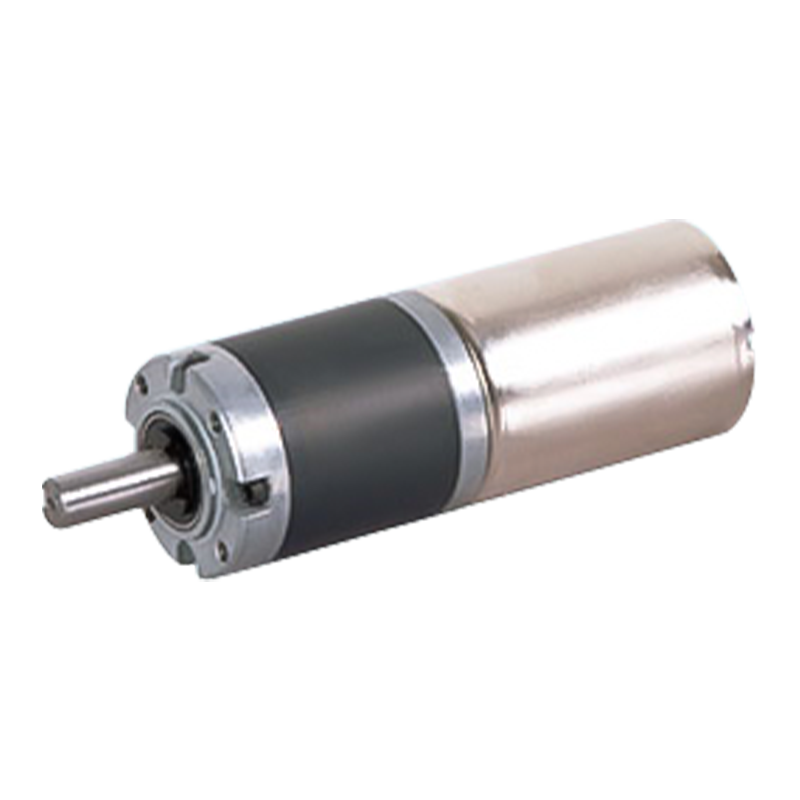

42JXGT200K/42ZWNP59 42mm Electronic Commutation Brushless DC Planetary Gear Motor

42JXGT200K/42ZWNP59 42mm Electronic Commutation Brushless DC Planetary Gear Motor

The 42JXGT200K/42ZWNP59 is a high-performance product designed for high precision and low noise applications. Allowable torque ranges from 2N.m to 15N.m, suitable for a variety of industrial automation equipment and precision machinery.
The use of electronic commutation to replace the traditional mechanical commutation, reducing the friction loss between the brush and the commutator, while the rotor uses permanent magnet material, has a high magnetic energy product, the motor operation efficiency is high, compared with the brush motor can save about 30%-50%. Planetary gear transmission has the characteristics of accurate transmission ratio and high transmission accuracy, through reasonable design of planetary gear train parameters, you can achieve a very accurate transmission ratio, and the transmission error can generally be controlled within ±0.5%-±1%.

  • 42JXGT200K/42ZWNP59 42mm Electronic Commutation Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：56JX200K/57ZWN55 56mm 2N.m~20N.m Brushless DC Planetary Gear Motor
NEXT：42JXGT200K/42ZWNP59 42mm Compact Brushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

42JXGT200K/42ZWNP59(2)

42mm OD Planetary Gearbox,

Permissible Load Range: 2N.m~15N.m

BLDC Planetary Gear Motor (Ring Gear Material: Metal)

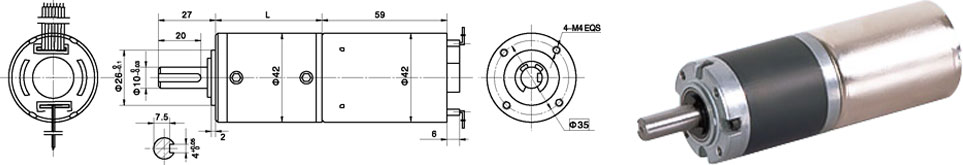

Dimensions

3 phase 10 poles brushless DC motor, with external driver

Brushless Motor Technical Data

TYPE

Number of poles

Number of phase

Rated voltage VDC

No-load speed r/min

Rated Speed r/min

Rated torque mN.m

Rated current A

Output power W

42ZWNP59-2440

10

3

24

4000

3000

68

1.2

21

Brushless Gear Motor Technical Data

Configuration of 42ZWNP59-2440 BLDC Motor (42ZWNP59-2440 BLDC Motor)

Reduction ratio

4.44

17

22

65

83

106

247

316

403

515

Number of gear trains

1

2

2

3

3

3

4

4

4

4

Length(L)  mm

37.5

48

48

58.3

58.3

58.3

68.6

68.6

68.6

68.6

No-load speed  r/min

901

235

182

62

48

38

16

13

10

7.8

Rated speed rAnin

676

176

136

46

36

28

12

9

7

5.8

Rated torque N.m

0.27

0.94

1.2

3.2

4.1

5.3

11

14

18

20

Max. permissible load in a short time N.m

6

25

25

50

50

50

60

60

60

60
