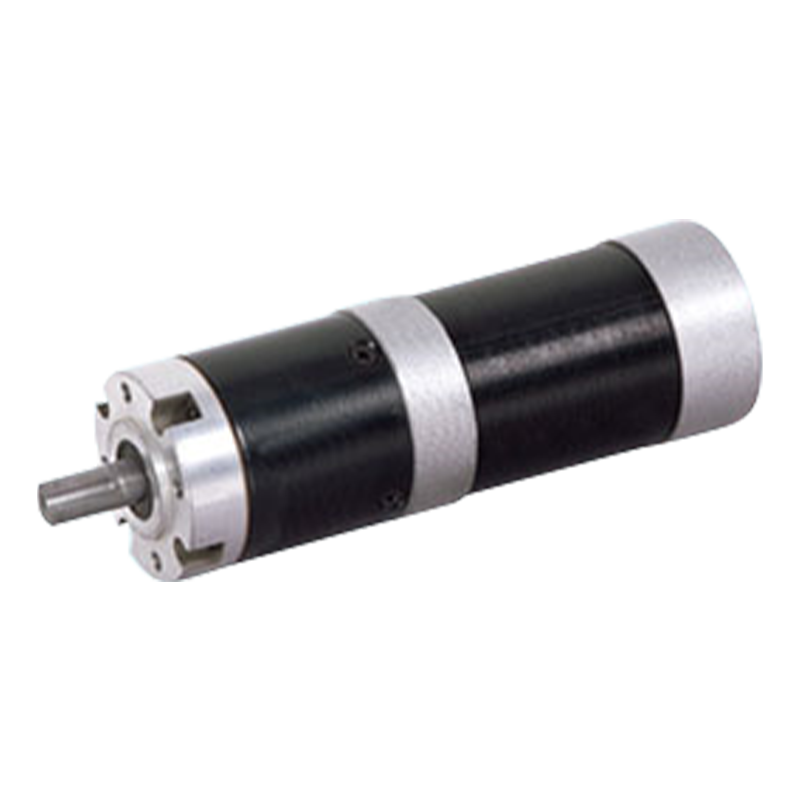

56JX200K/57ZWN95 56mm 2N.m~20N.m Brushless DC Planetary Gear Motor

56JX200K/57ZWN95 56mm 2N.m~20N.m Brushless DC Planetary Gear Motor

The 56JX200K/57ZWN95 is a high-performance product designed for high precision and low noise applications. Allowable torque ranges from 2N.m to 20N.m, suitable for a variety of industrial automation equipment and precision machinery.
Planetary gear transmission structure is compact, gears made of high-strength alloy steel, after quenching, grinding and other processes, with high strength and wear resistance, can withstand greater impact loads, long working life. Planetary gear transmission has the characteristics of accurate transmission ratio and high transmission accuracy, Through reasonable design of planetary gear train parameters, you can achieve a very accurate transmission ratio, and the transmission error can generally be controlled within ±0.5%-±1%.

  • 56JX200K/57ZWN95 56mm 2N.m~20N.m Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：No previous article
NEXT：56JX200K/57ZWN75 56mm 12v/24v Dual Voltage Brushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

56JX200K/57ZWN95

56mm OD Standard Gearbox,(with Oil seal)

Permissible Load Range: 2N.m~20N.m

BLDC Planetary Gear Motor（Ring Gear Material: Metal)

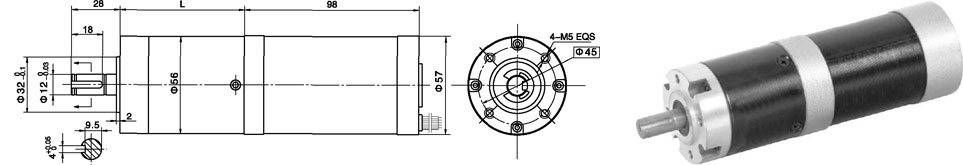

Dimensions

Brushless Motor Technical Data

TYPE

Rated Voltage VDC

No-load Speed r/min

No-load Current A

Rated Speed r/min

Rated Torque mN.m

Output power W

Rated Current A

57ZWN95-2420

24

2000

200

1450

400

60

4

57ZWN95-2430

24

3000

300

2000

400

80

6

Brushless Gear Motor Technical Data

Configuration 57ZWN95-2420 Brushless JDC Motor (57ZWN95-2420 BLDC Motor)

Reduction ratio

3.6

4.25

13

15

18

32

47

55

65

76

Number of gear trains

1

1

2

2

2

2

3

3

3

3

Length(L)  mm

41

41

53

53

53

53

64

64

64

64

No-load speed  r/min

556

471

154

133

111

63

43

36

31

26

Rated speed rAnin

403

341

112

97

81

45

31

26

22

19

Rated torque N.m

1.3

1.5

4.2

4.9

5.8

10

14

16

19

20

Max. permissible load in a short time N.m

6

6

25

25

25

25

50

50

50

50
Configuration 57ZWN95-2430 BLDC Motor (57ZWN95-2430 BLDC Motor)

Reduction ratio

3.6

4.25

13

15

18

32

47

55

65

76

Number of gear trains

1

1

2

2

2

2

3

3

3

3

Length(L)  mm

41

41

53

53

53

53

64

64

64

64

No-load speed  r/min

833

706

231

200

167

94

64

55

46

39

Rated speed rAnin

556

471

154

133

111

63

43

36

31

26

Rated torque N.m

1.3

1.5

4.2

4.9

5.8

10

14

16

19

20

Max. permissible load in a short time N.m

6

6

25

25

25

25

50

50

50

50
