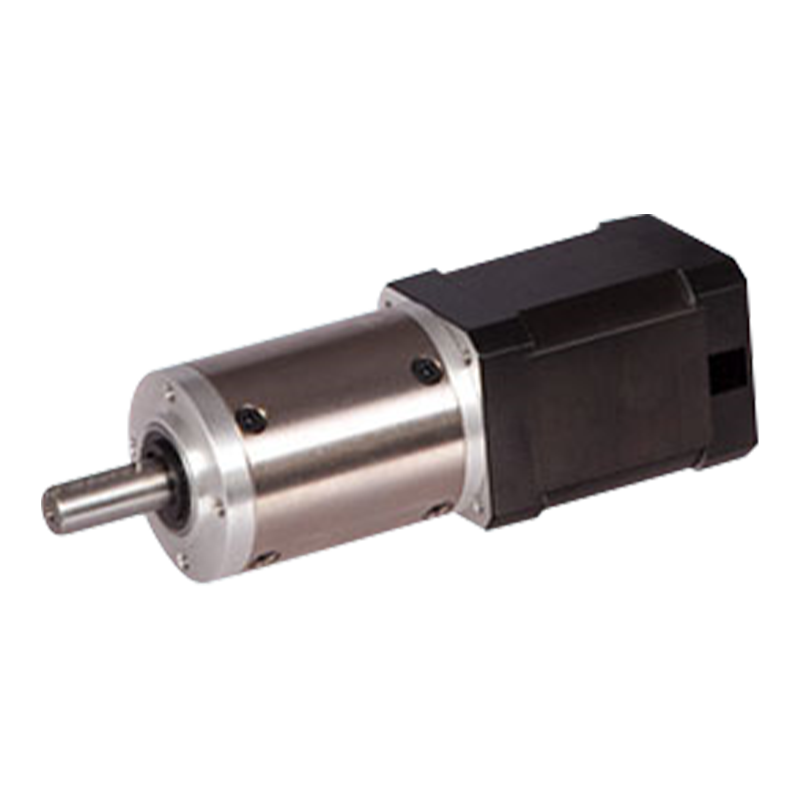

42JXGT200K/42BL60 42mm Low Noise Brushless DC Planetary Gear Motor

42JXGT200K/42BL60 42mm Low Noise Brushless DC Planetary Gear Motor

42JXGT200K/42BL60 is a planetary reducer with an outer diameter of 42 mm, allowing a torque range of 2N.m~20N.m, and the inner gear ring material is made of metal, suitable for a 12v/24v dual voltage environment.
Planetary gear transmission has a high transmission efficiency, generally up to 90%-97%, in the case of transmitting the same power, compared to other transmission methods, the energy loss is less. In the planetary gear drive, the meshing between the planetary wheel and the sun wheel and the tooth ring is relatively smooth, and the high-precision gear processing technology can effectively reduce the transmission noise, and the noise during operation can usually be controlled below 40-60 dB.

  • 42JXGT200K/42BL60 42mm Low Noise Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：42JXGT200K/42ZWN60 42mm 12v/24v Brushless DC Planetary Gear Motor
NEXT：42JXG50K/42BL60 42mm 1N.m~15N.m Brushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

42JXGT200K/42BL60

42mm OD Planetary Gearbox,

Permissible Load Range: 2N.m~20N.m

BLDC Planetary Gear Motor (Fling Gear Material: Metal)

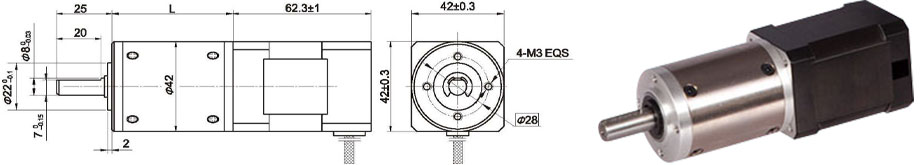

Dimensions

Brushless Motor Technical Data

TYPE

Number of poles

Number of phase

Rated Voltage VDC

No-load Speed r/min

Rated Speed r/min

Rated Torque mN.m

Rated Power W

Reak Torque mN.m

Peak Current A

Line to line resistance ohms

Line to line inductance mH

42BL60-2440

10

3

24

4000

3000

160

50

650

11.8

1.1

0.96

Brushless Gear Motor Technical Data

Configuration 42BL60-2440 Brushless DC Motor (42BL60-2440 BLDC Motor)

Reduction ratio

17

22

65

83

106

247

Number of gear trains

2

2

3

3

3

4

Length(L)  mm

48

48

58.3

58.3

58.3

68.6

No-load speed  r/min

235

182

62

48

38

16

Rated speed rAnin

176

136

46

36

28

12

Rated torque N.m

2.2

2.9

7.6

9.7

12

20

Max. permissible load in a short time N.m

25

25

50

50

50

60
