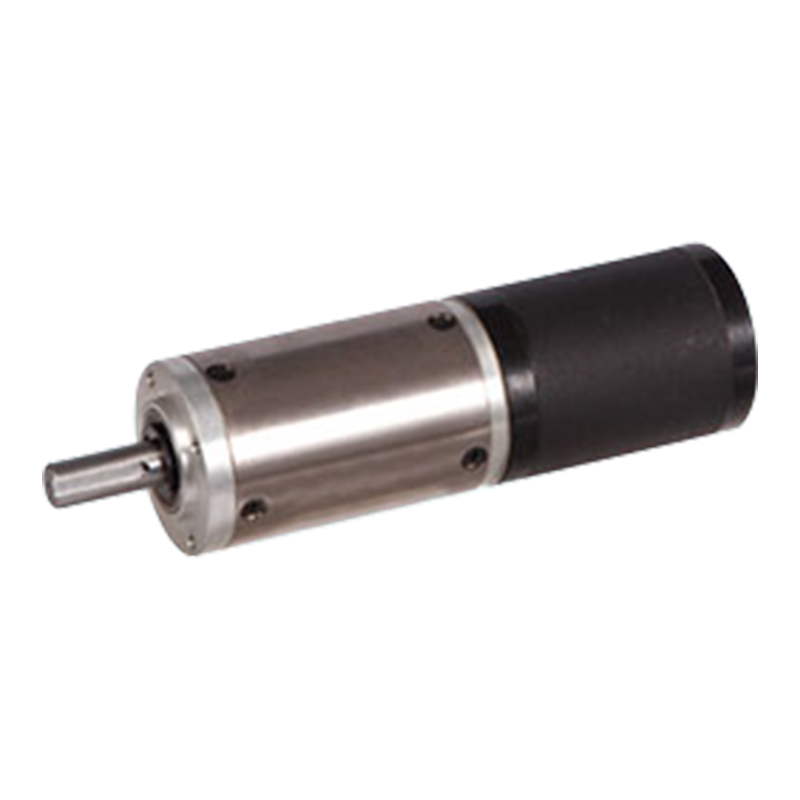

42JXGT200K/42ZWN60 42mm 12v/24v Brushless DC Planetary Gear Motor

42JXGT200K/42ZWN60 42mm 12v/24v Brushless DC Planetary Gear Motor

The 42JXGT200K/42ZWN60 is a compact power unit with an outer diameter of 42 mm, suitable for dual voltage environments of 12v/24v, using a metal inner ring design.
In gear transmission, the meshing between the planetary wheel and the sun wheel and the tooth ring is relatively smooth, and the high-precision gear processing technology can effectively reduce the transmission noise, and the noise during operation can usually be controlled below 40-60 decibels. The planetary gear transmission structure is compact, the gear is made of high-strength alloy steel, after quenching, grinding and other processes, with high strength and wear resistance, can withstand large impact loads, long working life.

  • 42JXGT200K/42ZWN60 42mm 12v/24v Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：42JXGT200K/42ZWNP59 42mm Compact Brushless DC Planetary Gear Motor
NEXT：42JXGT200K/42BL60 42mm Low Noise Brushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

42JXGT200K/42ZWN60

42mm OD Planetary Gearbox,

Permissible Load Range: 2N.m~20N.m

BLDC Planetary Gear Motor (Ring Gear Material: Metal)

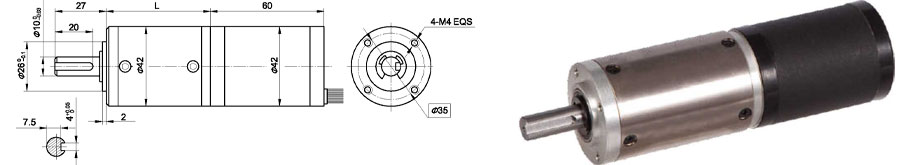

Dimensions

Brushless Motor Technical Data

TYPE

Number of poles

Number of phase

Rated Voltage VDC

No-load Speed r/min

Rated Speed r/min

Rated Torque mN.m

Rated Power W

Reak Torque mN.m

Peak Current A

Line to line resistance ohms

Line to line inductance mH

42ZWN60-2430

8

3

24

3000

2100

50

11

150

2.6

6

6.4

Brushless Gear Motor Technical Data

Configuration 42ZWN60-2430 Brushless DC Motor (42ZWN60-2430 BLDC Motor)

Reduction ratio

65

83

83

247

247

403

515

944

Number of gear trains

3

3

3

4

4

4

4

5

Length(L)  mm

58.3

58.3

58.3

68.6

68.6

68.6

68.6

78.9

No-load speed  r/min

46

36

36

12

12

7.4

5.8

3.2

Rated speed rAnin

32

25

25

9

9

5.2

4.1

2.2

Rated torque N.m

2.4

3

3

8

8

13

17

20

Max. permissible load in a short time N.m

50

50

50

60

60

60

60

60

Wire Diagram

U

V

W

Vcc

Ha

Hb

He

GND

Red

Brown

Black

Blue

Yellow

Brown

Red

Green

22AWG UL1007

26AWG UL1007
