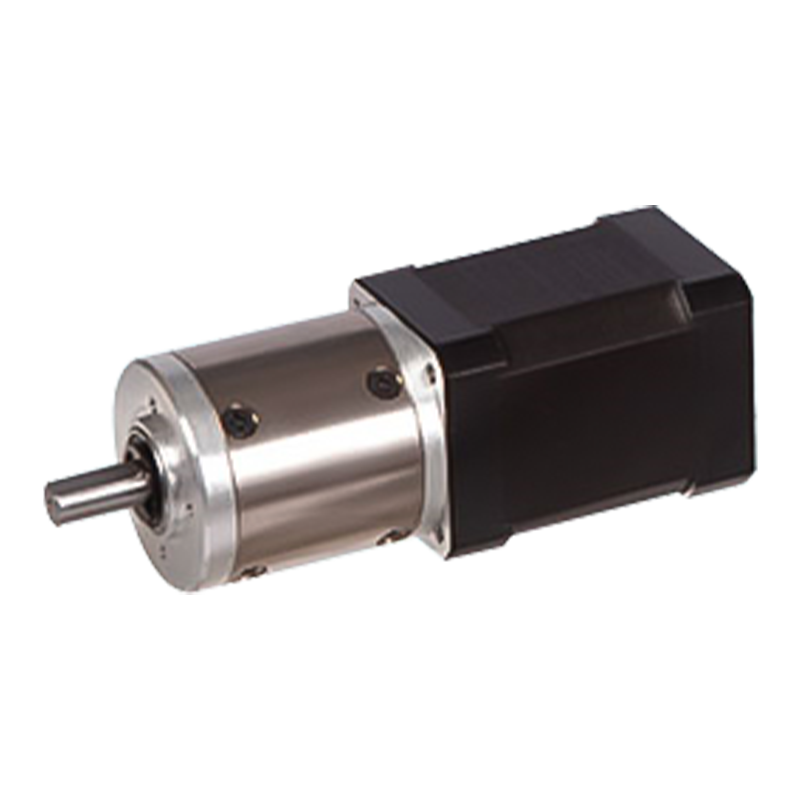

42JXG50K/42BL60 42mm 1N.m~15N.m Brushless DC Planetary Gear Motor

42JXG50K/42BL60 42mm 1N.m~15N.m Brushless DC Planetary Gear Motor

The 42JXG50K/42BL60 is a high-performance product designed for high precision and low noise applications. The allowable torque range is from 1N.m to 15N.m, suitable for various industrial automation equipment and precision machinery.
Brushless motor high temperature resistance, anti-electromagnetic interference, planetary gearbox seal is good, can adapt to -40℃ to 100℃ harsh environment, widely used in outdoor equipment, industrial automation and high temperature production line. In the planetary gear drive, the meshing between the planetary wheel and the sun wheel and the tooth ring is relatively smooth, and the high-precision gear processing technology can effectively reduce the transmission noise, and the noise during operation can usually be controlled below 40-60 dB.

  • 42JXG50K/42BL60 42mm 1N.m~15N.m Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：42JXGT200K/42BL60 42mm Low Noise Brushless DC Planetary Gear Motor
NEXT：42JXG50K/42BL40 42mm Fast Response Brushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

42JXG50K/42BL60

42mm OD Planetary Gearbox,

Permissible Load Range: 1N.m~15N.m

BLDC Planetary Gear Motor (Ring Gear Material: Metal)

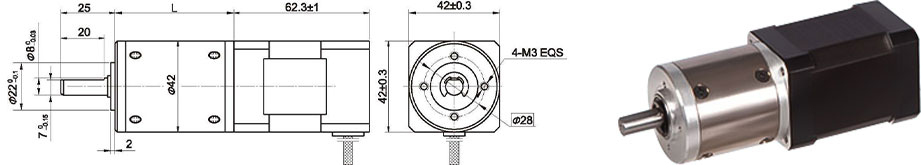

Dimensions

Brushless Motor Technical Data

TYPE

Number of poles

Number of phase

Rated Voltage VDC

No-load Speed r/min

Rated Speed r/min

Rated Torque mN.m

Rated Power W

Reak Torque mN.m

Peak Current A

Line to line resistance ohms

Line to line inductance mH

42BL60-2440

10

3

24

4000

3000

160

50

650

11.8

1.1

0.96

Brushless Gear Motor Technical Data

Configuration 42BL60-2440 BLDC Motor without DYNAMIC U(42BL60-2440 BLDC Motor)

Reduction ratio

3.8

4.9

15

19

24

Number of gear trains

1

1

2

2

2

Length(L)  mm

35.2

35.2

45.7

45.7

45.7

No-load speed  r/min

1047

820

267

211

167

Rated speed rAnin

785

615

200

158

125

Rated torque N.m

0.55

0.7

1.9

2.5

3

Max. permissible load in a short time N.m

1.5

1.5

6

6

6
