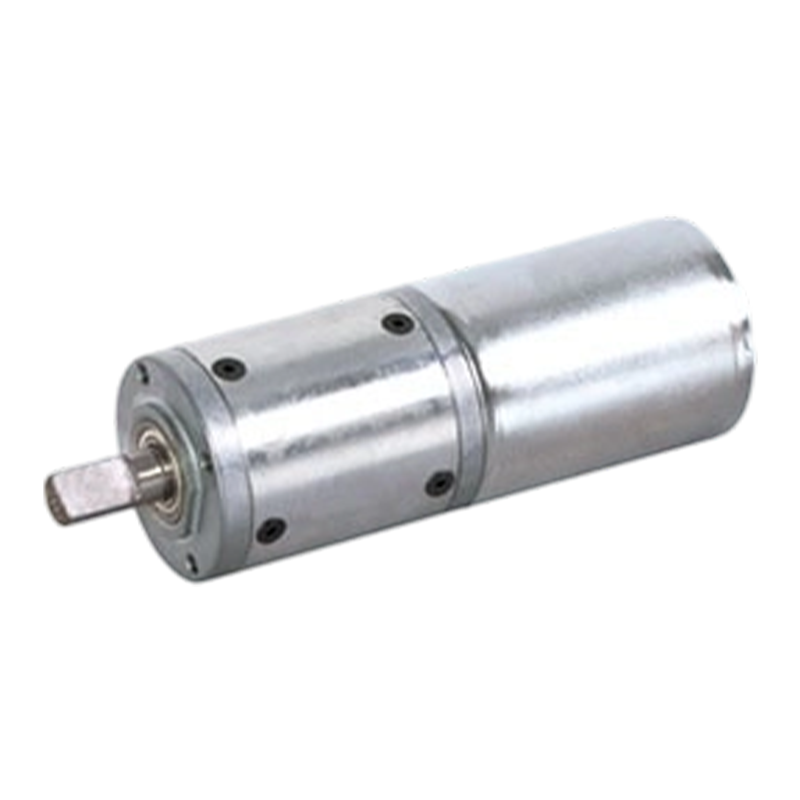

42JX150K/42ZWNP66 42mm Aluminum Alloy Shell Brushless DC Planetary Gear Motor

42JX150K/42ZWNP66 42mm Aluminum Alloy Shell Brushless DC Planetary Gear Motor

The 42JX150K/42ZWNP66 is a high-performance product designed for high precision and low noise applications. Allowable torque ranges from 2N.m to 15N.m, suitable for a variety of industrial automation equipment and precision machinery.
Planetary gear transmission has the characteristics of accurate transmission ratio and high transmission accuracy. By reasonably designing the parameters of planetary gear train, very accurate transmission ratio can be achieved, and the transmission error can generally be controlled within ±0.5%-±1%. The stator winding of the brushless motor is usually wound with multiple strands of thin wire, the end of the winding is short, the heat dissipation area is large, and the motor shell is generally made of aluminum alloy and other materials with good thermal conductivity, which can effectively dissipate the heat generated inside the motor.

  • 42JX150K/42ZWNP66 42mm Aluminum Alloy Shell Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：42JX150K/42ZWNP66 42mm 2N.m~15N.mBrushless DC Planetary Gear Motor
NEXT：42JX150K/42ZWNP59 42mm 3 Phase 10 Pole Brushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

42JX150K/42ZWNP66(1)

42mm OD Planetary Gearbox,

Permissible Load Range: 2N.m~15N.m

BLDC Planetary Gear Motor (Ring Gear Material: Metal)

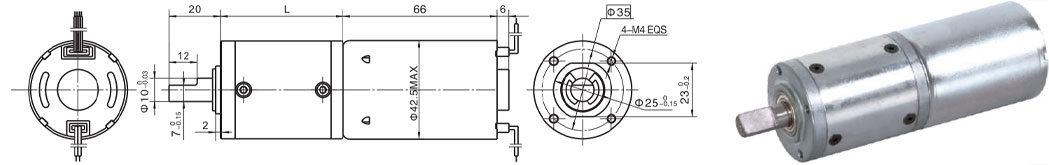

Dimensions

3-phase 10-pole brushless DC motor, with built-in driver

Brushless Motor Technical Data

TYPE

Number of poles

Number of phase

Rated voltage VDC

No-load speed r/min

Rated Speed r/min

Rated torque mN.m

Rated current A

Output power W

42ZWNP66-2430

10

3

24

3000

2550

80

1.1

21

Brushless Gear Motor Technical Data

Configuration of 42ZWNP66-2430 BLDC Motor (42ZWNP66-2430 BLDC Motor)

Reduction ratio

3.5

14

21

49

84

104

126

156

172

Number of gear trains

1

2

2

3

3

3

3

4

4

Length(L)  mm

32.5

39.2

39.2

46

46

46

46

52.5

52.5

No-load speed  r/min

857

214

143

61

36

29

24

19

17

Rated speed rAnin

728

182

121

52

30

24

20

16

15

Rated torque N.m

0.25

0.9

1.3

2.8

4.9

6

7.3

8.2

9

Max. permissible load in a short time N.m

3

12

12

25

25

25

25

30

30
