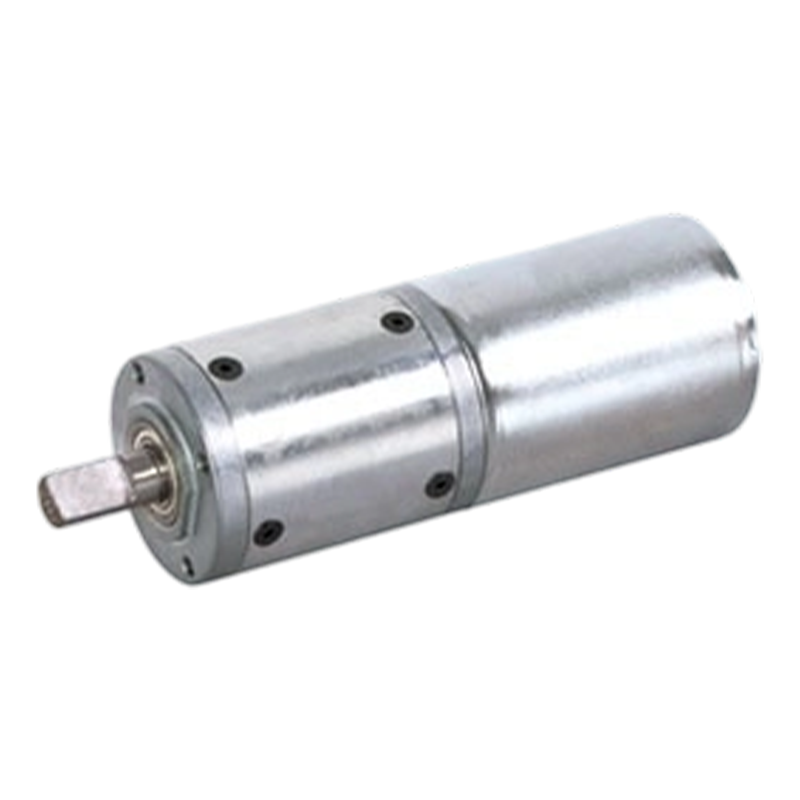

42JX150K/42ZWNP59 42mm 3 Phase 10 Pole Brushless DC Planetary Gear Motor

42JX150K/42ZWNP59 42mm 3 Phase 10 Pole Brushless DC Planetary Gear Motor

42JX150K/42ZWNP59 is a planetary reducer with an outer diameter of 42 mm, using a metal inner ring material, 3 phase 10 poles, and an external drive.
When running, there is no friction and electric spark between the brush and the commutator, which reduces the mechanical noise and electromagnetic noise. The brushless motor has no easily worn parts such as brushes and commutators, which reduces the motor failure caused by brush wear, improves the reliability and service life of the motor, and its average trouble-free operation time can reach 20,000-30,000 hours.

  • 42JX150K/42ZWNP59 42mm 3 Phase 10 Pole Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：42JX150K/42ZWNP66 42mm Aluminum Alloy Shell Brushless DC Planetary Gear Motor
NEXT：42JX150K/42ZWNP59 42mm Brushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

42JX150K/42ZWNP59(2)

42mm OD Planetary Gearbox,

Permissible Load Range: 2N.m~15N.m

BLDC Planetary Gear Motor (Ring Gear Material: Metal)

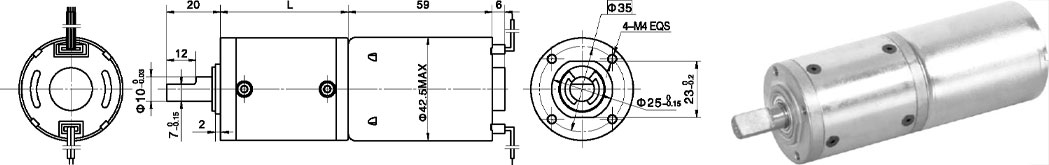

Dimensions

3 phase 10 poles brushless DC motor, with external driver

Brushless Motor Technical Data

TYPE

Number of poles

Number of phase

Rated voltage VDC

No-load speed r/min

Rated Speed r/min

Rated torque mN.m

Rated Power W

Rated current mA

42ZWNP59-2440

10

3

24

4000

3000

68

1.2

21

Brushless Gear Motor Technical Data

Configuration of 42ZWNP59-2440 BLDC Motor (42ZWNP59-2440 BLDC Motor)

Reduction ratio

3.5

14

21

49

84

104

126

172

294

Number of gear trains

1

2

2

3

3

3

3

4

4

Length(L)  mm

32.5

39.2

39.2

46

46

46

46

52.5

52.5

No-load speed  r/min

1143

286

190

82

48

38

32

23

14

Rated speed rAnin

857

214

143

61

36

29

24

17

10

Rated torque N.m

0.21

0.77

1.1

2.4

4.1

5.1

6.2

7.7

13

Max. permissible load in a short time N.m

3

12

12

25

25

25

25

30

30
