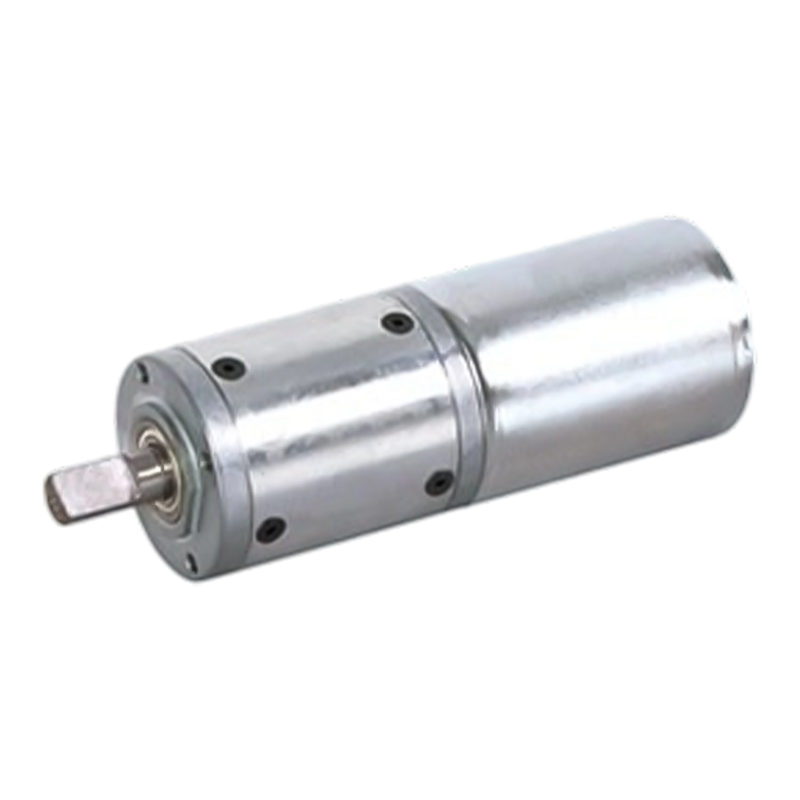

42JX150K/42ZWNP59 42mm Brushless DC Planetary Gear Motor

This high-torque 42mm Brushless DC Planetary Gear Motor (42JX150K/42ZWN59) features a metal ring gear design and a compact planetary gearbox structure that delivers continuous output torque ranging from 2N·m to 15N·m. Its built-in driver simplifies installation and wiring, while the three-phase brushless configuration ensures smooth operation, maintaining high efficiency and low noise under various load conditions.

With a 42mm outer diameter, this motor incorporates robust gears and precise assembly techniques for reliability over extended operational periods. The metal ring gear enhances wear resistance and impact strength, making it well-suited for applications such as industrial automation, robotics, medical equipment, and other fields demanding high precision and stable power delivery. A wide range of gear ratios and multiple customization options provide greater flexibility to accommodate diverse requirements.

The planetary gearbox’s high transmission efficiency and the brushless motor’s low-maintenance characteristics enable sustained high-performance operation under continuous load. The integrated driver offers simplified control, reducing the need for external driver modules and speeding up both commissioning and system integration. Its stable speed regulation and exceptional torque performance give it a strong edge in precision motion control, offering reliable solutions for equipment that requires accurate power output.
