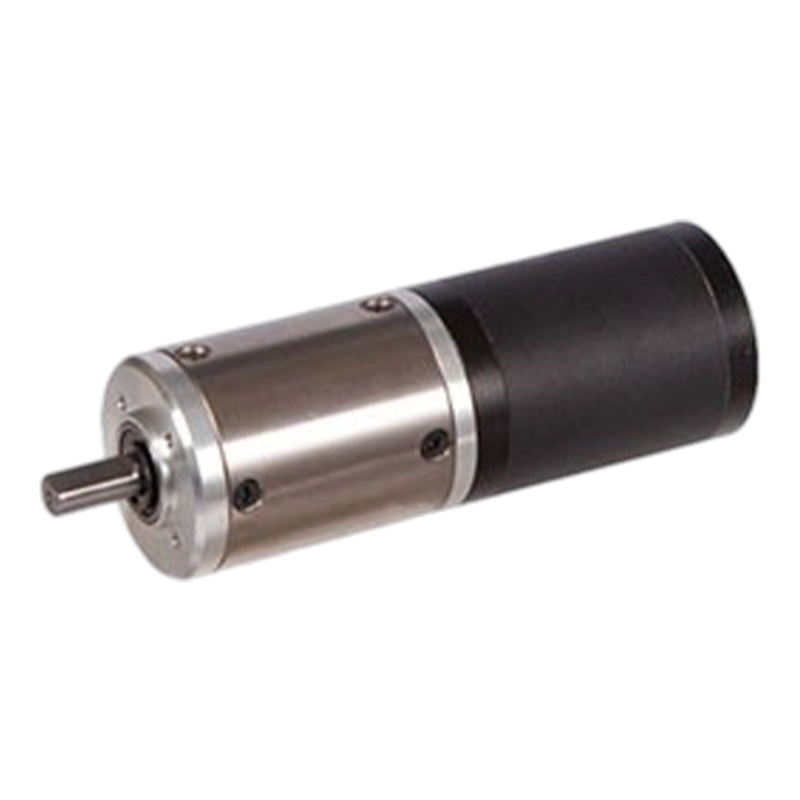

42JX150K/42ZWN60 42mm 2N.m~15N.m Brushless DC Planetary Gear Motor

42JX150K/42ZWN60 42mm 2N.m~15N.m Brushless DC Planetary Gear Motor

The 42JX150K/42ZWN60 is a high-performance 42mm planetary gearbox designed for a wide range of applications requiring precise torque control. The allowable torque range is 2N.m~15N.m, with transmission efficiency and durability.
No mechanical reversing friction sound, planetary gear multi-tooth mesh to reduce vibration, the two work together to make the running noise ≤50dB(A), suitable for medical equipment, service robots, and other silent scenes. The brushless motor uses electronic commutation to replace the traditional mechanical commutation, reducing the friction loss between the brush and the commutator, while the rotor uses permanent magnet materials, has a high magnetic energy product, the motor operation efficiency is high, compared with the brush motor can save about 30% to 50%.

  • 42JX150K/42ZWN60 42mm 2N.m~15N.m Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：42JX150K/42ZWNP59 42mm Brushless DC Planetary Gear Motor
NEXT：42JX150K/42BL60 42mm Built-in Driver Brushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

42JX150K/42ZWN60

42mm OD Planetary Gearbox,

Permissible Load Range: 2N.m~15N.m

BLDC Planetary Gear Motor (Ring Gear Material: Metal)

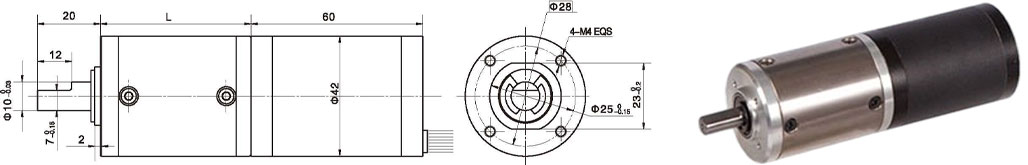

Dimensions

Brushless Motor Technical Data

TYPE

Number of poles

Number of phases

Rated Voltage VDC

No-load Speed r/min

Rated Speed r/min

Rated Torque mN.m

Rated Power W

Reak Torque mN.m

Peak Current A

Line to line resistance ohms

Line to line inductance mH

42ZWN60-2420

8

3

24

2000

1400

40

5.8

180

1.5

11.9

15

42ZWN60-2430

8

3

24

3000

2100

50

11

150

2.6

6

6.4

Brushless Gear Motor Technical Data

Configuration 42ZWN60-2420 Brushless DC Motor (42ZWN60-2420 BLDC Motor)

Reduction ratio

3.5

14

21

49

84

104

126

172

294

Number of gear trains

1

2

2

3

3

3

3

4

4

Length(L)  mm

32.5

39.2

39.2

46

46

46

46

52.5

52.5

No-load speed  r/min

571

142

95

41

24

19

16

12

7

Rated speed rAnin

400

100

66

28

16

13

11

8

4.5

Rated torque N.m

0.12

0.45

0.68

1.4

2.4

3

3.6

4.5

7.7

Max. permissible load in a short time N.m

3

12

12

25

25

25

25

30

30
Configuration 42ZWN60-2430 Brushless DC Motor (42ZWN60-2430 BLDC Motor)

Reduction ratio

3.5

14

21

49

84

104

126

172

294

Number of gear trains

1

2

2

3

3

3

3

4

4

Length(L)  mm

32.5

39.2

39.2

46

46

46

46

52.5

52.5

No-load speed  r/min

857

214

143

61

36

29

24

17

10

Rated speed rAnin

600

150

100

43

25

20

17

12

7

Rated torque N.m

0.15

0.56

0.8

1.9

3.4

3.8

5.1

5.6

9.7

Max. permissible load in a short time N.m

3

12

12

25

25

25

25

30

30
