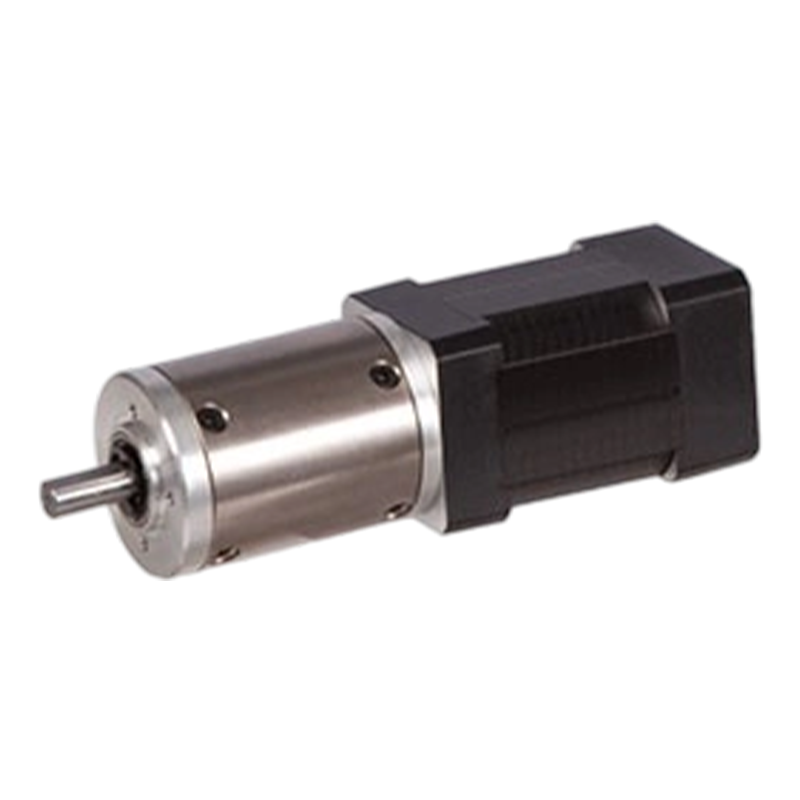

42JX150K/42BL60 42mm Built-in Driver Brushless DC Planetary Gear Motor

42JX150K/42BL60 42mm Built-in Driver Brushless DC Planetary Gear Motor

The 42JX150K/42BL60 is a compact 42mm diameter power unit that uses a brushless DC motor combined with a built-in drive. Equipped with a high-precision planetary gearbox, it can operate stably under a variety of harsh conditions and is suitable for applications requiring high power and accuracy.
The brushless motor rotor uses a permanent magnet, which is thinner and lighter, and combined with the compact layout of the planetary gear, the overall structure is smaller. The sparkless feature reduces electromagnetic interference and is suitable for precision instruments and industrial environments with long-term continuous operation. High dynamic response and compact design for precise gripping.

  • 42JX150K/42BL60 42mm Built-in Driver Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：42JX150K/42ZWN60 42mm 2N.m~15N.m Brushless DC Planetary Gear Motor
NEXT：37JB10K/36ZWNP40 37mm 3 Phase 10 Pole Brushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

42JX150K/42BL60

42mm OD Planetary Gearbox,

Permissible Load Range: 1N.m~1.5N.m

BLDC Planetary Gear Motor (Ring Gear Material: Metal and Powder Metal)

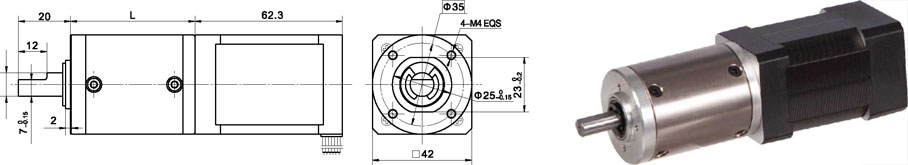

Dimensions

Ring gear can be selected within the two materials : Powder metal (Type: 42JXF150K) , Metal (Type: 42JXE150K)

Brushless Motor Technical Data

TYPE

Number of poles

Number of phase

Rated Voltage VDC

No-load Speed r/min

Rated Speed r/min

Rated Torque mN.m

Rated Power W

Reak Torque mN.m

Peak Current A

Line to line resistance in ohms

Line to line inductance mH

42BL60-2440

10

3

24

4000

3000

160

50

650

11.8

1.1

0.96

Brushless Gear Motor Technical Data

Configuration 42BL60-2440 Brushless DC Motor (42BLS60-2440 BLDC Motor)

Reduction ratio

3.5

14

21

49

84

104

126

Number of gear trains

1

2

2

3

3

3

3

Length(L)  mm

32.5

39.2

39.2

46

46

46

46

No-load speed  r/min

1143

286

190

82

48

38

32

Rated speed rAnin

857

214

143

61

36

29

24

Rated torque N.m

0.5

1.8

2.7

5.7

9.8

12

14.7

Max. permissible load in a short time N.m

3

12

12

25

25

25

25
