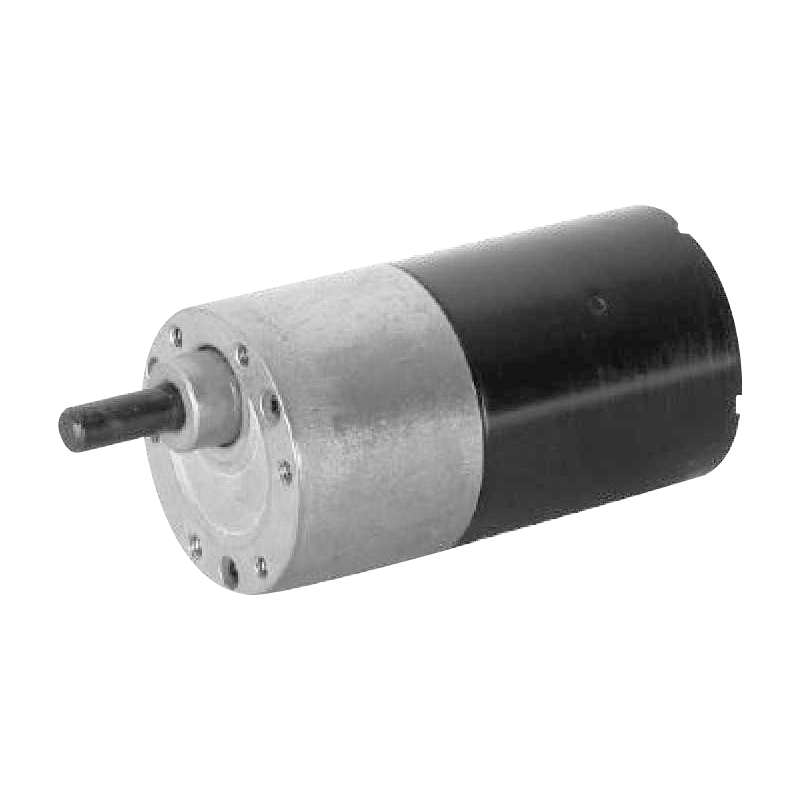

37JB10K/36ZWNP40 37mm 3 Phase 10 Pole Brushless DC Planetary Gear Motor

37JB10K/36ZWNP40 37mm 3 Phase 10 Pole Brushless DC Planetary Gear Motor

Product 37JB10K/36ZWNP40 is an integral gear reducer with an outer diameter of 37 mm, suitable for 12v/24v dual voltage environment, 3 phase 10 pole, built-in driver.
Combined with the different transmission ratios of planetary gear transmission, the speed regulation range of the motor can be further expanded to meet the speed requirements of different working occasions. The brushless motor does not produce electrical spark and electromagnetic interference during operation, and the electromagnetic pollution to the surrounding environment is small. The use of environmentally friendly lubrication grease, in the process of use will not cause pollution to the environment, in line with the requirements of modern industry for environmental protection.

  • 37JB10K/36ZWNP40 37mm 3 Phase 10 Pole Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：42JX150K/42BL60 42mm Built-in Driver Brushless DC Planetary Gear Motor
NEXT：36JXE30K/36ZWNP57 3 Phase 4 Pole Brushless Planetary Gear Motor

+86 0579-86817938-836

[email protected]

37JB10K/36ZWNP40

37mm OD Planetary Gearbox,

Permissible Load Range: 0.6N · m

BLDC Planetary Gear Motor

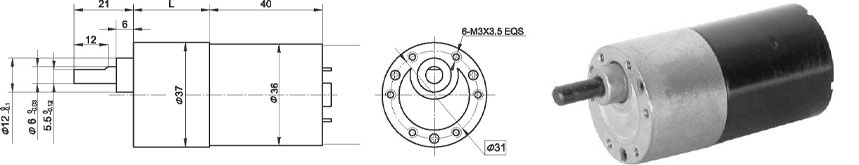

Dimensions

3 phase 10 poles brushless DC motor, with built-in driver

Brushless Motor Technical Data

TYPE

Number of poles

Number of phase

Rated voltage VDC

No-load speed r/min

No-load current mA

Rated torque mN.m

Rated speed r/min

Rated current mA

Rated Power W

36ZWNP40-1240

4

3

12

4000

400

15

3000

850

4.7

36ZWNP40-2440

4

3

24

4000

200

20

3000

550

6.3

Brushless Gear Motor Technical Data

Configuration 36ZWNP40-1240 BLDC Motor (36ZWNP40-1240 BLDC Motor)

Reduction ratio

4.44

17

22

65

83

106

247

316

403

515

Number of gear trains

1

2

2

3

3

3

4

4

4

4

Length(L)  mm

37.5

48

48

58.3

58.3

58.3

68.6

68.6

68.6

68.6

No-load speed  r/min

901

235

182

62

48

38

16

13

10

7.8

Rated speed rAnin

676

176

136

46

36

28

12

9

7

5.8

Rated torque N.m

0.27

0.94

1.2

3.2

4.1

5.3

11

14

18

20

Max. permissible load in a short time N.m

6

25

25

50

50

50

60

60

60

60
Configuration 36ZWNP40-2440 BLDC Motor (36ZWNP40-2440 BLDC Motor)

Reduction ratio

6

10

18

30

50

75

100

150

200

250

Number of gear trains

2

2

3

3

4

4

4

5

5

5

Length(L) mm

21.5

21.5

26.5

26.5

29

29

29

31.5

31.5

31.5

No-load speed     r/min

667

400

222

133

80

53

40

27

20

15

Rated speed       r/min

500

300

167

100

60

40

30

20

15

12

Rated torque        N.m

0.1

0.16

0.26

0.44

0.65

0.98

1

1

1

1

Max. permissible load in a short time N.m

0.5

0.5

1.5

1.5

3

3

3

3

3

3

Direction of rotation

CCW

CCW

CW

CW

CCW

CCW

CCW

CW

CW

CW
