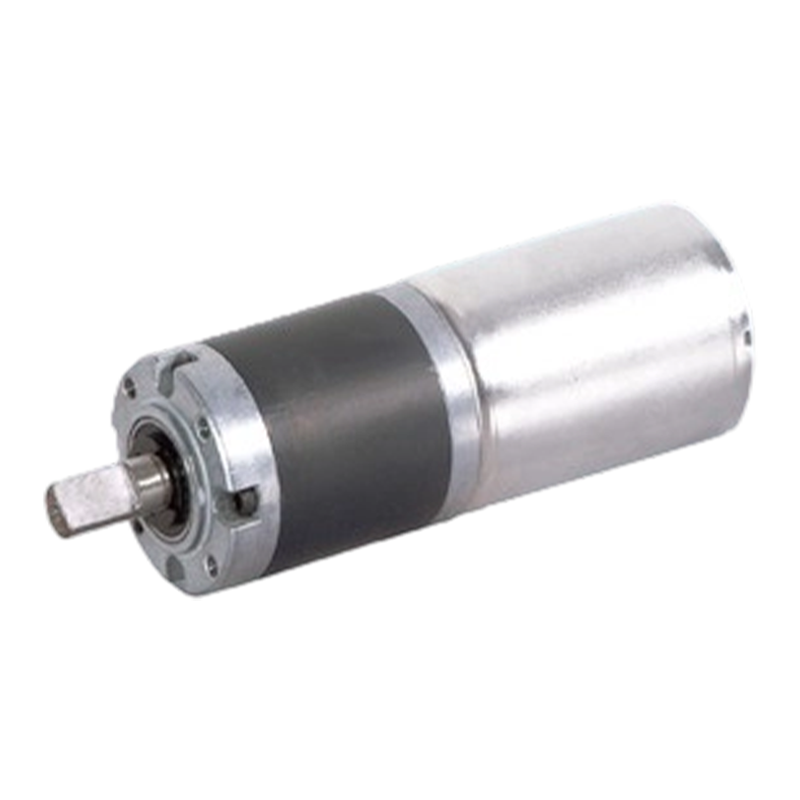

36JXE30K/36ZWNP57 3 Phase 4 Pole Brushless Planetary Gear Motor

36JXE30K/36ZWNP57 3 Phase 4 Pole Brushless Planetary Gear Motor

Brushless DC planetary gear motor 36JXE30K/36ZWNP57 allows torque range of 0.3N.m~3N.m, outer diameter of 36 mm, 3 phase 4 pole, external driver.
The planetary gear transmission has the characteristics of large power density, and can transmit large power in a small space, making the overall structure of the brushless planetary gear motor more compact, and the volume and weight are greatly reduced compared with other transmission methods of the motor, which is easy to install and use. By changing the output frequency and voltage of the driver, the brushless motor can achieve a wide range of speed regulation, and the speed regulation can generally reach 1:1000-1:500, or even higher.

  • 36JXE30K/36ZWNP57 3 Phase 4 Pole Brushless Planetary Gear Motor
Download Product Inquiry
PREV：37JB10K/36ZWNP40 37mm 3 Phase 10 Pole Brushless DC Planetary Gear Motor
NEXT：36JXE30K/36ZWNP57 High-Performance Brushless Planetary Gear Motor

+86 0579-86817938-836

[email protected]

36JXE30K/36ZWNP57(2)

36mm OD Planetary Gearbox,

Permissible Load Range: 0.3N.m

BLDC Planetary Gear Motor (Ring Gear Material: Metal and Powder Metal)

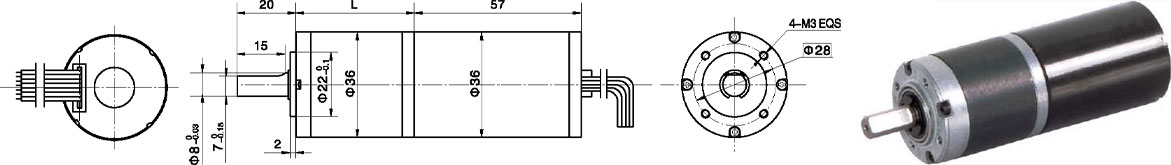

Dimensions

3 phase 4 poles brushless DC motor, with external driver

Ring gear can be selected within the two materials: Powder metal (Type: 36JXF30K) , Metal (Type: 36JXE30K)

Brushless Motor Technical Data

TYPE

Number of poles

Number of phase

Rated voltage VDC

No-load speed r/min

Rated Speed r/min

Rated torque mN.m

Rated Power W

Rated current mA

36ZWNP57-2450

4

3

24

5000

4200

40

18

257

Brushless Gear Motor Technical Data

Configuration 36ZWNP57-2450 Brushless DC Motor (36ZWNP57-2450 BLDC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

Number of gear trains

1

1

2

2

2

3

3

3

3

4

Length(L)  mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

No-load speed  r/min

1348

965

357

263

185

98

70

50

36

26

Rated speed rAnin

1132

811

300

221

156

82

59

42

30

22

Rated torque N.m

0.13

0.19

0.45

0.62

0.87

1.5

2.1

2.9

3

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9
