36JXE30K/36ZWNP57 High-Performance Brushless Planetary Gear Motor

36JXE30K/36ZWNP57 High-Performance Brushless Planetary Gear Motor

The 36JXE30K/36ZWNP57 High-Performance Brushless Planetary Gear Motor is a 36 mm diameter compact power solution, featuring a 4-pole brushless DC motor with an integrated driver. It is equipped with a precision planetary gearbox delivering up to 3 N·m of rated torque, ensuring stable operation in demanding environments where power and accuracy are essential.
This motor stands out for its low noise and high efficiency, offering a wide range of gear ratios to meet various speed and torque requirements. Built with robust metal gears for enhanced durability and service life, it is ideal for robotics, automation systems, medical devices, and smart home applications, providing a dependable motion control solution for diverse industries.

  • 36JXE30K/36ZWNP57 High-Performance Brushless Planetary Gear Motor
Download Product Inquiry
PREV：36JXE30K/36ZWNP57 3 Phase 4 Pole Brushless Planetary Gear Motor
NEXT：36JXE30K/36ZWNP40 36mm Efficient Heat Dissipation Brushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

36JXE30K/36ZWNP57(1)

36mm OD Planetary Gearbox,

Permissible Load Range: 0.3N.m

BLDC Planetary Gear Motor (Fling Gear Material: Metal and Powder Metal)

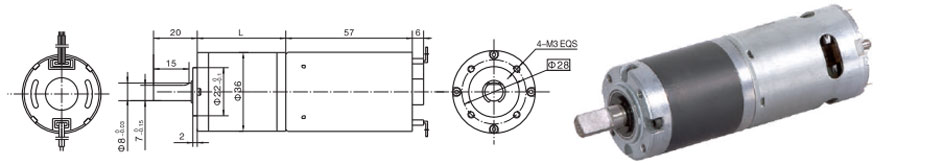

Dimensions

3-phase 4-pole brushless DC motor, with built-in driver

Ring gear can be selected within the two materials: Powder metal (Type: 36JXF30K) , Metal (Type: 36JXE30K)

Brushless Motor Technical Data

TYPE

Number of poles

Number of phases

Rated voltage VDC

No-load speed r/min

Rated Speed r/min

Rated torque mN.m

Rated Power W

Rated current mA

36ZWNP57-2450

4

3

24

5000

4200

40

18

257

Brushless Gear Motor Technical Data

Configuration 36ZWNP57-2450 Brushless DC Motor (36ZWNP57-2450 BLDC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

Number of gear trains

1

1

2

2

2

3

3

3

3

4

Length(L)  mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

No-load speed  r/min

1348

965

357

263

185

98

70

50

36

26

Rated speed rAnin

1132

811

300

221

156

82

59

42

30

22

Rated torque N.m

0.13

0.19

0.45

0.62

0.87

1.5

2.1

2.9

3

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9
