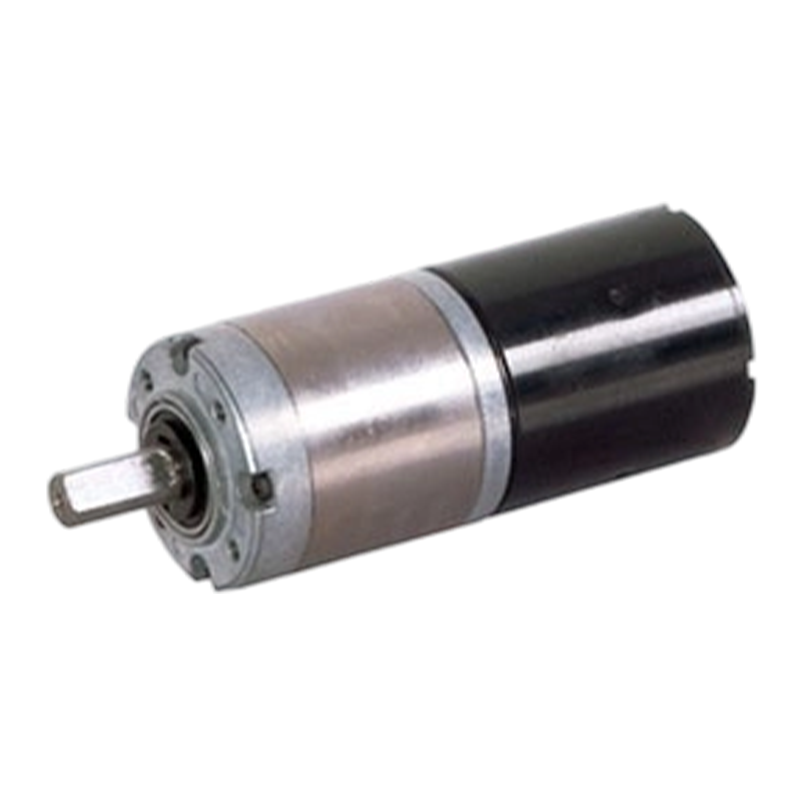

36JXE30K/36ZWNP40 36mm Efficient Heat Dissipation Brushless DC Planetary Gear Motor

36JXE30K/36ZWNP40 36mm Efficient Heat Dissipation Brushless DC Planetary Gear Motor

Product 36JXE30K/36ZWNP40 is a compact power unit with an outer diameter of 36 mm, suitable for 12v/24v dual voltage environment, using metal and powder metal inner ring design.
The design has a heat sink rib or heat sink hole, which increases the heat dissipation area, helps to reduce the heat generated during the gear transmission process, and ensures the stability of the motor and gear box during long-term operation. The structure is relatively compact, the magnetic field intensity generated by the permanent magnet is high, and the brush motor is smaller and lighter than the brush motor for the same power output.

  • 36JXE30K/36ZWNP40 36mm Efficient Heat Dissipation Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：36JXE30K/36ZWNP57 High-Performance Brushless Planetary Gear Motor
NEXT：36JXE30K/36ZWN42 36mm 0.3N.m~3.0N.m Brushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

36JXE30K/36ZWNP40

36mm OD Planetary Gearbox,

Permissible Load Range:0.3N·m~3N·m

BLDC Planetary Gear Motor (Ring Gear Material: Metal and Powder Metal)

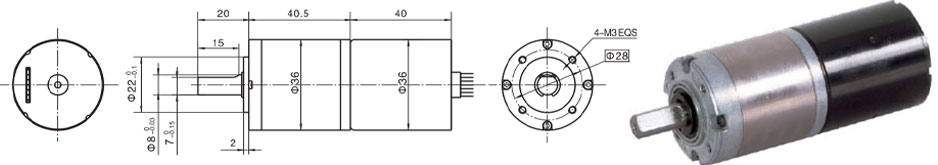

Dimensions

3 phase 4 poles brushless DC motor, with built-in driver

Ring gear can be selected within the two materials : Powder metal (Type: 36JXF30K) , Metal (Type: 36JXE30K)

Brushless Motor Technical Data

TYPE

Number of poles

Number of phase

Rated voltage VDC

No-load speed r/min

No-load current mA

Rated torque mN.m

Rated speed r/min

Rated current mA

Rated Power W

36ZWNP40-1240

4

3

12

4000

400

15

3000

850

4.7

36ZWNP40-2440

4

3

24

4000

200

20

3000

550

6.3

Brushless Gear Motor Technical Data

Configuration 36ZWNP40-1240 BLDC Motor (36ZWNP40-1240 BLDC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

Length(L)  mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

47.4

47.4

No-load speed  r/min

1078

772

286

211

148

78

56

40

29

21

15

11

Rated speed rAnin

809

579

214

158

111

59

42

30

22

16

11

8.1

Rated torque N.m

0.05

0.07

0.17

0.23

0.33

0.56

0.78

1.1

1.5

1.8

2.6

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9
Configuration 36ZWNP40-2440 BLDC Motor (36ZWNP40-2440 BLDC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

Length(L)  mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

47.4

47.4

No-load speed  r/min

1078

772

286

211

148

78

56

40

29

21

15

11

Rated speed rAnin

809

579

214

158

111

59

42

30

22

16

11

8.1

Rated torque N.m

0.067

0.093

0.23

0.31

0.44

0.74

1

1.5

2

2.5

3

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9
