36JXE30K/36ZWN42 36mm 0.3N.m~3.0N.m Brushless DC Planetary Gear Motor

36JXE30K/36ZWN42 36mm 0.3N.m~3.0N.m Brushless DC Planetary Gear Motor

36JXE30K/36ZWN42 brushless DC planetary gear motor has an outer diameter of 36 mm, the allowable torque range is 0.3N.m~3.0N.m, and the inner gear ring material is made of metal and powder metal.
Brushless motor with high precision drive, can achieve accurate speed control and position control, position control accuracy up to ±0.1°-±0.5°, suitable for high transmission accuracy requirements of automation equipment and precision instruments. The stator winding of the brushless motor is usually wound with multiple strands of thin wire, the end of the winding is short, the heat dissipation area is large, and the motor shell is generally made of aluminum alloy and other materials with good thermal conductivity, which can effectively dissipate the heat generated inside the motor.

  • 36JXE30K/36ZWN42 36mm 0.3N.m~3.0N.m Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：36JXE30K/36ZWNP40 36mm Efficient Heat Dissipation Brushless DC Planetary Gear Motor
NEXT：32JXE30K/33ZWN80 32mm High-Precision Engagement Brushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

36JXE30K/36ZWN42

36mm OD Planetary Gearbox,

Permissible Load Range: 0.3N.m~3.0N.m

BLDC Planetary Gear Motor （Ring Gear Material: Metal and Powder Metal)

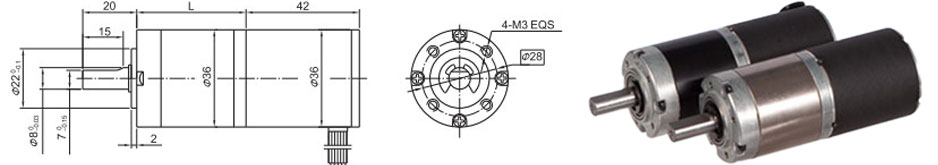

Dimensions

Brushless Motor Technical Data

TYPE

Number of poles

Number of phases

Rated Voltage VDC

No-load Speed r/min

Rated Speed r/min

Rated Torque mN.m

Rated Power W

Reak Torque mN.m

36ZWN42-2430

8

3

24

3000

2100

32

7

160

36ZWN42-2440

8

3

24

4000

2800

36

10

180

Brushless Gear Motor Technical Data

Configuration 36ZWN42-2430 Brushless DC Motor (36ZWN42-2430 BLDC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

Length(L)  mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

47.4

No-load speed  r/min

809

576

214

158

111

59

42

30

22

16

11

Rated speed rAnin

566

405

150

111

78

41

30

23

18

13

8

Rated torque N.m

0.09

0.13

0.31

0.42

0.59

1

1.4

2

2.5

3

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9
Configuration 36ZWN42-2440 Brushless DC Motor (36ZWN42-2440 BLDC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

Length(L)  mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

47.4

No-load speed  r/min

1078

772

286

211

148

78

56

40

29

21

15

Rated speed rAnin

755

541

200

147

104

55

39

30

23

18

14

Rated torque N.m

0.1

0.14

0.34

0.46

0.66

1.1

1.6

2.2

2.5

3

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9
