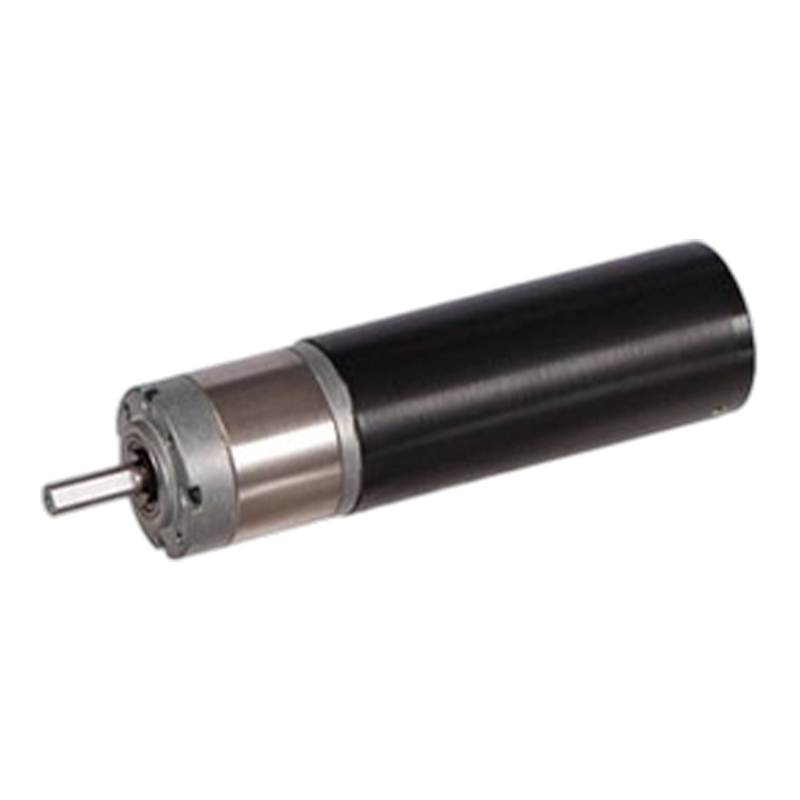

32JXE30K/33ZWN80 32mm High-Precision Engagement Brushless DC Planetary Gear Motor

32JXE30K/33ZWN80 32mm High-Precision Engagement Brushless DC Planetary Gear Motor

The 32JXE30K/33ZWN80 is a combination of gearmotor units with an outer diameter of 32 mm, which can be selected in two materials: powder metal (Model 36JXF30K) and metal (Model 36JXE30K).
Planetary gear transmission structure is compact, gear made of high-strength alloy steel, after quenching, grinding and other processes, with high strength and wear resistance, can withstand greater impact load, long working life. Planetary gear transmission has the characteristics of accurate transmission ratio and high transmission accuracy. Through reasonable design of planetary gear train parameters, you can achieve a very accurate transmission ratio, and the transmission error can generally be controlled within ±0.5%-±1%.

  • 32JXE30K/33ZWN80 32mm High-Precision Engagement Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：36JXE30K/36ZWN42 36mm 0.3N.m~3.0N.m Brushless DC Planetary Gear Motor
NEXT：32JXE30K/33ZWN38 32mm 20000 Hours+ Lifespan Brushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

32JXE30K/33ZWN80

32mm OD Planetary Gearbox,

Permissible Load Range: 0.3N.m~3.0N.m

BLDC Planetary Gear Motor (Ring Gear Material: Metal)

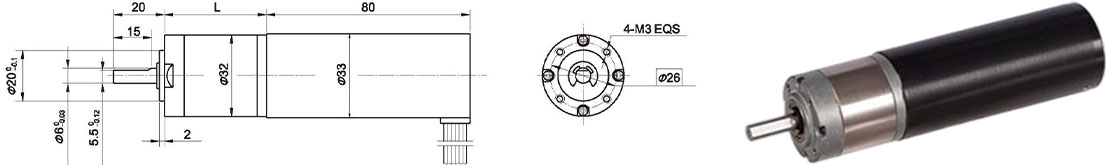

Dimensions

Ring gear can be selected within the two materials : Powder metal (Type: 36JXF30K) , Metal (Type: 36JXE30K)

Brushless Motor Technical Data

TYPE

Number of poles

Number of phase

Rated Voltage VDC

No-load Speed r/min

Rated Speed r/min

Rated Torque mN.m

Rated Power W

Reak Torque mN.m

Peak Current A

Line to line resistance ohms

Line to line inductance mH

33ZWN80-2490

4

3

24

9000

7800

50

40

350

11

0.86

0.55

Brushless Gear Motor Technical Data

Configuration 33ZWN80-2490 Brushless DC Motor (33ZWN80-2490 BLDC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

Number of gear trains

1

1

2

2

2

3

3

3

3

Length(L)  mm

25.7

25.7

32.8

32.8

32.8

39.7

39.7

39.7

39.7

No-load speed  r/min

2624

1737

643

474

333

176

127

90

65

Rated speed rAnin

2101

1506

557

411

289

153

110

78

56

Rated torque N.m

0.17

0.23

0.57

0.77

1.1

1.9

2.5

2.5

2.5

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5
