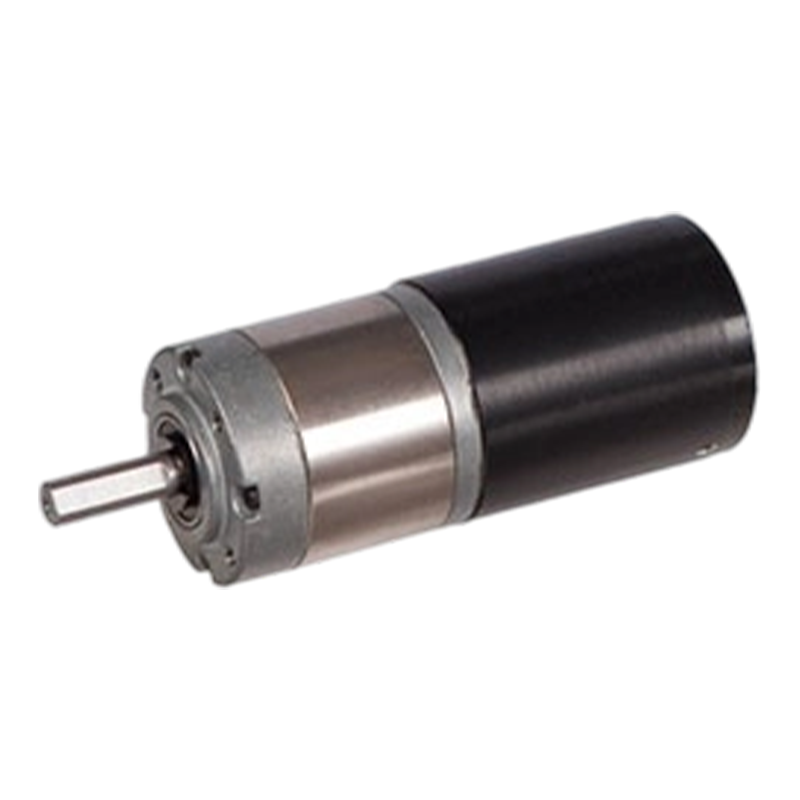

32JXE30K/33ZWN38 32mm 20000 Hours+ Lifespan Brushless DC Planetary Gear Motor

32JXE30K/33ZWN38 32mm 20000 Hours+ Lifespan Brushless DC Planetary Gear Motor

32JXE30K/33ZWN38 brushless DC planetary gear motor with an outer diameter of 32 mm, combining compact and high torque output. Support 12V/24V dual voltage, suitable for different energy efficiency scenarios.
The meshing between the planet wheel and the sun wheel and the tooth ring is relatively smooth, and the high-precision gear processing technology can effectively reduce the transmission noise, and the noise during operation can usually be controlled below 40-60 decibels. The brushless motor has no easily worn parts such as brushes and commutators, which reduces the motor failure caused by brush wear, improves the reliability and service life of the motor, and its average trouble-free operation time can reach 20,000-30,000 hours.

  • 32JXE30K/33ZWN38 32mm 20000 Hours+ Lifespan Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：32JXE30K/33ZWN80 32mm High-Precision Engagement Brushless DC Planetary Gear Motor
NEXT：28JXB30K/28ZWNP38 28mm 90% Gear Ratio Brushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

32JXE30K/33ZWN38

32mm OD Planetary Gearbox,

Permissible Load Range: 0.3N.m~3.0N.m

BLDC Planetary Gear Motor（Fling Gear Material: Metal)

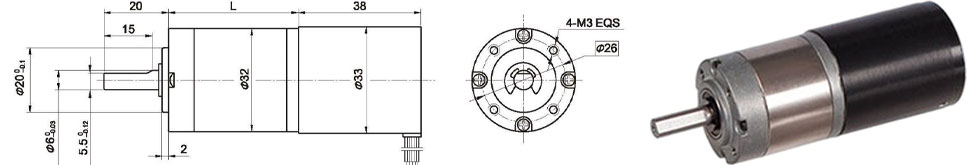

Dimensions

Brushless Motor Technical Data

TYPE

Number of poles

Number of phases

Voltage VDC

No-load Speed r/min

Rated Speed r/min

Rated Torque mN.m

Rated Power
W

Reak
Torque mN.m

Peak Current
A

Line to line resistance
ohms

Line to line inductance
mH

33ZWN38-2445

4

3

24

4500

3000

22

7

66

0.64

14.2

7

Brushless Gear Motor Technical Data

Configuration 33ZWN38-2445 Brushless DC Motor (33ZWN38-2445 BLDC Motor)

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

Length(L)  mm

25.7

25.7

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

No-load speed  r/min

1213

869

321

237

167

88

63

45

32

24

17

12

Rated speed rAnin

809

579

214

158

111

59

42

30

22

16

11

8.1

Rated torque N.m

0.073

0.1

0.25

0.34

0.48

0.82

1.1

1.6

2.2

2.7

3

3

Max. permissible load in a short time N.m

1

1

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9
