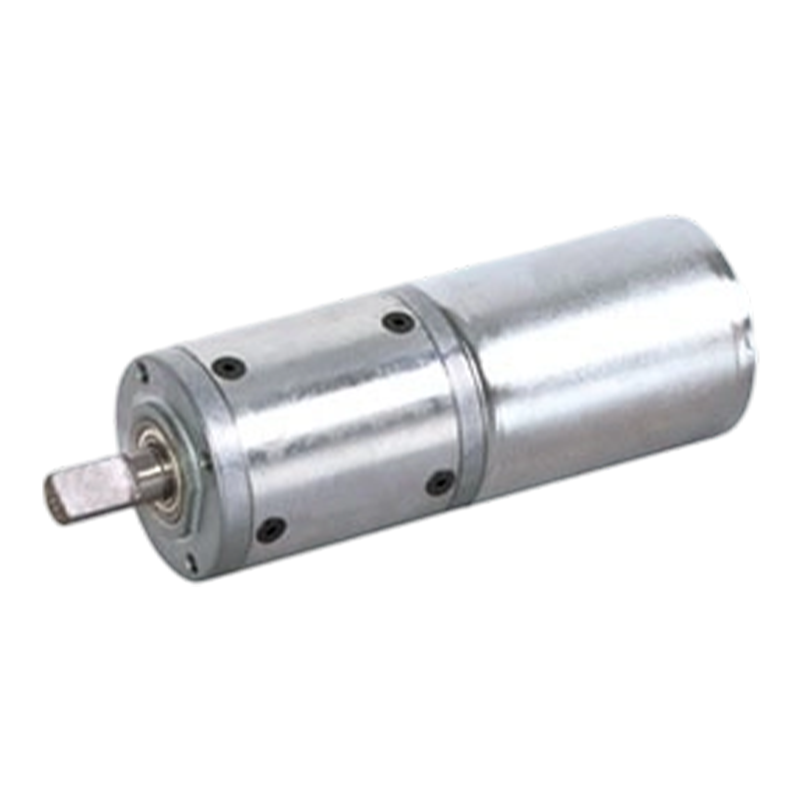

42JX150K/42ZWNP66 42mm 2N.m~15N.mBrushless DC Planetary Gear Motor

42JX150K/42ZWNP66 42mm 2N.m~15N.mBrushless DC Planetary Gear Motor

42JX150K/42ZWNP66 is a planetary reducer with an outer diameter of 42 mm, allowing a torque range of 2N.m~15N.m, and the inner gear ring material is made of metal, suitable for 12v/24v dual voltage environment.
The structure of the brushless motor is relatively compact, the magnetic field intensity generated by the permanent magnet is high, and the volume is smaller and the weight is lighter than that of the brushed motor under the same power output. The brushless motor does not produce electrical spark and electromagnetic interference during operation, and the electromagnetic pollution to the surrounding environment is small. Brushless planetary gear motors usually use environmentally friendly lubricants, which do not pollute the environment during use and meet the requirements of modern industry for environmental protection.

  • 42JX150K/42ZWNP66 42mm 2N.m~15N.mBrushless DC Planetary Gear Motor
Download Product Inquiry
PREV：42JX150K/42ZWNP66T 42mm Low Wear Design Brushless DC Planetary Gear Motor
NEXT：42JX150K/42ZWNP66 42mm Aluminum Alloy Shell Brushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

42JX150K/42ZWNP66(2)

42mm OD Planetary Gearbox,

Permissible Load Range: 2N.m~15N.m

BLDC Planetary Gear Motor (Ring Gear Material: Metal)

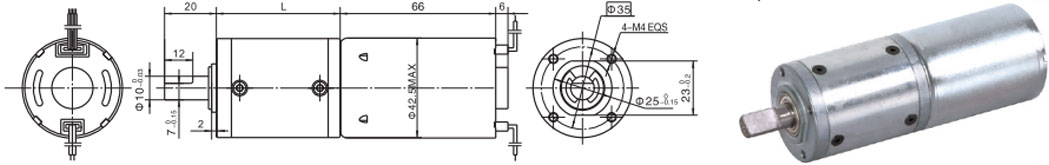

Dimensions

3-phase 10 poles brushless DC motor, with external driver

Brushless Motor Technical Data

TYPE

Number of poles

Number of phase

Rated voltage VDC

No-load speed r/min

Rated Speed r/min

Rated torque mN.m

Rated current A

Output power W

42ZWNP66-2430

10

3

24

3000

2550

80

1.1

21

Brushless Gear Motor Technical Data

Configuration of 42ZWNP66-2430 BLDC Motor (42ZWNP66-2430 BLDC Motor)

Reduction ratio

3.5

14

21

49

84

104

126

156

172

196

212

294

Number of gear trains

1

2

2

3

3

3

3

4

4

4

4

4

Length(L)  mm

32.5

39.2

39.2

46

46

46

46

52.5

52.5

52.5

52.5

52.5

No-load speed  r/min

857

214

143

61

36

29

24

19

17

15

14

10

Rated speed rAnin

728

182

121

52

30

24

20

16

15

13

12

8

Rated torque N.m

0.25

0.9

1.3

2.8

4.9

6

7.3

8.2

9

10.3

11.2

15.6

Max. permissible load in a short time N.m

3

12

12

25

25

25

25

30

30

30

30

30
