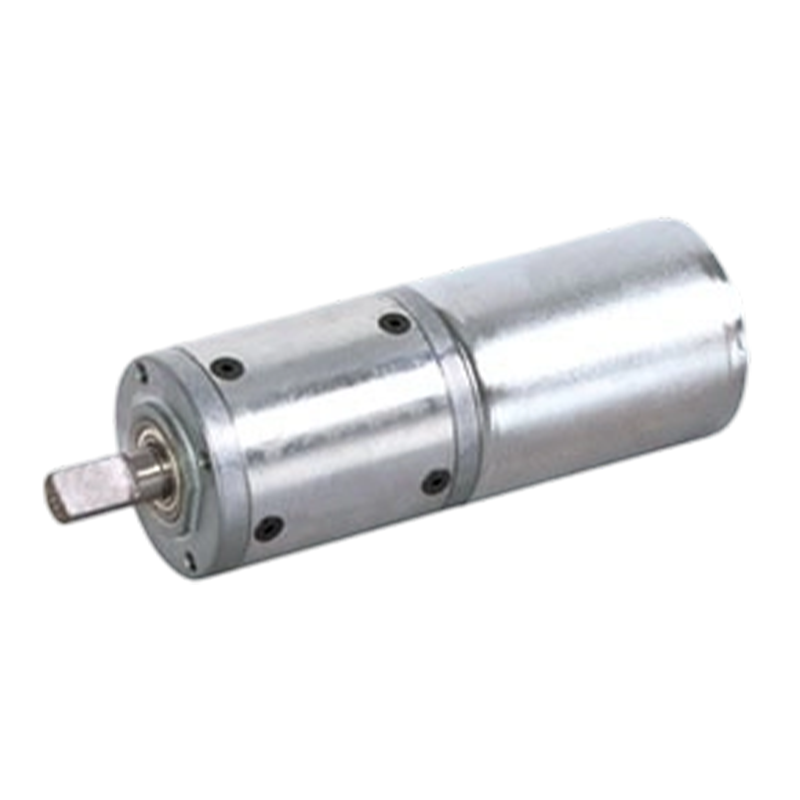

42JX150K/42ZWNP66T 42mm Low Wear Design Brushless DC Planetary Gear Motor

42JX150K/42ZWNP66T 42mm Low Wear Design Brushless DC Planetary Gear Motor

42JX150K/42ZWNP66T is a planetary reducer with an outer diameter of 42 mm, allowing a torque range of 2N.m~15N.m, and the inner gear ring material is made of metal, suitable for 12v/24v dual voltage environment.
Brushless motors do not require brushes, wear is mainly concentrated in bearings, the planetary gear load sharing design reduces single point wear, the combination of the two significantly reduces mechanical wear, life of tens of thousands of hours, maintenance only needs to be 28 mm outer diameter of the compact power unit, suitable for 12v/24v dual voltage environment, using a metal inner gear ring design.

  • 42JX150K/42ZWNP66T 42mm Low Wear Design Brushless DC Planetary Gear Motor
Download Product Inquiry
PREV：42JXG50K/42BL40 42mm Fast Response Brushless DC Planetary Gear Motor
NEXT：42JX150K/42ZWNP66 42mm 2N.m~15N.mBrushless DC Planetary Gear Motor

+86 0579-86817938-836

[email protected]

42JX150K/42ZWNP66T

42mm OD Planetary Gearbox,

Permissible Load Range: 2N.m~15N.m

BLDC Planetary Gear Motor (Ring Gear Material: Metal)

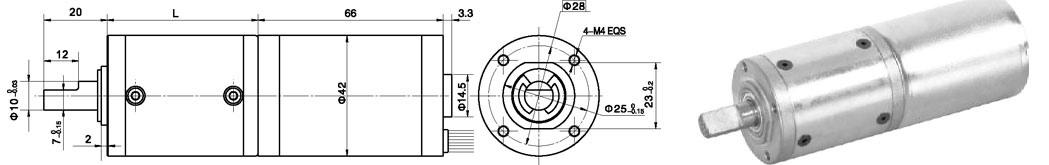

Dimensions

Brushless Motor Technical Data

TYPE

Number of poles

Number of phase

Rated voltage VDC

No-load speed r/min

Rated Speed r/min

Rated torque mN.m

Rated current A

Output power W

42ZWNP66T-2430

8

3

24

3000

2600

150

3.7

TBD

Brushless Gear Motor Technical Data

Configuration 42ZWNP66T-2430 Brushless DC Motor (42ZWNP66T-2430 BLDC Motor)

Reduction ratio

3.5

14

21

49

84

104

126

156

172

196

212

Number of gear trains

1

2

2

3

3

3

3

4

4

4

4

Length(L)  mm

32.5

39.2

39.2

46

46

46

46

52.5

52.5

52.5

52.5

No-load speed  r/min

857

214

143

61

36

29

24

19

17

15

14

Rated speed rAnin

728

182

121

52

30

24

20

16

15

13

12

Rated torque N.m

0.47

1.7

2.5

5.3

9.2

11.4

13.8

15.4

16.8

19

20

Max. permissible load in a short time N.m

3

12

12

25

25

25

25

30

30

30

30

Wire Diagram

Vcc

GND

F/R

PWM

PG

Red

Black

Green

White

Yellow

22AWG UL3266

26AWG UL1430
