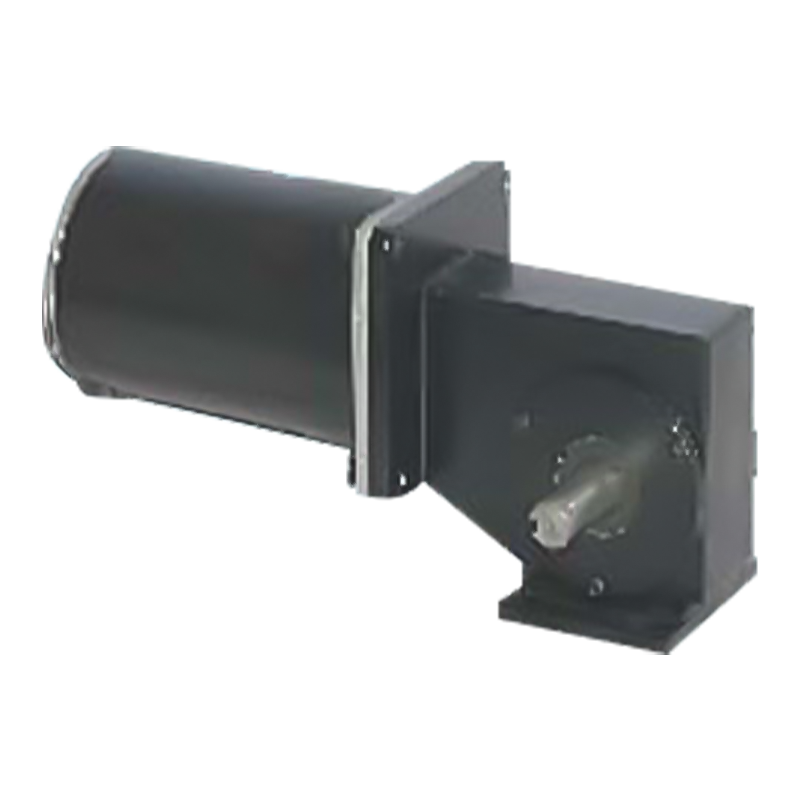

90JW/83ZY125 2000-3000 RPM Permanent Magnet Brushed Worm Gear Motor

90JW/83ZY125 2000-3000 RPM Permanent Magnet Brushed Worm Gear Motor

Product 90JW/83ZY125 has an outer diameter of 90 mm and no-load current of 2000-3000 RPM. The use of all rolling bearing configuration, can provide left out shaft, right out shaft, hollow out shaft. Customers can configure various lengths, shapes and directions of the output shaft in the hollow output shaft.
When the spiral lift Angle of the worm is less than the equivalent friction Angle of the meshing surface, the worm gear mechanism has self-locking, that is, the worm can only drive the worm gear to rotate, and the worm wheel can not drive the worm to rotate. This feature makes brushed worm motors advantageous in applications where reversal protection is required, such as lifting equipment, automatic doors, etc. Under reasonable design and lubrication conditions, the worm gear transmission efficiency of the brush worm gear motor can reach about 70%-90%, which can effectively convert the electrical energy of the motor into mechanical energy and reduce energy loss.

  • 90JW/83ZY125 2000-3000 RPM Permanent Magnet Brushed Worm Gear Motor
Download Product Inquiry
PREV：90JW/JB/80ZY115 1:10 Permanent Magnet Brushed Worm Gear Motor
NEXT：90JW/60JX/60ZY High Gear Ratio Permanent Magnet Brushed Worm Gear Motor

+86 0579-86817938-836

[email protected]

90JW/83ZY125

Permissible Load Range: 20N.m

PM DC Spur Gear Motor

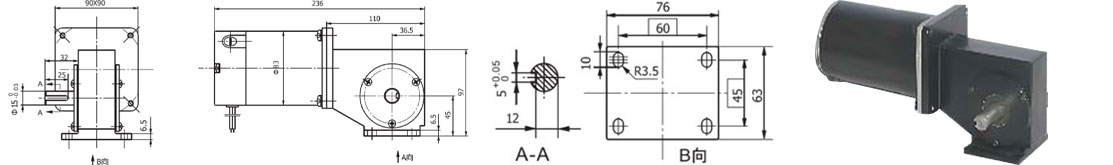

Dimensions

1、All are equipped with ball bearings, and left, right, or hollow output shafts are available.

2、Customers can equip output shafts of different lengths, shapes or directions within the hollow shaft.

Remarks: Standard product is left output shaft; right output shaft is available upon request.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

83ZY125-2420

24

2000

0.8

1700

0.24

42

3.5

1.6

17

83ZY125-2430

24

3000

0.9

2500

0.3

77

4.6

1.8

20

Gear Motor Technical Data

Configuration 83ZY125-2420 DC Motor

Reduction ratio

50

40

32

25

16

12.5

Number of threads

1

1

1

1

2

2

No-load speed r/min

40

50

62

80

125

160

Rated speed r/min

30

37

46

60

93

120

Rated torque N.m

8.4

6.7

5.3

4.2

3

2.4

Permissible load N.m

20

20

20

20

10

10
Configuration 83ZY125-2430 DC Motor

Reduction ratio

50

40

32

25

16

12.5

Number of threads

1

1

1

1

2

2

No-load speed r/min

60

75

93

120

187

240

Rated speed r/min

46

57

71

92

143

184

Rated torque N.m

10.5

8.4

6.7

5.2

3.8

3

Permissible load N.m

20

20

20

20

10

10
