90JW/60JX/60ZY High Gear Ratio Permanent Magnet Brushed Worm Gear Motor

90JW/60JX/60ZY High Gear Ratio Permanent Magnet Brushed Worm Gear Motor

90JW/60JX/60ZY permanent magnet DC turbine reducer is a mixed configuration, in front of the worm gear reducer is configured with 60JX gear reducer, 60ZY DC motor, to increase the total transmission ratio, obtain a lower speed. The total reduction ratio is the product of the reduction ratio of the two reducers.
Worm gear transmission can achieve a larger transmission ratio, generally between 5-80 and even higher, which makes the brush worm gear motor can convert the high-speed low torque output of the motor into a low speed high torque output to meet the transmission needs of different equipment. The worm gear mechanism has the characteristics of compact structure and can achieve a large transmission ratio in a small space, making the overall volume of the brush worm gear motor small and easy to install in the equipment with limited space. During the transmission process, the contact between the worm gear and the worm tooth surface is continuous, the transmission is smooth, the noise is low, and the equipment can provide a more stable power output, which is suitable for the occasions with high requirements for the smooth operation.

  • 90JW/60JX/60ZY High Gear Ratio Permanent Magnet Brushed Worm Gear Motor
Download Product Inquiry
PREV：90JW/83ZY125 2000-3000 RPM Permanent Magnet Brushed Worm Gear Motor
NEXT：63JW/63ZY125 High-Torque Brushed Worm Gear Motor with Optional Encoder/Brake

+86 0579-86817938-836

[email protected]

90JW/60JX/60ZY

Permissible Load Range: 20N.m

PM DC Worm Gear Motor

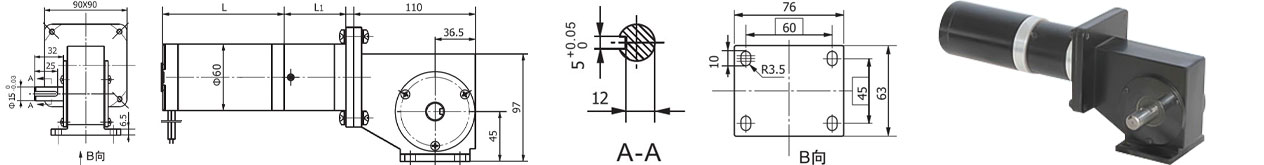

Dimensions

Mixed configuration, 60OD planetary gearbox and 600D PMDC motor are equipped at the front of the worm gearbox to increase the total drive ratio and achieve a lower speed. The total ratio equals the product of the two gear ratios.

Remarks:Standard product is left output shaft, right output shaft is available upon request.

Gear Motor Technical Data

Rated speed (r/min)

14

11

8

6

4

2

Rated torque (N.m)

9

12

20

20

20

20

Worm Gearbox Ratio

1:25

1:32

1:25

1:25

1:25

1:25

Planetary Gearbox Ratio

1:4.25

1:4.25

1:13

1:18

1:15

1:47

Combined Ratio

1:106

1:136

1:325

1:450

1:375

1:1175

DC motor

60ZY105-2420

60ZY105-2420

60ZY105-2430

60ZY105-2430

60ZY105-2420

60ZY75-2430

Motor Length

110

110

110

110

110

80

Planetary Gearbox Length

45.5

45.5

45.5

45.5

45.5

56.5
