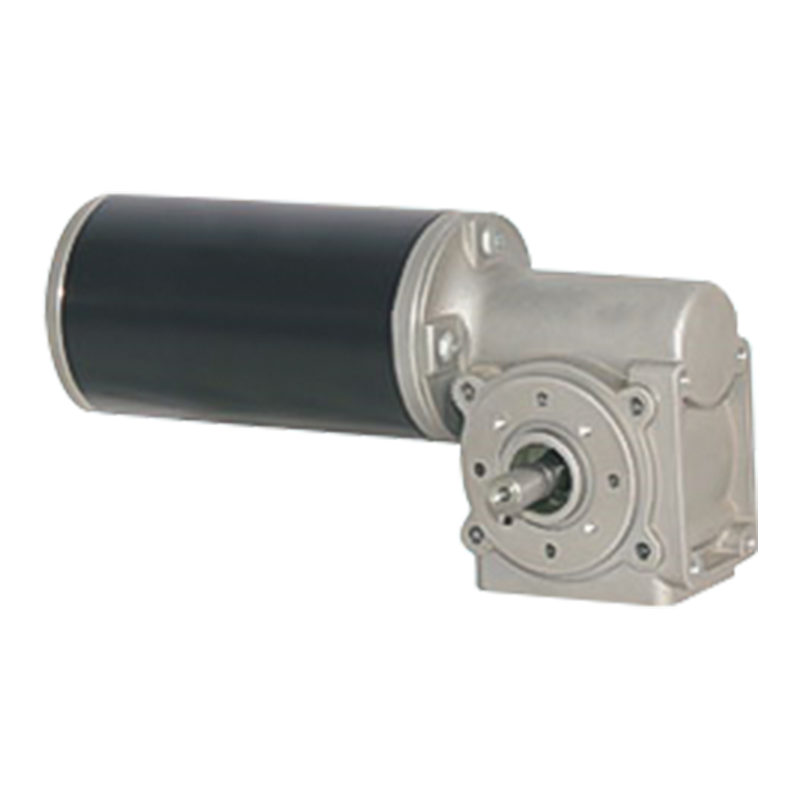

63JW/63ZY125 High-Torque Brushed Worm Gear Motor with Optional Encoder/Brake

63JW/63ZY125 High-Torque Brushed Worm Gear Motor with Optional Encoder/Brake

The 63JW/632Y125 series high-temperature high-torque DC gear motor is engineered for industrial applications in elevated temperature environments, delivering a permissible torque range of 8N.m for reliable performance under demanding conditions. Featuring adjustable speed control and compatibility with diverse motor types, this series seamlessly integrates with TEVOC systems to meet versatile operational requirements. Available in 12VDC, 24VDC, or 36VDC configurations, the motor incorporates a right-angle radiator design for enhanced thermal management and longevity. With reduction ratios of 30:1, 15:1, and 10:1, paired with motor models 632Y125-2430 and 632Y125-3633, it achieves no-load speeds up to 3300r/min and rated torque from 2.1N.m to 7.1N.m, alongside a maximum permissible load of 8N.m. Optional encoders and brakes enable precise positioning and dynamic control, making it ideal for automation machinery, robotic arms, and high-precision drive systems.

  • 63JW/63ZY125 High-Torque Brushed Worm Gear Motor with Optional Encoder/Brake
Download Product Inquiry
PREV：90JW/60JX/60ZY High Gear Ratio Permanent Magnet Brushed Worm Gear Motor
NEXT：63JW/63ZY105 Permanent Magnet Brushed Worm Gear Motor

+86 0579-86817938-836

[email protected]

63JW/63ZY125

Permissible Load Range: 8N.m

PM DC Worm Gear Motor

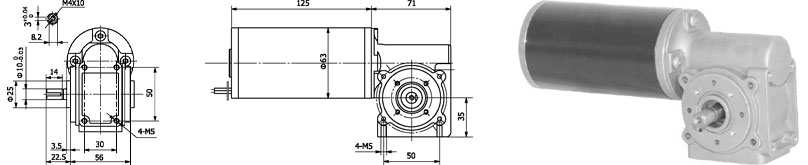

Dimensions

1、Suitable application: gearbox and motor output shafts form a right angle.

2、12VDC is available, and motor speed is adjustable upon request.

3、Encoder & brake are available upon request.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

63ZY125-2430

24

3000

0.5

2600

0.25

70

4.6

1.1

20

63ZY125-3633

36

3300

0.5

2700

0.34

100

4

1.6

16

Gear Motor Technical Data

Configuration 63ZY125-2430 DC Motor

Reduction ratio

30

15

10

Number of threads

1

2

3

No-load speed r/min

100

200

300

Rated speed r/min

87

173

260

Rated torque N.m

5.2

3

2.1

Permissible load N.m

8

5

5
Configuration 63ZY125-3633 DC Motor

Reduction ratio

30

15

10

Number of threads

1

2

3

No-load speed r/min

110

220

330

Rated speed r/min

90

180

270

Rated torque N.m

7.1

4

2.9

Permissible load N.m

8

5

5
