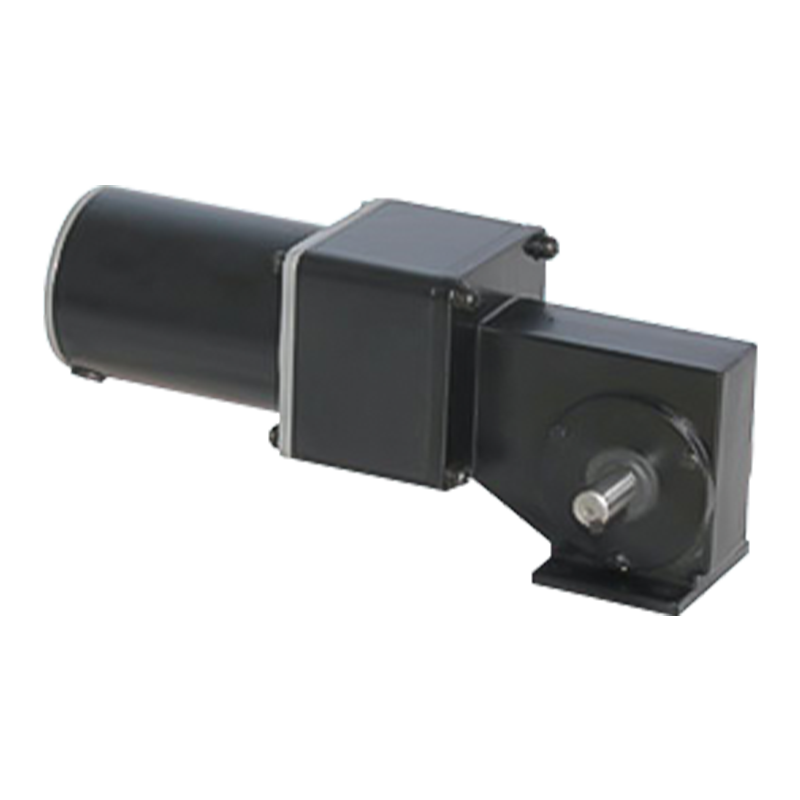

90JW/JB/80ZY115 1:10 Permanent Magnet Brushed Worm Gear Motor

90JW/JB/80ZY115 1:10 Permanent Magnet Brushed Worm Gear Motor

Permanent magnet DC turbine reducer 90JW/JB/80ZY115 is a hybrid configuration, in front of the worm gear reducer is configured with 1:10 JB gear reducer, in order to increase the total transmission ratio, to obtain a lower speed. The total reduction ratio is the product of the reduction ratio of the two reducers.
It can adapt to a variety of working environments, whether indoors or outdoors, and can work stably within a certain temperature and humidity range. Moreover, through the selection of appropriate materials and protective measures, it can also adapt to some harsh working conditions, such as large dust and a certain corrosive environment. The structure of brushed worm gear motor is relatively simple, mainly composed of brushed DC motor and worm gear and worm mechanism, there is no complex transmission device or other auxiliary transmission components. Therefore, under normal use, its maintenance workload is small and the maintenance cost is low. Just check the wear of the motor and worm gear regularly, and replace lubricating oil and other wearing parts in time.

  • 90JW/JB/80ZY115 1:10 Permanent Magnet Brushed Worm Gear Motor
Download Product Inquiry
PREV：No previous article
NEXT：90JW/83ZY125 2000-3000 RPM Permanent Magnet Brushed Worm Gear Motor

+86 0579-86817938-836

[email protected]

90JW/JB/80ZY115

Permissible Load Range: 20N.m

PM DC Worm Gear Motor

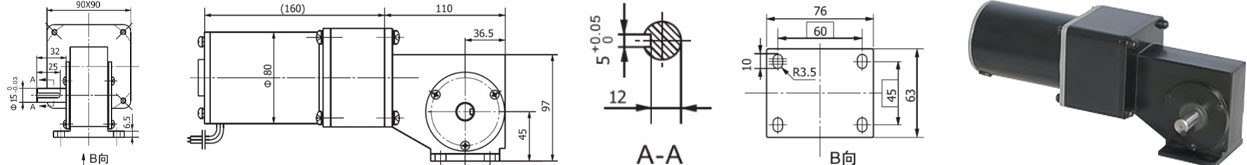

Dimensions

Mixed configuration, a 1:10 eccentric shaft gearbox is equipped at the front of the worm gearbox to increase the total drive ratio and achieve a lower speed. The total ratio equals the product of the two gear ratios.

Remarks: Standard product is left output shaft; right output shaft is available upon request.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

80ZY115-1225

12

2500

1.5

2000

0.4

84

10

1.5

30

Gear Motor Technical Data

Configuration 80ZY115-1225 DC motor(80ZY115-1225 DC motor)

Reduction ratio

125

160

250

Number of threads

2

2

1

No-load speed r/min

20

16

10

Rated speed r/min

16

13

8

Rated torque N.m

16

20

20

Permissible load N.m

40

40

40
