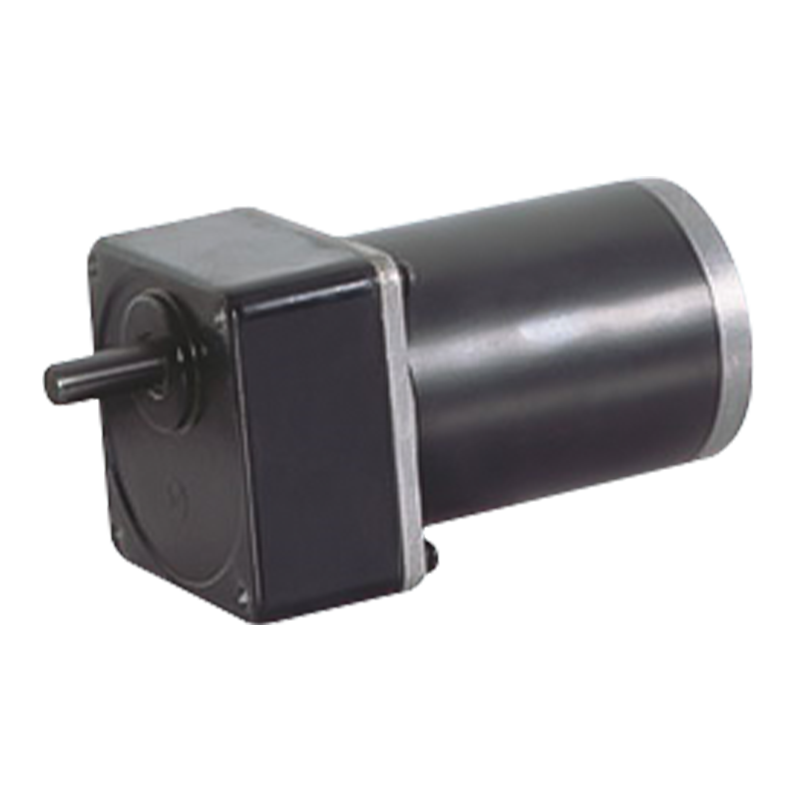

90JB200K/80ZY115 2000-3000rpm 20N.m Permanent Magnet DC Brushed Spur Gear Motor

90JB200K/80ZY115 2000-3000rpm 20N.m Permanent Magnet DC Brushed Spur Gear Motor

The 90JB200K/80ZY115 permanent magnet DC gear motor is a power unit group with an outer diameter of 90 mm, allowing a torque load of 20N.m and a no-load speed of 2000-3000 RPM.
Parallel gear mechanism can increase the output torque, through a reasonable design of gear ratio, can meet the needs of different loads, suitable for equipment requiring large torque, such as robots, electric vehicles, etc. The efficiency of parallel gear transmission is higher, which can effectively transfer the power of the motor and reduce energy loss, and is more suitable for some occasions that require high energy efficiency.

  • 90JB200K/80ZY115 2000-3000rpm 20N.m Permanent Magnet DC Brushed Spur Gear Motor
Download Product Inquiry
PREV：104JB300K/80ZY125 12v/24v 104mm 30N.m Permanent Magnet DC Brushed Spur Gear Motor
NEXT：80JB100K/80ZY115 PWM 10N.m Permanent Magnet DC Brushed Spur Gear Motor

+86 0579-86817938-836

[email protected]

90JB200K/80ZY115

Permissible Load Range: 20N.m

PM DC Spur Gear Motor

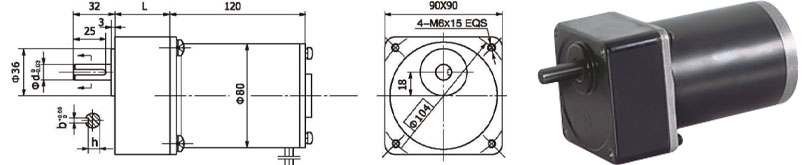

Dimensions

(1)Standard Configuration: Diameter d=15, Keyway b=5、 h=12
(2) Optional： Diameterd=12, Keyway b=4、h=9.5

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

80ZY115-2420

24

2000

0.3

1700

0.32

57

3.5

1.5

16

80ZY115-2430

24

3000

0.5

2600

0.44

120

7.5

2

33

Gear Motor Technical Data

Configuration 80ZY115-2420 DC Motor(80ZY115-2420 DC Motor)

Reduction ratio

3

5

6

7.5

9

10

12.5

15

18

20

25

30

36

40

50

60

75

Number of gear trains

1

2

2

2

2

2

2

2

3

3

3

3

3

4

4

4

4

Length(L) mm

42

42

42

42

42

42

42

42

60

60

60

60

60

60

60

60

60

No-load speed     r/min

667

400

333

267

222

200

160

133

111

100

80

67

56

50

40

33

27

Rated speed       r/min

567

340

283

227

189

170

136

113

94

85

68

57

47

43

34

28

23

Rated torque        N.m

0.86

1.3

1.6

1.9

2.3

2.6

3.2

3.9

4.2

4.7

5.8

7

8.4

8.4

11

13

16

Max. permissible load in a short time N.m

5

10

10

10

10

10

10

10

20

20

20

20

20

40

40

40

40

Direction of rotation

CCW

CW

CW

CW

CW

CW

CW

CW

CCW

CCW

CCW

CCW

CCW

CW

CW

CW

CW
Configuration 80ZY115-2430 DC Motor(80ZY115-2430 DC Motor)

Reduction ratio

3

5

6

7.5

9

10

12.5

15

18

20

25

30

36

40

50

60

75

Number of gear trains

1

2

2

2

2

2

2

2

3

3

3

3

3

4

4

4

4

Length(L) mm

42

42

42

42

42

42

42

42

60

60

60

60

60

60

60

60

60

No-load speed     r/min

1000

600

500

400

333

300

240

200

167

150

120

100

83

75

60

50

40

Rated speed       r/min

867

520

433

347

289

260

208

173

144

130

104

87

72

65

52

43

35

Rated torque        N.m

1.2

1.8

2.1

2.7

3

3.6

4.5

5.3

5.8

6.4

8

9.6

12

12

15

16

17

Max. permissible load in a short time N.m

5

10

10

10

10

10

10

10

20

20

20

20

20

40

40

40

40

Direction of rotation

CCW

CW

CW

CW

CW

CW

CW

CW

CCW

CCW

CCW

CCW

CCW

CW

CW

CW

CW

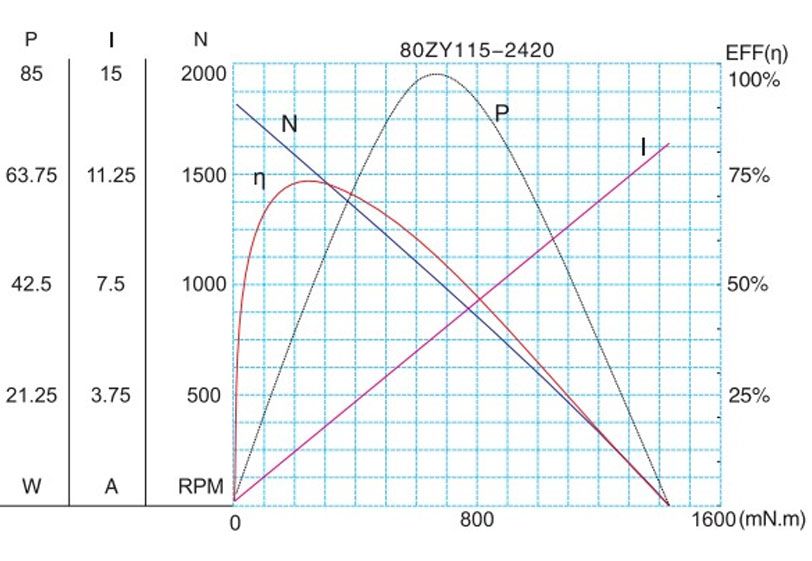

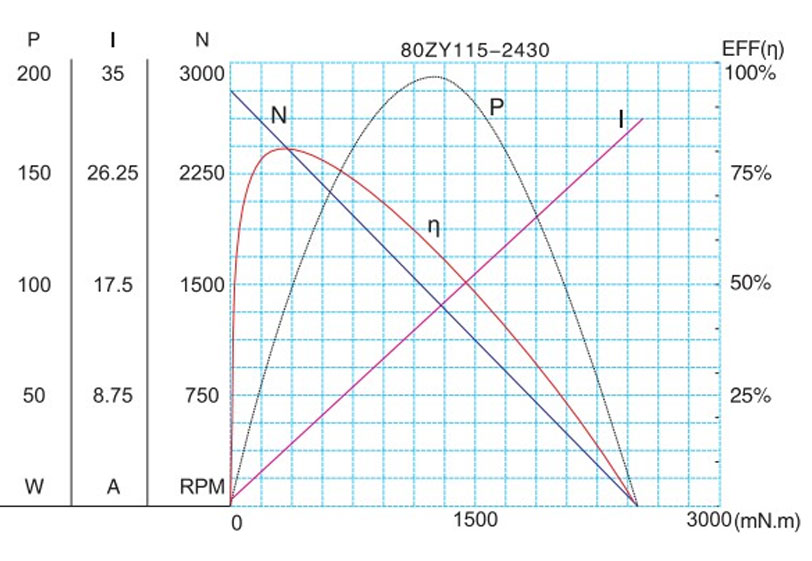

Motor Characteristic Figure

F-14

Technical parameters are subject to change without prior notice.*
