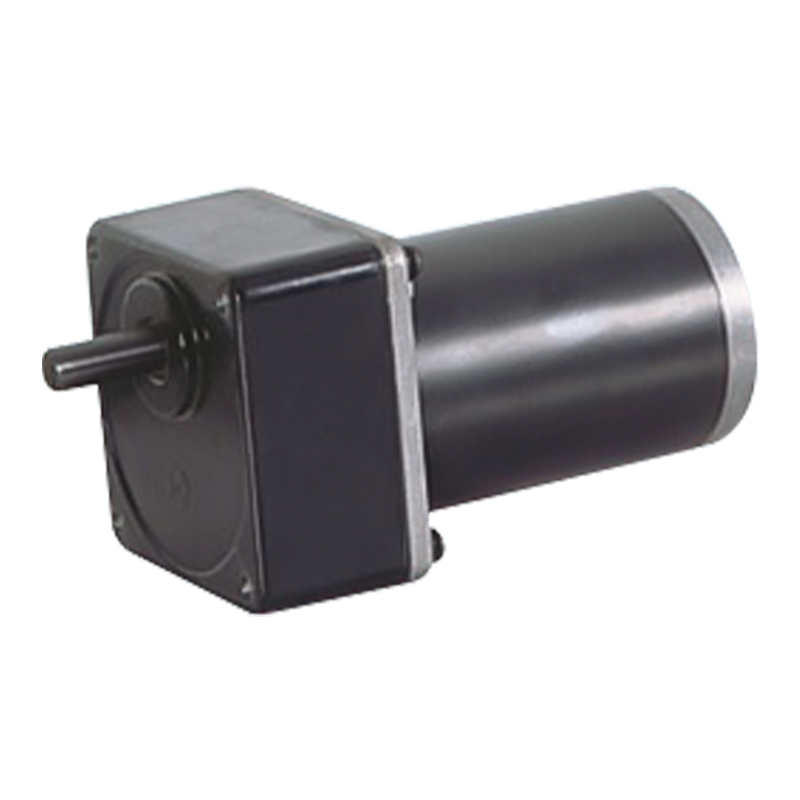

104JB300K/80ZY125 12v/24v 104mm 30N.m Permanent Magnet DC Brushed Spur Gear Motor

104JB300K/80ZY125 12v/24v 104mm 30N.m Permanent Magnet DC Brushed Spur Gear Motor

104JB300K/80ZY125 is an integral gear reducer with an outer diameter of 104mm, which allows a load of 30N.m and is suitable for dual voltage environments of 12v/24v.
Combined with suitable position sensor and control system, brushed parallel gear motor can achieve more accurate position control. In the positioning link of the automated production line, the mechanical parts can be accurately positioned to the specified position, improving the degree of automation and precision of production. The compact structure and small axial size of the parallel shaft gearbox are suitable for space-limited scenarios (such as small robots, home appliances, etc.). Parallel gear transmission is smooth, low noise, can provide more stable power output, so that the equipment runs more stable and reliable, suitable for equipment with high operating stability requirements.

  • 104JB300K/80ZY125 12v/24v 104mm 30N.m Permanent Magnet DC Brushed Spur Gear Motor
Download Product Inquiry
PREV：No previous article
NEXT：90JB200K/80ZY115 2000-3000rpm 20N.m Permanent Magnet DC Brushed Spur Gear Motor

+86 0579-86817938-836

[email protected]

104JB300K/80ZY125

Permissible Load Range: 30N.m

PM DC Spur Gear Motor

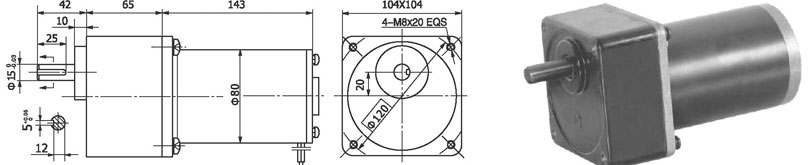

Dimensions

104mm integrated gearbox, with rated torque up to 30.0 N.m, alloy constructional steel gears, all equipped with ball bearings.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

80ZY125-2420

24

2000

0.5

1700

0.64

110

6

2.9

27

80ZY125-2435

24

3500

1.2

3000

0.7

200

10

3.2

45

Gear Motor Technical Data

Configuration 80ZY125-2420 DC Motor

Reduction ratio

3

5

7.5

10

12.5

20

25

30

50

75

Number of gear trains

2

2

2

3

3

3

3

3

4

4

Length(L) mm

65

65

65

65

65

65

65

65

65

65

No-load speed     r/min

667

400

267

160

160

100

80

67

40

27

Rated speed       r/min

567

340

227

136

136

85

68

57

34

23

Rated torque        N.m

1.6

2.6

3.9

4.8

5.8

9.3

12

14

23

25

Max. permissible load in a short time N.m

10

10

10

30

30

30

30

30

60

60

Direction of rotation

CW

CW

CW

CCW

CCW

CCW

CCW

CCW

CW

CW
Configuration 80ZY125-2435 DC Motor

Reduction ratio

3

5

7.5

10

12.5

20

25

30

50

75

Number of gear trains

2

2

2

3

3

3

3

3

4

4

Length(L) mm

65

65

65

65

65

65

65

65

65

65

No-load speed     r/min

1167

700

467

350

280

175

140

117

70

47

Rated speed       r/min

1000

600

400

300

240

150

120

100

60

40

Rated torque        N.m

1.9

3.2

4.3

5.1

6.4

10

13

15

26

30

Max. permissible load in a short time N.m

10

10

10

30

30

30

30

30

60

60

Direction of rotation

CW

CW

CW

CCW

CCW

CCW

CCW

CCW

CW

CW

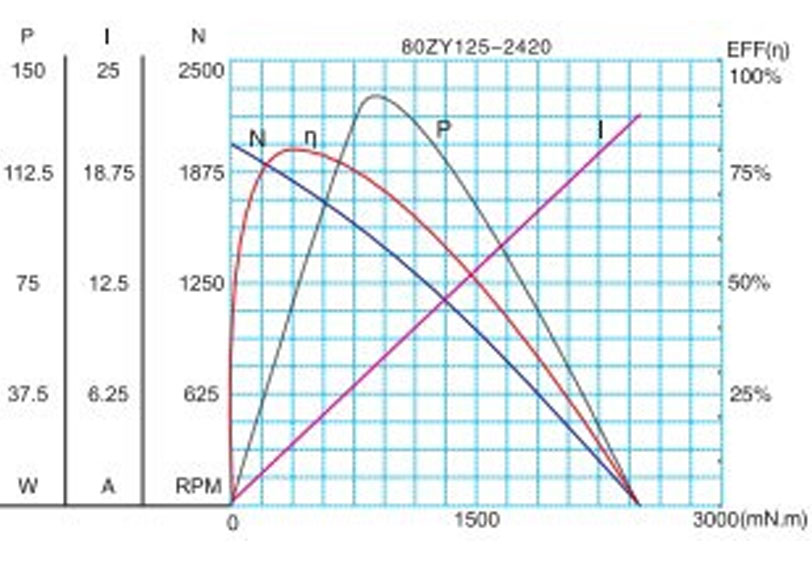

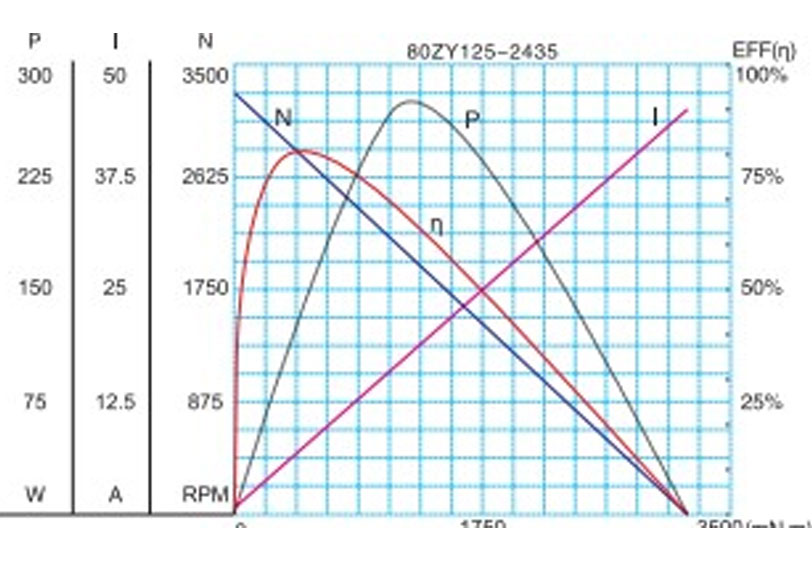

Motor Characteristic Figure

F-15

Technical parameters are subject to change without prior notice.*
