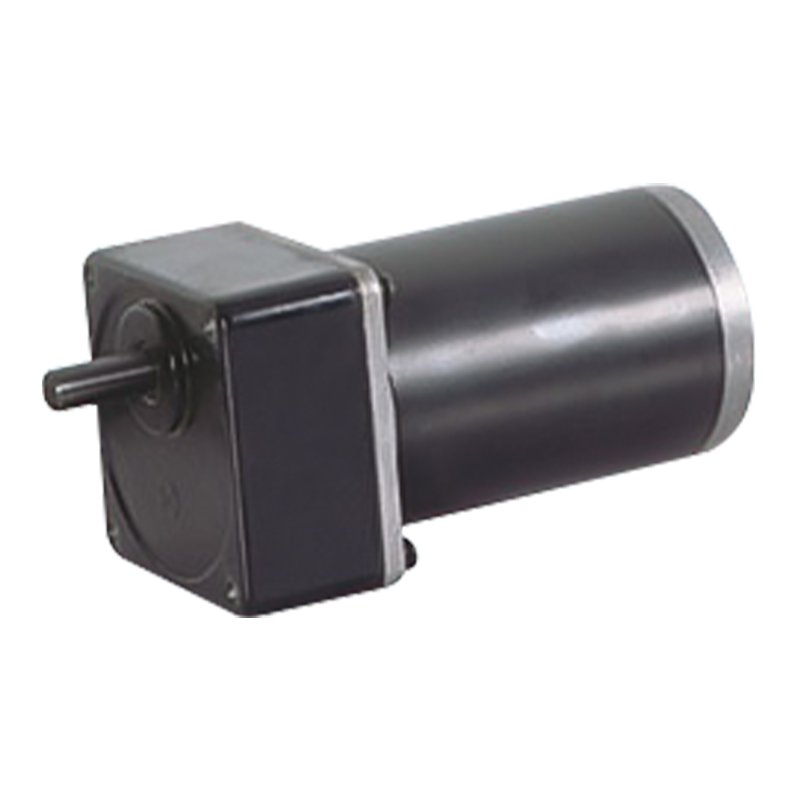

80JB100K/80ZY115 PWM 10N.m Permanent Magnet DC Brushed Spur Gear Motor

80JB100K/80ZY115 PWM 10N.m Permanent Magnet DC Brushed Spur Gear Motor

The 80JB100K/80ZY115 is a high-performance 80mm planetary gearbox designed for a wide range of applications requiring precise torque control. With an allowable load of 10N.m, the gearbox offers transmission efficiency and durability.
The speed can be directly controlled by adjusting the input voltage, and the speed regulation is simple (such as PWM voltage regulation), without complex control algorithms, and is suitable for low-cost speed regulation requirements. Combined with suitable position sensor and control system, brushed parallel gear motor can achieve more accurate position control. In the positioning link of the automated production line, the mechanical parts can be accurately positioned to the specified position, improving the degree of automation and precision of production.

  • 80JB100K/80ZY115 PWM 10N.m Permanent Magnet DC Brushed Spur Gear Motor
Download Product Inquiry
PREV：90JB200K/80ZY115 2000-3000rpm 20N.m Permanent Magnet DC Brushed Spur Gear Motor
NEXT：80JB100K/80ZY100 2000-3000rpm 10N.m Permanent Magnet DC Brushed Spur Gear Motor

+86 0579-86817938-836

[email protected]

80JB100K/80ZY115

Permissible Load Flange: 10N.m

PM DC Spur Gear Motor

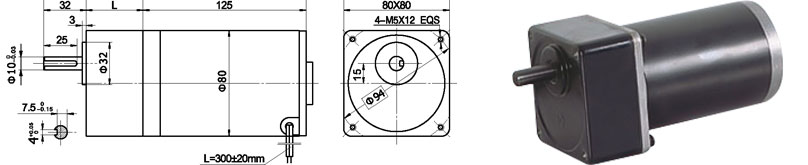

Dimensions

80mm integrated gearbox, with rated torque up to 10.0 N.m, alloy constructional steel gears, all equipped with ball bearings.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

80ZY115-2420

24

2000

0.3

1700

0.4

57

3.5

1.5

16

80ZY115-2430

24

3000

0.5

2600

0.44

120

7.5

2

33

Gear Motor Technical Data

Configuration 80ZY115-2420 DC Motor(80ZY115-2420 DC Motor)

Reduction ratio

3

5

7.5

10

12.5

15

25

30

50

Number of gear trains

2

2

2

2

2

2

3

3

3

Length(L) mm

32

32

32

32

32

32

43

43

43

No-load speed     r/min

667

400

267

200

160

133

80

67

40

Rated speed       r/min

567

340

227

170

136

113

68

57

34

Rated torque        N.m

0.97

1.6

2.4

3.2

4

4.8

7.3

8.7

10

Max. permissible load in a short time N.m

15

15

15

15

15

15

30

30

30

Direction of rotation

CW

CW

CW

CW

CW

CW

CCW

CCW

CCW
Configuration 80ZY115-2430 DC Motor(80ZY115-2430 DC Motor)

Reduction ratio

3

5

7.5

10

12.5

15

25

30

50

Number of gear trains

2

2

2

2

2

2

3

3

3

Length(L) mm

32

32

32

32

32

32

43

43

43

No-load speed     r/min

1000

600

400

300

240

200

120

100

60

Rated speed       r/min

800

520

347

260

208

173

104

87

52

Rated torque        N.m

1

1.8

2.7

3.6

4.5

5.4

8.2

9.8

10

Max. permissible load in a short time N.m

15

15

15

15

15

15

30

30

30

Direction of rotation

CW

CW

CW

CW

CW

CW

CCW

CCW

CCW

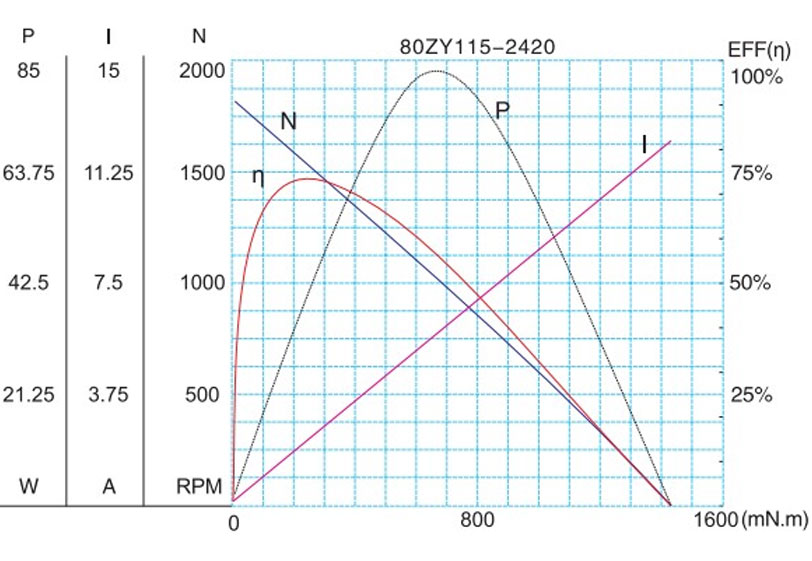

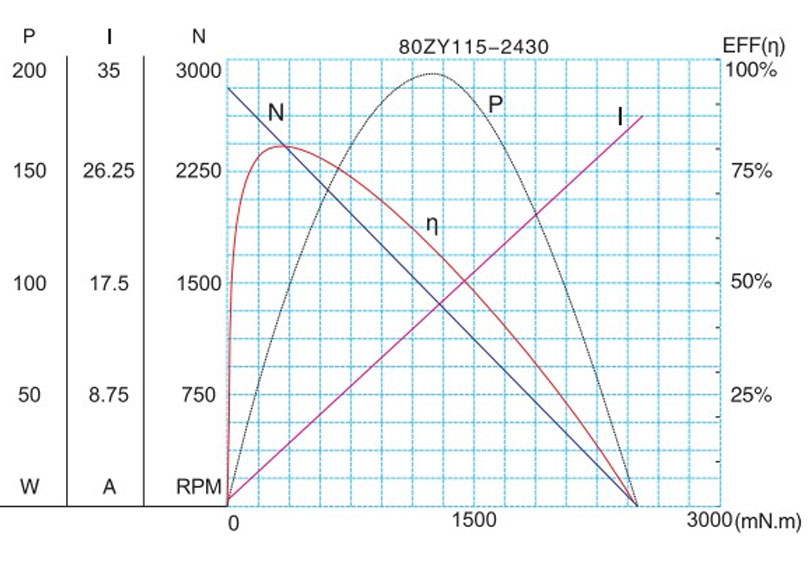

Motor Characteristic Figure

F-13

Technical parameters are subject to change without prior notice.*
