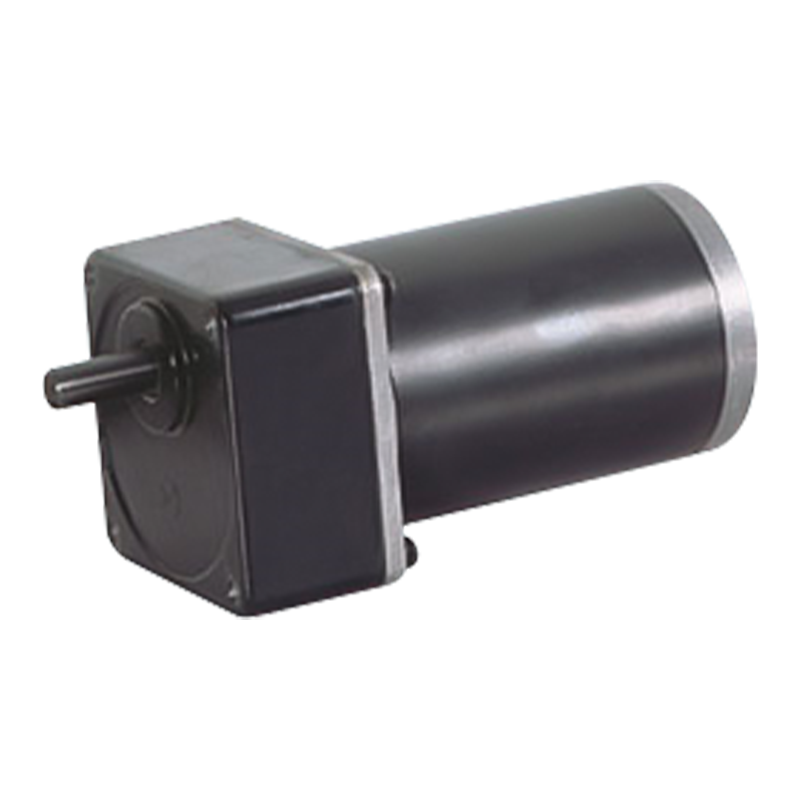

80JB100K/80ZY100 2000-3000rpm 10N.m Permanent Magnet DC Brushed Spur Gear Motor

80JB100K/80ZY100 2000-3000rpm 10N.m Permanent Magnet DC Brushed Spur Gear Motor

The permanent magnet DC gear motor 80JB100K/80ZY100 allows a load of 10 N.m, a no-load speed of 2000-3000rpm, and an outer diameter of 80 mm.
According to the actual application requirements, the brushed parallel gear motor can be easily expanded and upgraded. For example, by increasing the number of stages of the gearbox or changing the gear ratio, the output torque can be further increased or the speed range can be adjusted to adapt to different working requirements. At the same time, the function of the motor can also be enhanced by adding auxiliary devices such as encoders and brakes.

  • 80JB100K/80ZY100 2000-3000rpm 10N.m Permanent Magnet DC Brushed Spur Gear Motor
Download Product Inquiry
PREV：80JB100K/80ZY115 PWM 10N.m Permanent Magnet DC Brushed Spur Gear Motor
NEXT：70JB80K/60ZY105 12v/24v 8N.m Permanent Magnet DC Brushed Spur Gear Motor

+86 0579-86817938-836

[email protected]

80JB100K/80ZY100

Permissible Load Range: 10N.m

PM DC Spur Gear Motor

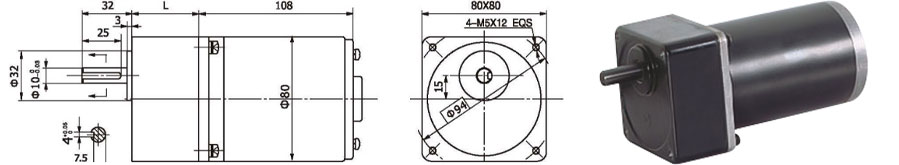

Dimensions

80mm integrated gearbox, with rated torque up to 10.0 N.m, alloy constructional steel gears, all equipped with ball bearings.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

80ZY100-2420

24

2000

0.4

1700

0.25

45

3

1.5

16

80ZY100-2430

24

3000

0.5

2600

0.3

80

5

1.8

22

Gear Motor Technical Data

Configuration 80ZY100-2420 DC Motor

Reduction ratio

3

5

6

7.5

9

10

12.5

15

18

20

25

30

36

40

50

60

75

Number of gear trains

2

2

2

2

2

2

2

2

2

3

3

3

3

3

3

4

4

Length(L) mm

32

32

32

32

32

32

32

32

32

43

43

43

43

43

43

43

43

No-load speed     r/min

667

400

333

267

222

200

160

133

111

100

80

67

56

50

40

33

27

Rated speed       r/min

567

340

283

227

189

170

136

113

94

85

68

57

47

43

34

28

23

Rated torque        N.m

0.68

1.1

1.2

1.5

1.8

2

2.5

3

3.6

3.7

4.6

5.5

6.6

7.3

9.1

9.9

10

Max. permissible load in a short time N.m

5

5

5

5

5

5

5

5

5

15

15

15

15

15

15

20

20

Direction of rotation

CW

CW

CW

CW

CW

CW

CW

CW

CW

CCW

CCW

CCW

CCW

CCW

CCW

CW

CW
Configuration 80ZY100-2430 DC Motor

Reduction ratio

3

5

6

7.5

9

10

12.5

15

18

20

25

30

36

40

50

60

75

Number of gear trains

2

2

2

2

2

2

2

2

2

3

3

3

3

3

3

4

4

Length(L) mm

32

32

32

32

32

32

32

32

32

43

43

43

43

43

43

43

43

No-load speed     r/min

1000

600

500

400

333

300

240

200

167

150

120

100

83

75

60

50

40

Rated speed       r/min

800

520

433

347

289

260

208

173

144

130

104

87

72

65

52

43

35

Rated torque        N.m

0.81

1.2

1.5

1.8

2.2

2.4

3

3.6

4.4

4.4

5.5

6.6

7.9

8.8

9.9

10

10

Max. permissible load in a short time N.m

5

5

5

5

5

5

5

5

5

15

15

15

15

15

15

20

20

Direction of rotation

CW

CW

CW

CW

CW

CW

CW

CW

CW

CCW

CCW

CCW

CCW

CCW

CCW

CW

CW

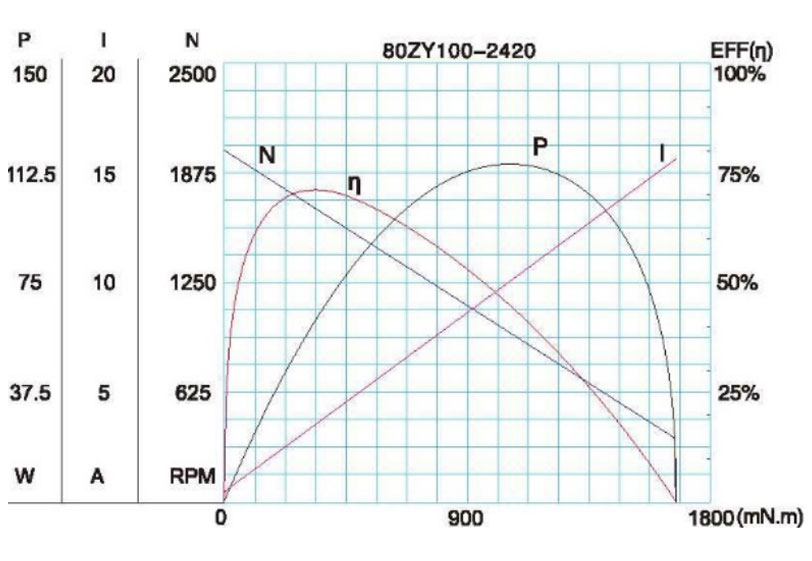

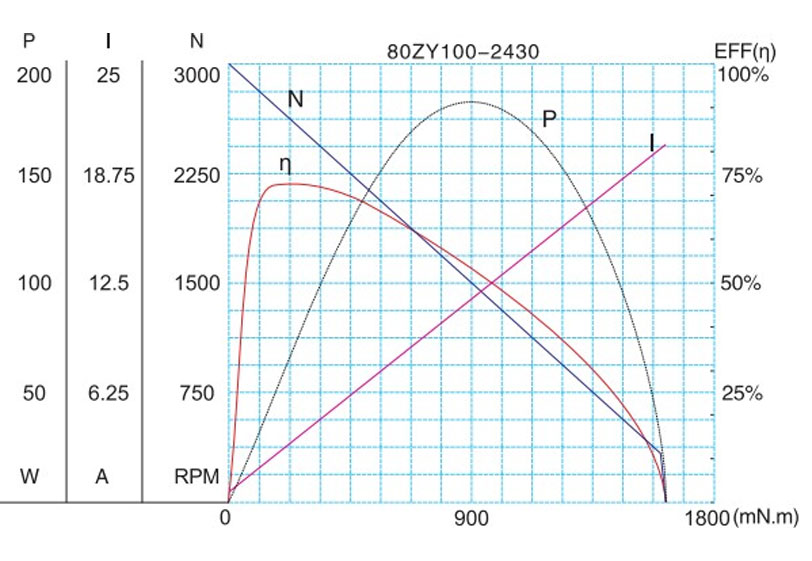

Motor Characteristic Figure

F-12

Technical parameters are subject to change without prior notice.*
