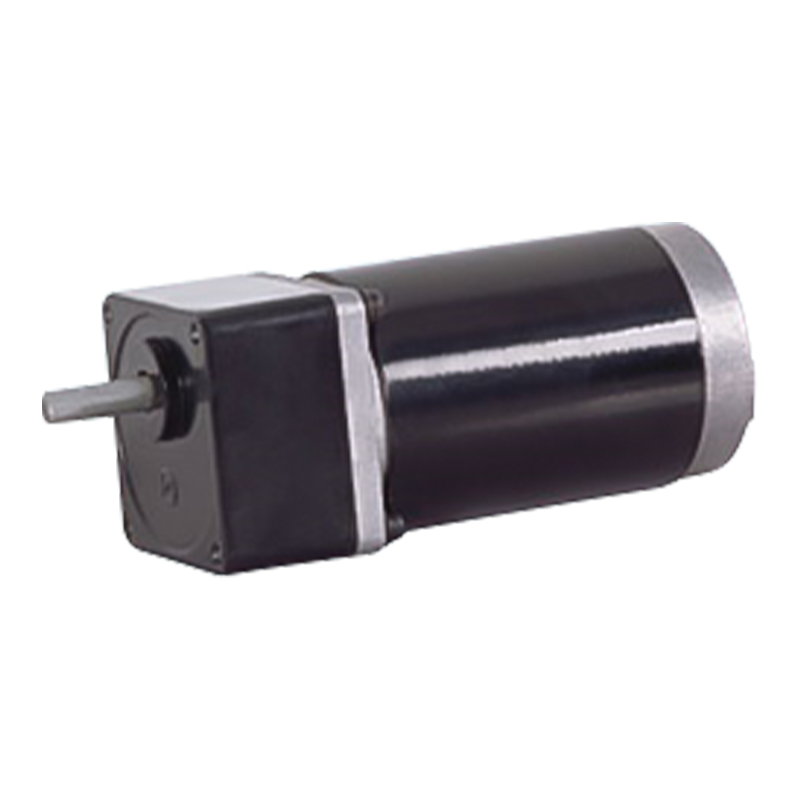

70JB80K/60ZY105 12v/24v 8N.m Permanent Magnet DC Brushed Spur Gear Motor

70JB80K/60ZY105 12v/24v 8N.m Permanent Magnet DC Brushed Spur Gear Motor

70JB80K/60ZY105 is a standard reducer with an outer diameter of 70 mm, supporting 12v/24v dual voltage environment, suitable for different energy efficiency scenarios.
The brushed parallel gear motor has a high degree of standardization; its installation size and interface form are more standardized, and it is easy to integrate with various equipment and systems. When designing new mechanical equipment or retrofitting existing equipment, it is easy to select the right brush parallel gear motor for installation and commissioning.

  • 70JB80K/60ZY105 12v/24v 8N.m Permanent Magnet DC Brushed Spur Gear Motor
Download Product Inquiry
PREV：80JB100K/80ZY100 2000-3000rpm 10N.m Permanent Magnet DC Brushed Spur Gear Motor
NEXT：70JB80K/60ZY75 Permanent Magnet DC Brushed Spur Gear Motor

+86 0579-86817938-836

[email protected]

70JB80K/60ZY105

Permissible Load Range: 8.0N.m

PM DC Spur Gear Motor

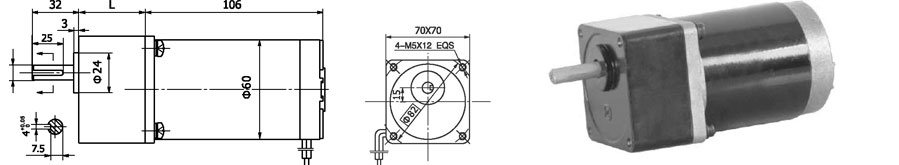

Dimensions

70mm integrated gearbox, with rated torque up to 8.0 N.m, alloy constructional steel gears, all equipped with ball bearings.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

60ZY105-2420

24

2000

0.25

1600

165

30

1.8

760

7.3

60ZY105-2430

24

3000

0.35

2400

180

45

2.2

790

11.2

Gear Motor Technical Data

Configuration 60ZY105-2420 DC Motor

Reduction ratio

50

60

75

90

100

Number of gear trains

3

4

4

4

4

No-load speed r/min

40

33

27

22

20

Rated speed r/min

32

26

21

18

16

Rated torque N.m

6

6.5

8

8

8

Max. permissible load in a short time N.m

8

16

16

16

16

Direction of rotation

CCW

CW

CW

CW

CW
Configuration 60ZY105-2430 DC Motor

Reduction ratio

50

60

75

90

100

Number of gear trains

3

4

4

4

4

No-load speed r/min

60

50

40

33

30

Rated speed r/min

48

40

32

26

24

Rated torque N.m

6.5

7.8

8

8

8

Max. permissible load in a short time N.m

8

16

16

16

16

Direction of rotation

CCW

CW

CW

CW

CW

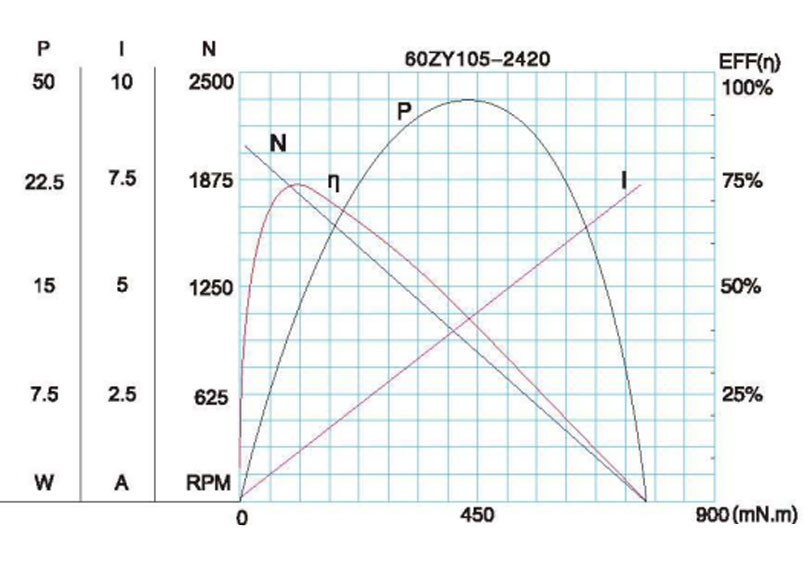

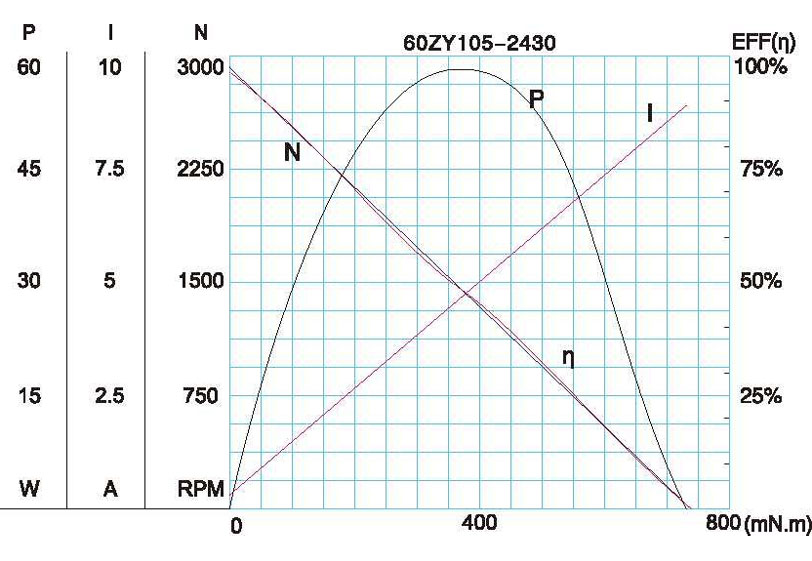

Motor Characteristic Figure

F-11

Technical parameters are subject to change without prior notice.*
