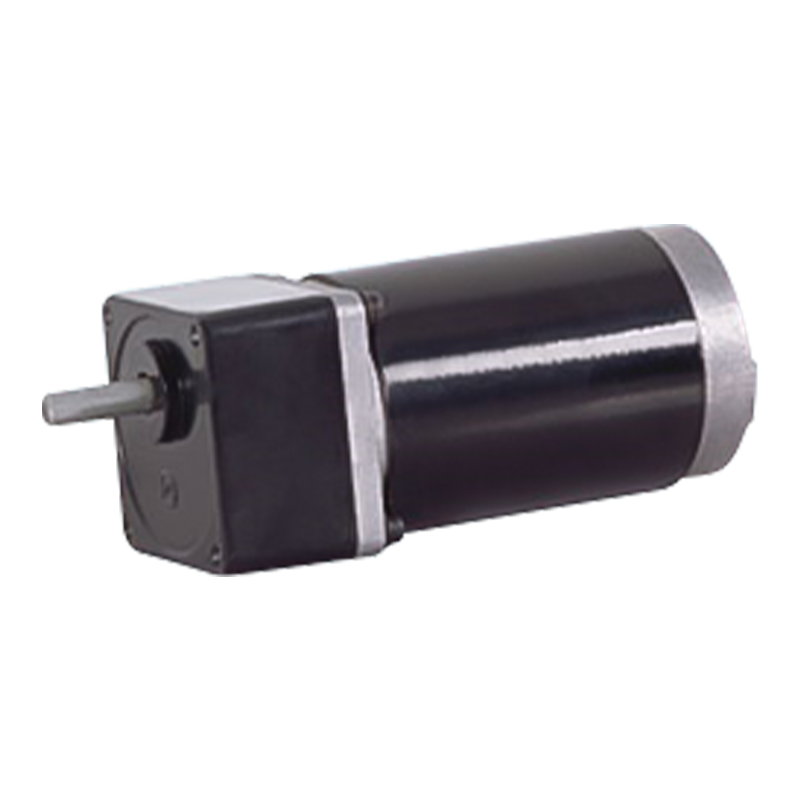

70JB80K/60ZY75 Permanent Magnet DC Brushed Spur Gear Motor

70JB80K/60ZY75 Permanent Magnet DC Brushed Spur Gear Motor

The permanent magnet DC gear motor 70JB80K/K/60ZY75 is a high-performance and reliable product suitable for applications requiring precise control and stable output. Its integrated gear reducer design features a rated torque of up to 8.0N.m, utilizing alloy structural steel gears and ball bearings to ensure high load capacity and long service life. The motor is available in various specifications, including different voltages, speeds, and gear ratios to meet diverse needs. Its compact size and standard mounting interface make it easy to integrate into various mechanical devices. Whether used in automated production lines, robots, or precision instruments, this gear motor delivers desirable performance.

  • 70JB80K/60ZY75 Permanent Magnet DC Brushed Spur Gear Motor
Download Product Inquiry
PREV：70JB80K/60ZY105 12v/24v 8N.m Permanent Magnet DC Brushed Spur Gear Motor
NEXT：60JB50K/60ZY105 60mm Permanent Magnet DC Brushed Spur Gear Motor

+86 0579-86817938-836

[email protected]

70JB80K/60ZY75

Permissible Load Range: 8.0N.m

PM DC Spur Gear Motor

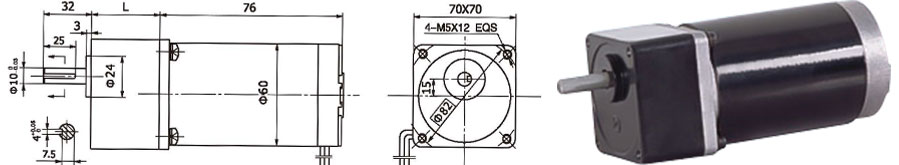

Dimensions

70mm integrated gearbox, with rated torque up to 8.0 N.m, alloy constructional steel gears, all equipped with ball bearings.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

60ZY75-2420

24

2000

0.3

1600

50

8

0.8

215

2.1

60ZY75-2430

24

3000

0.4

2400

70

17

1.2

296

5

60ZY75-2440

24

4000

0.5

3200

90

30

2.2

404

8.5

Gear Motor Technical Data

Configuration 60ZY75-2420 DC Motor

Reduction ratio

75

90

100

120

150

Number of gear trains

4

4

4

4

4

No-load speed r/min

27

22

20

17

13

Rated speed r/min

21

17

16

13

10

Rated torque N.m

2.7

3.2

3.6

43

5

Max. permissible load in a short time N.m

16

16

16

16

16

Direction of rotation

CW

CW

CW

CW

CW
Configuration 60ZY75-2430 DC Motor

Reduction ratio

75

90

100

120

150

Number of gear trains

4

4

4

4

4

No-load speed r/min

40

33

30

25

20

Rated speed r/min

32

26

24

20

16

Rated torque N.m

3.4

4.1

4.6

5.5

6.9

Max. permissible load in a short time N.m

16

16

16

16

16

Direction of rotation

CW

CW

CW

CW

CW

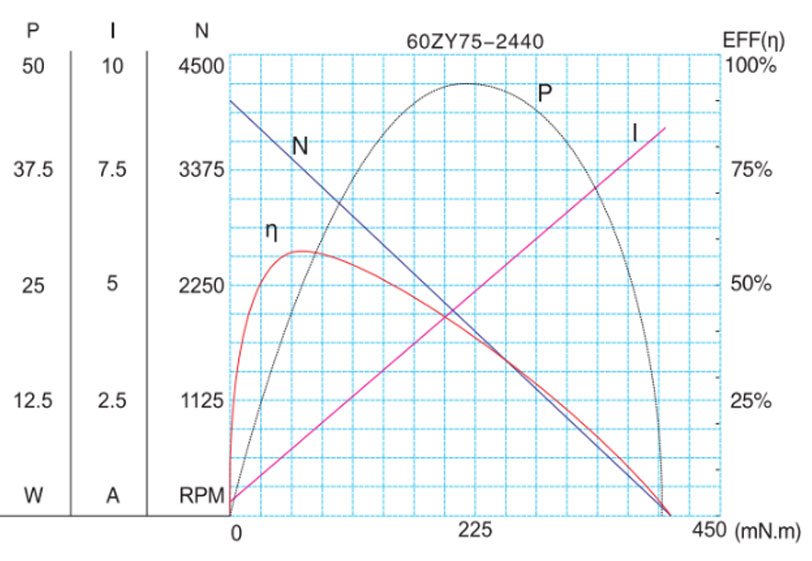

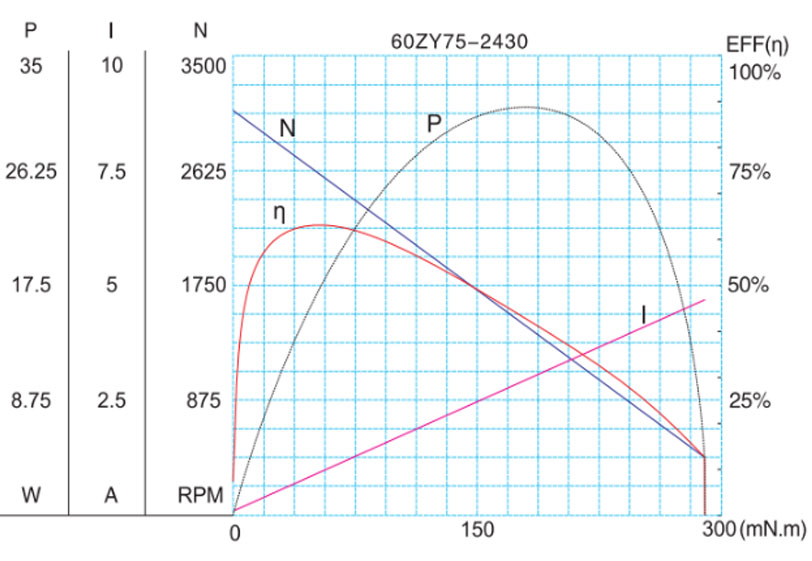

Motor Characteristic Figure

F-10

Technical parameters are subject to change without prior notice.*
