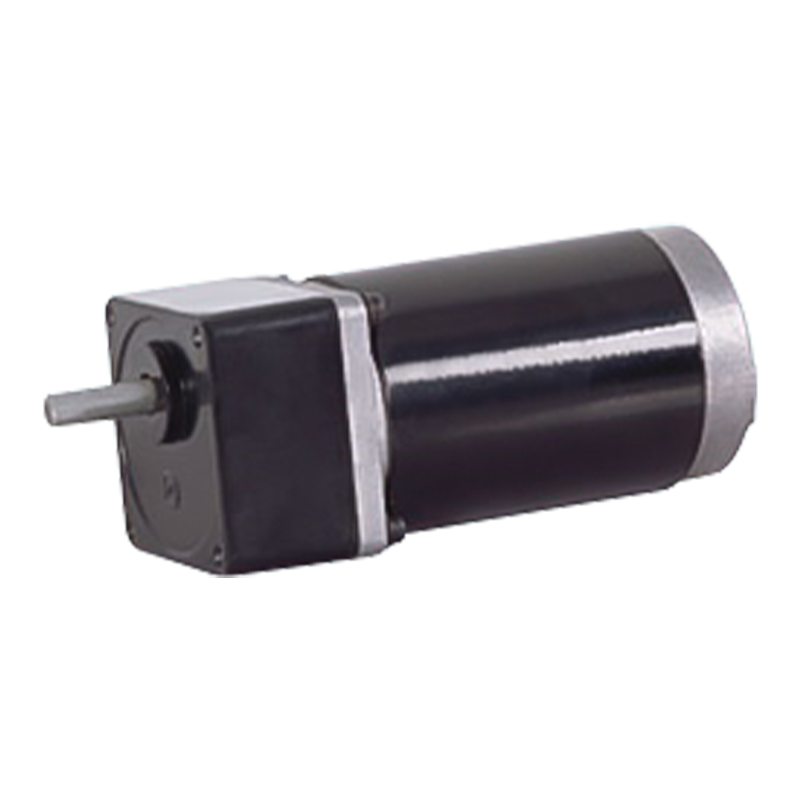

60JB50K/60ZY105 60mm Permanent Magnet DC Brushed Spur Gear Motor

60JB50K/60ZY105 60mm Permanent Magnet DC Brushed Spur Gear Motor

The 60JB50K/60ZY105 is an integral gear reducer with an outer diameter of 60mm, allowing a load of 5.0N.m. Alloy structural steel gear, all rolling bearing configuration.
Compared with some complex motor types, the structure of the brushed parallel gear motor is relatively strong and has a strong adaptability to harsh environments. In some industrial environments with large dust and high humidity, such as mines, cement plants, etc., brush parallel gear motors can still run stably after proper protection treatment. In low temperature environment, the performance of brushed parallel gear motor is relatively small. For example, for outdoor equipment in cold areas, such as snow plows, brushed parallel gear motors can start and work normally at low temperatures to ensure the normal operation of the equipment.

  • 60JB50K/60ZY105 60mm Permanent Magnet DC Brushed Spur Gear Motor
Download Product Inquiry
PREV：70JB80K/60ZY75 Permanent Magnet DC Brushed Spur Gear Motor
NEXT：60JB50K/60ZY75 Permanent Magnet Stable Brushed Spur Gear Motor

+86 0579-86817938-836

[email protected]

60JB50K/60ZY105

Permissible Load Range: 5.0 N.m

PM DC Spur Gear Motor

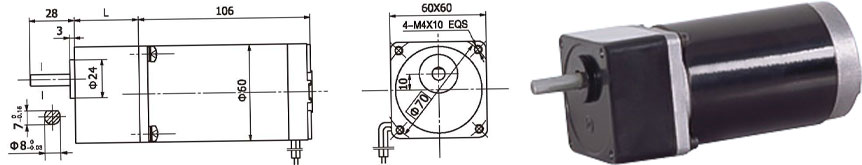

Dimensions

60mm integrated gearbox, with rated torque up to 5.0 N.m, alloy constructional steel gears, all equipped with ball bearings.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

60ZY105-2420

24

2000

0.25

1600

0.165

30

1.8

0.76

7.3

60ZY105-2430

24

3000

0.35

2400

0.18

45

2.2

0.79

11.2

Gear Motor Technical Data

Configuration 60ZY105-2420 DC Motor (60ZY105-2420 DC Motor)

Reduction ratio

3

5

6

7.5

9

10

12.5

15

20

25

30

36

40

50

Number of gear trains

2

2

2

2

2

2

2

2

3

3

3

3

3

3

Length(L) mm

32

32

32

32

32

32

32

32

40

40

40

40

40

40

No-load speed     r/min

667

400

333

267

222

200

160

133

100

80

67

56

50

40

Rated speed       r/min

533

320

266

213

177

160

128

106

80

64

53

44

40

32

Rated torque        N.m

0.4

0.66

0.8

1

1.2

1.3

1.6

2

2.4

3

3.6

4.3

4.8

6

Max. permissible load in a short time N.m

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

8

8

8

8

8

8

Direction of rotation

CW

CW

CW

CW

CW

CW

CW

CW

CCW

CCW

OCW

CCW

CCW

CCW
Configuration 6OZY105_243O DC Motor (60ZY105-2430 DC Motor)

Reduction ratio

3

5

6

7.5

9

10

12.5

15

20

25

30

36

40

50

Number of gear trains

2

2

2

2

2

2

2

2

3

3

3

3

3

3

Length(L) mm

32

32

32

32

32

32

32

32

40

40

40

40

40

40

No-load speed     r/min

1000

600

500

400

333

300

240

200

150

120

100

83

75

60

Rated speed       r/min

800

480

400

320

266

240

192

160

120

96

80

69

62

48

Rated torque        N.m

0.43

0.72

0.87

1.1

1.3

1.4

1.8

2.1

2.6

3.2

3.9

4.7

5

5

Max. permissible load in a short time N.m

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

8

8

8

8

8

8

Direction of rotation

CW

CW

CW

CW

CW

CW

CW

CW

CCW

CCW

CCW

CCW

CCW

CCW

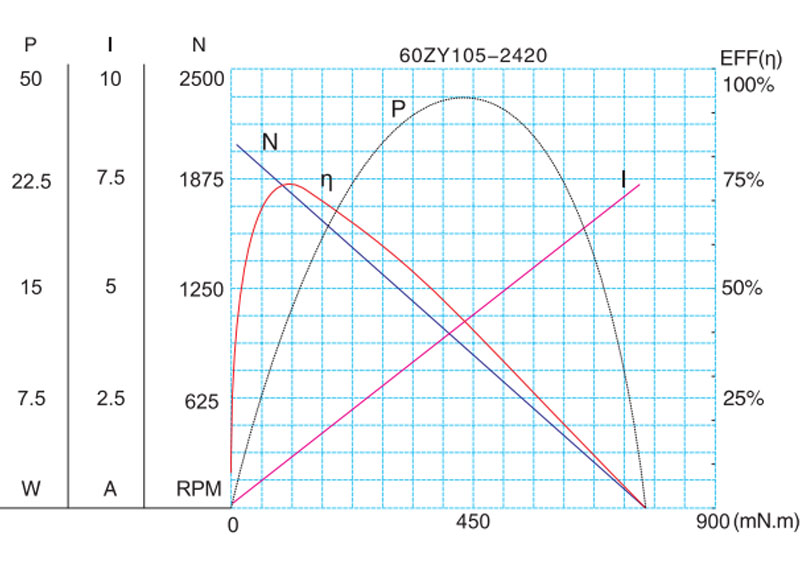

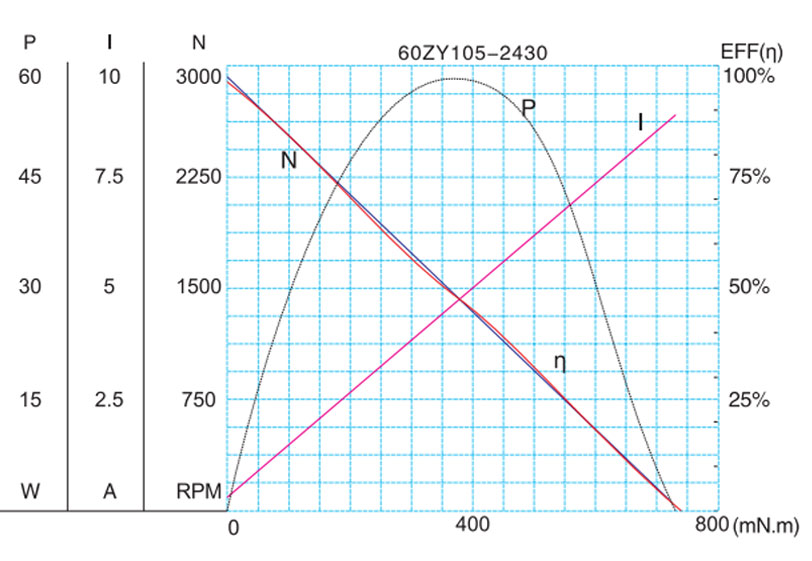

Motor Characteristic Figure

F-9

Technical parameters are subject to change without prior notice.*
