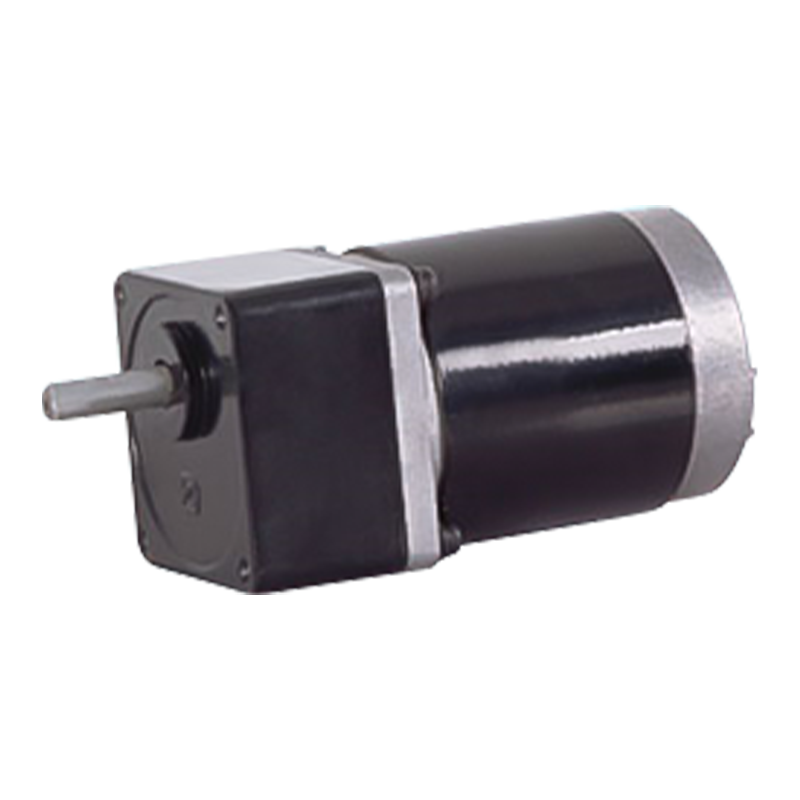

60JB50K/60ZY75 Permanent Magnet Stable Brushed Spur Gear Motor

60JB50K/60ZY75 Permanent Magnet Stable Brushed Spur Gear Motor

The 60JB50K/60ZY75 Permanent Magnet Stable Brushed Spur Gear Motor is a high-precision integrated drive solution engineered for industrial applications demanding stable torque output and precise motion control. Built with alloy structural steel gears and precision rolling bearings, it combines the efficiency of permanent magnet DC technology with a robust load capacity of up to 5.0N.m. The multi-stage optimized gear system achieves exceptional torque transmission efficiency and mechanical longevity, while advanced tooth profile machining ensures ultra-low noise levels outperforming industry standards. Ideal for robotics, automated production lines, and medical equipment, this motor excels in environments requiring continuous operation and noise sensitivity. Its modular design simplifies installation and supports compatibility with diverse industrial control protocols, enabling seamless integration into complex systems.

  • 60JB50K/60ZY75 Permanent Magnet Stable Brushed Spur Gear Motor
Download Product Inquiry
PREV：60JB50K/60ZY105 60mm Permanent Magnet DC Brushed Spur Gear Motor
NEXT：60JB50K/52ZY125 Rolling Bearings Permanent Magnet DC Brushed Spur Gear Motor

+86 0579-86817938-836

[email protected]

60JB50K/60ZY75

Permissible Load Range: 5.0 N.m

PM DC Spur Gear Motor

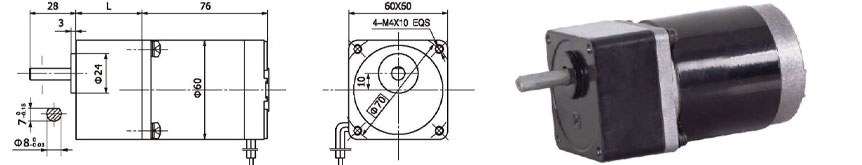

Dimensions

60mm integrated gearbox, with rated torque up to 5.0 N.m, alloy constructional steel gears, all equipped with ball bearings.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

60ZY75-2420

24

2000

0.3

1600

50

8

0.8

215

2.1

60ZY75-2430

24

3000

0.4

2400

70

17

1.2

296

5

60ZY75-2440

24

4000

0.5

3200

90

30

2.2

404

8.5

Gear Motor Technical Data

Configuration 60ZY75-2420 DC Motor (60ZY75-2420 DC Motor)

Reduction ratio

3

5

7.5

10

12.5

15

25

30

50

75

90

100

120

150

Number of gear trains

2

2

2

2

2

2

3

3

3

4

4

4

4

4

Length(L) mm

32

32

32

32

32

32

40

40

40

40

40

40

40

40

No-load speed     r/min

667

400

267

200

160

133

80

67

40

27

22

20

17

13

Rated speed       r/min

533

320

213

160

128

106

64

53

32

21

18

16

13

10.5

Rated torque        N.m

0.13

0.22

0.33

0.44

0.55

0.66

1

1.2

2

2.7

3.1

3.6

4.3

5

Max. permissible load in a short time N.m

2.5

2.5

2.5

2.5

2.5

2.5

5

5

5

10

10

10

10

10

Direction of rotation

CW

CW

CW

CW

CW

CW

CCW

CCW

CCW

CW

CW

CW

CW

CW
Configuration 60ZY75-2430 DC Motor (60ZY75-2430 DC Motor)

Reduction ratio

3

5

7.5

10

12.5

15

25

30

50

75

90

100

120

150

Number of gear trains

2

2

2

2

2

2

3

3

3

4

4

4

4

4

Length(L) mm

32

32

32

32

32

32

40

40

40

40

40

40

40

40

No-load speed     r/min

1000

600

400

300

240

200

120

100

60

40

33

30

25

20

Rated speed       r/min

800

480

320

240

192

160

96

80

48

32

26

24

20

16

Rated torque        N.m

0.17

0.28

0.42

0.56

0.7

0.85

1.2

1.5

2.5

3.8

4.5

5

5

5

Max. permissible load in a short time N.m

2.5

2.5

2.5

2.5

2.5

2.5

5

5

5

10

10

10

10

10

Direction of rotation

CW

CW

CW

CW

CW

CW

CCW

CCW

CCW

CW

CW

CW

CW

CW

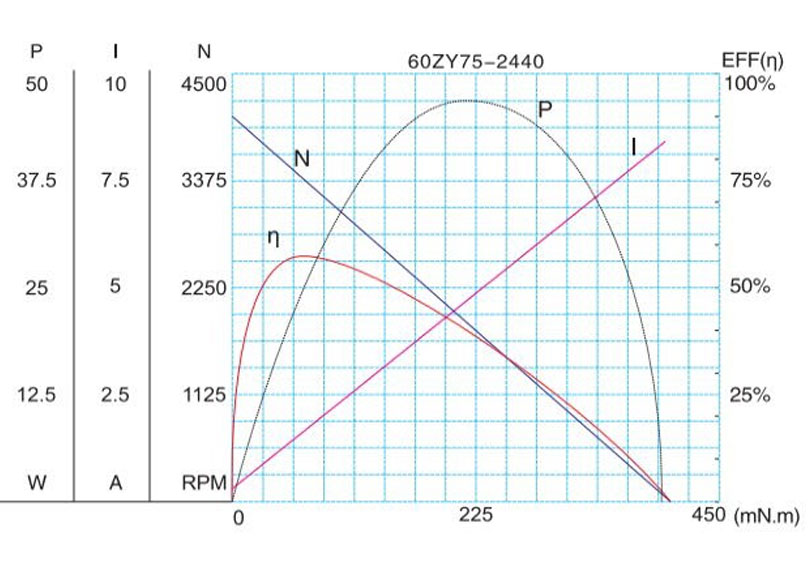

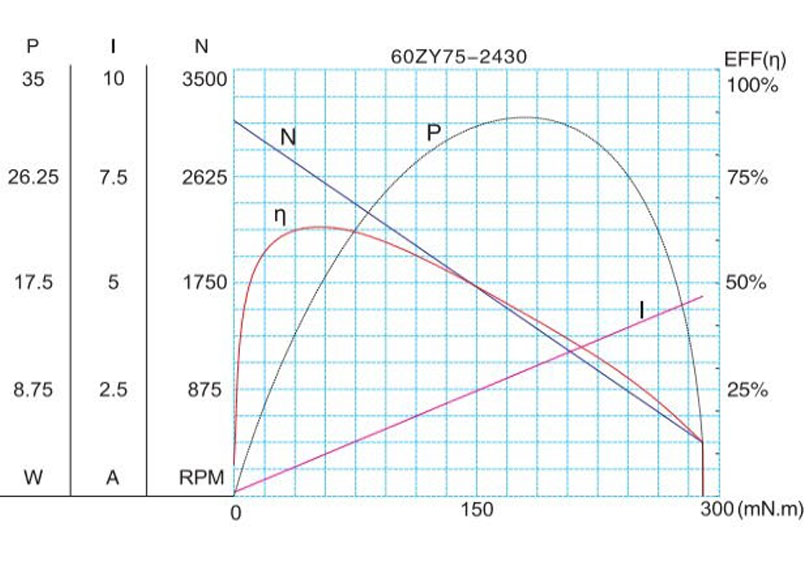

Motor Characteristic Figure

F-8

Technical parameters are subject to change without prior notice.*
