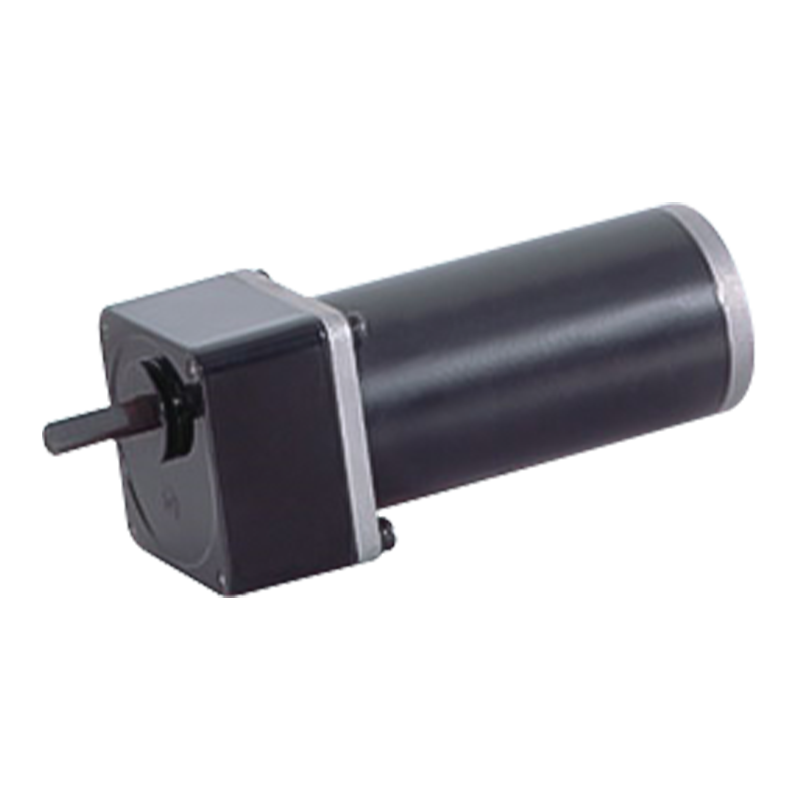

60JB50K/52ZY125 Rolling Bearings Permanent Magnet DC Brushed Spur Gear Motor

60JB50K/52ZY125 Rolling Bearings Permanent Magnet DC Brushed Spur Gear Motor

Product 60JB50K/52ZY125 is a 60mm integrated gear reducer that allows a load of 5N.m. Alloy structural steel gear, all rolling bearing configuration.
By adjusting the input voltage or current, the speed of the motor can be controlled more accurately. In some equipment that requires precise control of speed, such as winding devices in textile machinery, brushed parallel gear motors can ensure that the speed of yarn winding is stable and accurate, ensuring product quality. Combined with suitable position sensor and control system, brushed parallel gear motor can achieve more accurate position control. In the positioning link of the automated production line, the mechanical parts can be accurately positioned to the specified position, improving the degree of automation and precision of production.

  • 60JB50K/52ZY125 Rolling Bearings Permanent Magnet DC Brushed Spur Gear Motor
Download Product Inquiry
PREV：60JB50K/60ZY75 Permanent Magnet Stable Brushed Spur Gear Motor
NEXT：60JB50K/52ZY95 5N.m Permanent Magnet DC Brushed Spur Gear Motor

+86 0579-86817938-836

[email protected]

60JB50K/52ZY125

Permissible Load Range: 5.0Nm

PM DC Spur Gear Motor

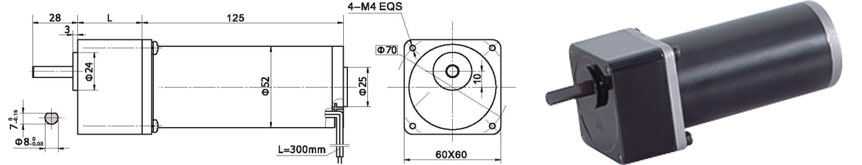

Dimensions

60mm integrated gearbox, with rated torque up to 5.0 N.m, alloy constructional steel gears, all equipped with ball bearings.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

52ZY125-2420

24

2000

0.4

1600

160

30

2

620

6.5

52ZY125-2430

24

3000

0.6

2400

190

50

3.5

700

11.5

Gear Motor Technical Data

Configuration 60ZY75-2420 DC Motor (52ZY125-2420 DC Motor)

Reduction ratio

3

5

7.5

10

12.5

15

25

30

50

Number of gear trains

2

2

2

2

2

2

3

3

3

Length(L) mm

32

32

32

32

32

32

40

40

40

No-load speed     r/min

667

400

267

200

160

133

80

67

40

Rated speed       r/min

533

320

213

160

128

106

64

53

32

Rated torque        N.m

0.38

0.64

0.97

1.2

1.6

1.9

3.2

3.8

5

Max. permissible load in a short time N.m

5

5

5

5

15

15

15

15

15

Direction of rotation

CW

CW

CW

CW

CW

CW

CCW

CCW

CCW
Configuration 52ZY125-2430 DC Motor (52ZY125-2430 DC Motor)

Reduction ratio

3

5

7.5

10

12.5

15

25

30

50

Number of gear trains

2

2

2

2

2

2

3

3

3

Length(L) mm

32

32

32

32

32

32

40

40

40

No-load speed     r/min

1000

600

400

300

240

200

120

100

60

Rated speed       r/min

800

480

320

240

192

160

96

80

48

Rated torque        N.m

0.46

0.76

1.1

1.5

1.9

2.3

3.1

3.7

5

Max. permissible load in a short time N.m

2.5

2.5

2.5

2.5

2.5

2.5

5

5

5

Direction of rotation

CW

CW

CW

CW

CW

CW

CCW

CCW

CCW

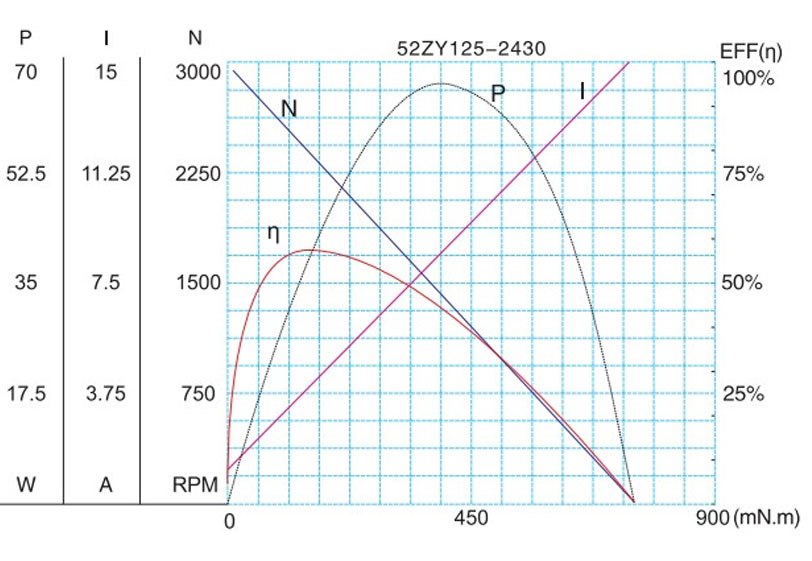

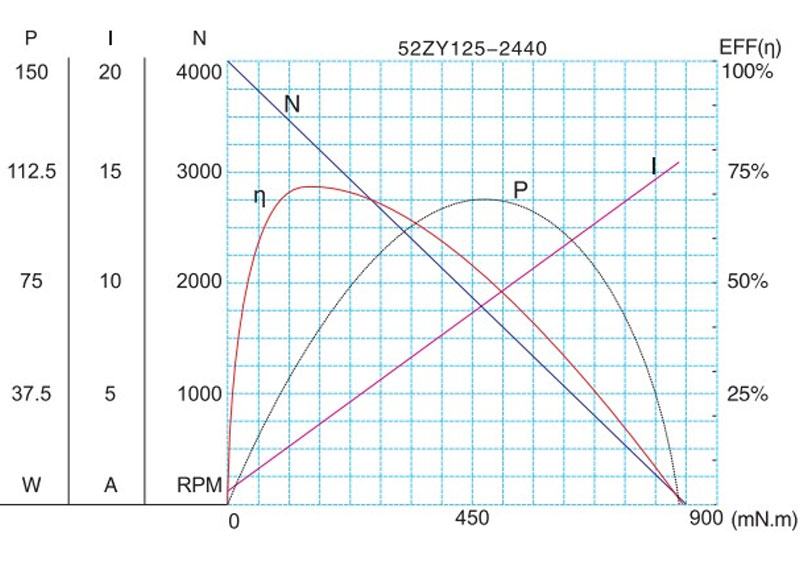

Motor Characteristic Figure

F-7

Technical parameters are subject to change without prior notice.*
