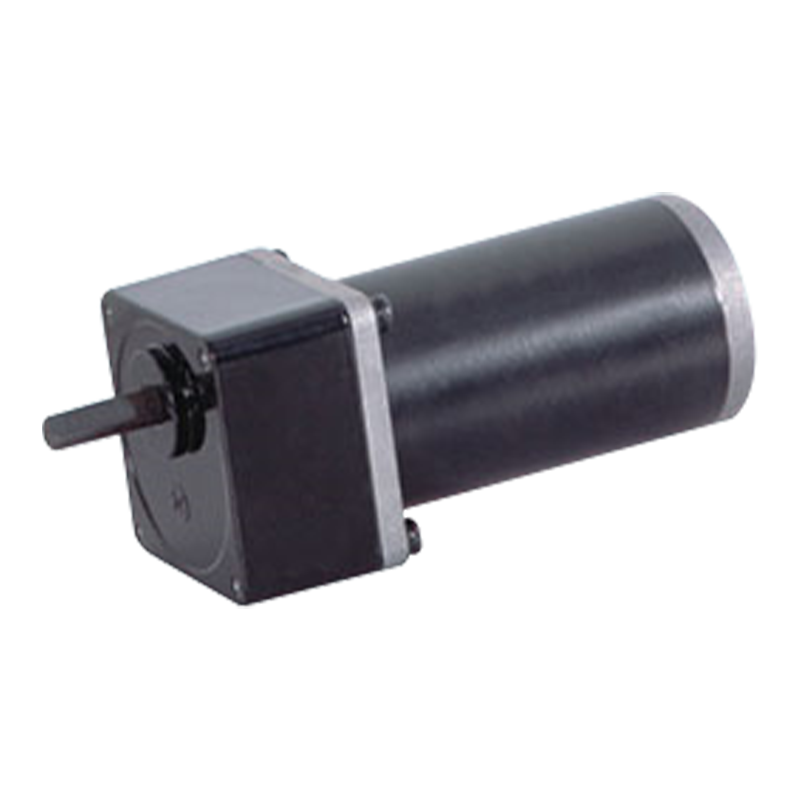

60JB50K/52ZY95 5N.m Permanent Magnet DC Brushed Spur Gear Motor

60JB50K/52ZY95 5N.m Permanent Magnet DC Brushed Spur Gear Motor

The 60JB50K/52ZY95 is an integral gear reducer with an outer diameter of 60mm, allowing load 5.0N.m, alloy structural steel gear, all rolling bearing configurations.
The ability to output a large torque at the start of the moment, which makes the equipment connected to the brushed parallel gear motor, such as the robot arm in some industrial automation equipment, can quickly drive the load when starting and quickly enter the working state. It can withstand large overloads in a short period of time, for example in material handling equipment, when occasionally encountering overweight goods, brush parallel gear motors can overcome overloads to a certain extent by their characteristics, avoiding immediate equipment shutdown.

  • 60JB50K/52ZY95 5N.m Permanent Magnet DC Brushed Spur Gear Motor
Download Product Inquiry
PREV：60JB50K/52ZY125 Rolling Bearings Permanent Magnet DC Brushed Spur Gear Motor
NEXT：37JBE10K/36ZY57 37mm 1N.m Permanent Magnet DC Brushed Spur Gear Motor

+86 0579-86817938-836

[email protected]

60JB50K/52ZY95

Permissible Load Range: 5.0N.m

PM DC Spur Gear Motor

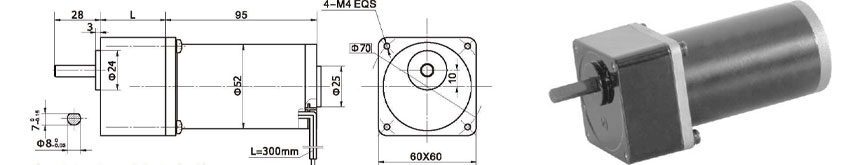

Dimensions

60mm integrated gearbox, with rated torque up to 5.0 N.m, alloy constructional steel gears, all equipped with ball bearings.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

52ZY95-2420

24

2000

0.2

1600

80

15

1.2

0.4

4.2

52ZY95-2430

24

3000

0.3

2400

100

25

1.8

0.41

6

Gear Motor Technical Data

Configuration 52ZY95-2420 DC Motor

Reduction ratio

3

5

7.5

10

12.5

15

25

30

50

75

90

100

120

Number of gear trains

2

2

2

2

2

2

3

3

3

4

4

4

4

Length(L) mm

32

32

32

32

32

32

40

40

40

40

40

40

40

No-load speed     r/min

667

400

267

200

160

133

80

67

40

27

22

20

16

Rated speed       r/min

533

320

213

160

128

106

64

53

32

21

18

16

13

Rated torque        N.m

0.19

0.32

0.48

0.64

0.81

0.97

1.4

1.7

2.9

3.9

4.7

5

5

Max. permissible load in a short time N.m

2.5

2.5

2.5

2.5

2.5

2.5

5

5

5

10

10

10

10

Direction of rotation

CW

CW

CW

CW

CW

CW

CCW

CCW

CCW

CW

CW

CW

CW
Configuration 52ZY95-2435 DC Motor

Reduction ratio

3

5

7.5

10

12.5

15

25

30

50

75

90

Number of gear trains

2

2

2

2

2

2

3

3

3

4

4

Length(L) mm

32

32

32

32

32

32

40

40

40

40

40

No-load speed     r/min

1000

600

400

300

240

200

120

100

60

40

33

Rated speed       r/min

800

480

320

240

192

160

96

80

48

32

26

Rated torque        N.m

0.24

0.4

0.6

0.8

1

1.2

1.8

2.1

3.6

4.9

5

Max. permissible load in a short time N.m

2.5

2.5

2.5

2.5

2.5

2.5

5

5

5

10

10

Direction of rotation

CW

CW

CW

CW

CW

CW

CCW

CCW

CCW

CW

CW

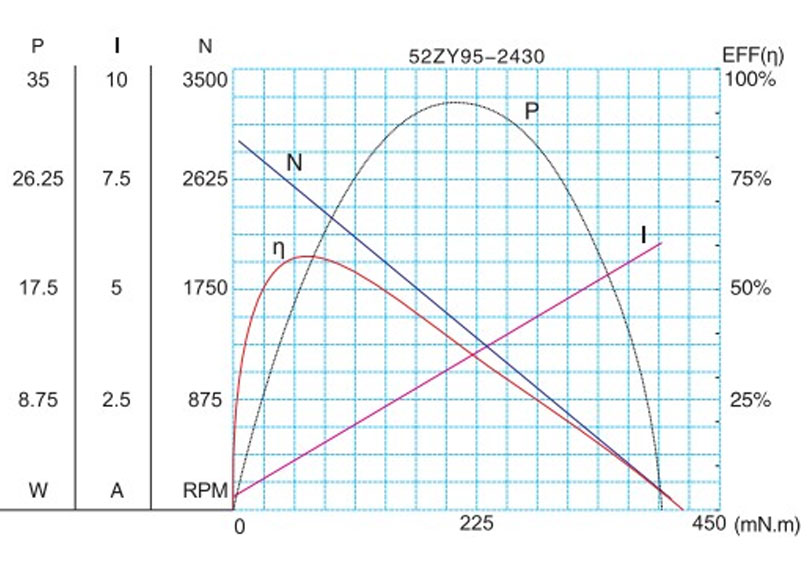

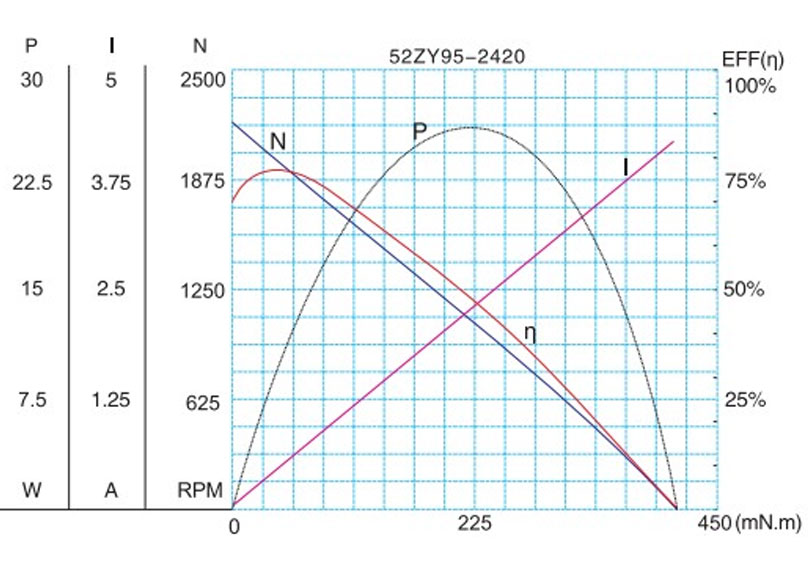

Motor Characteristic Figure

F-6

Technical parameters are subject to change without prior notice.*
