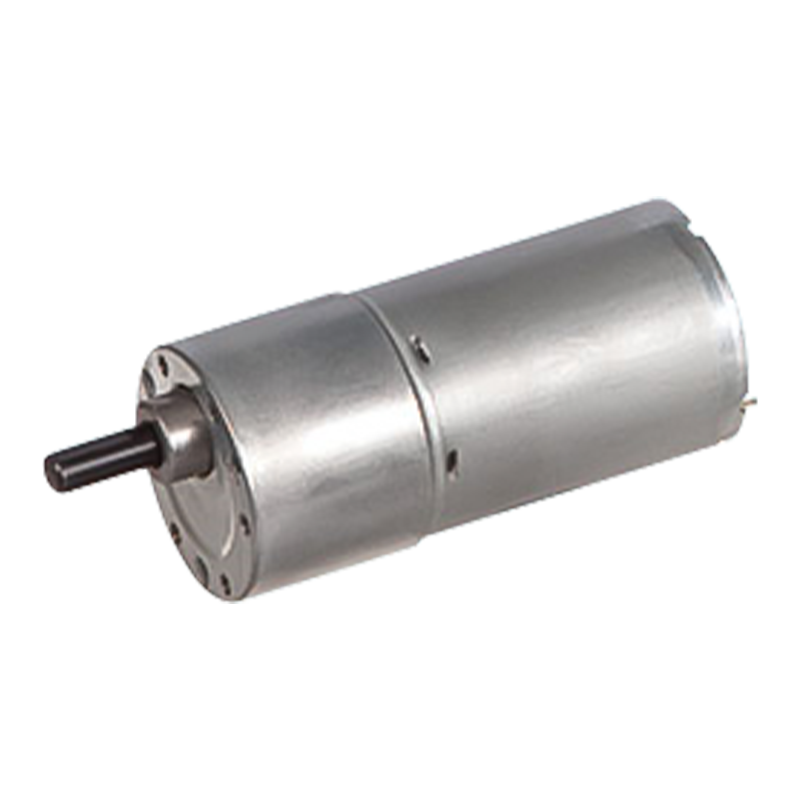

37JBE10K/36ZY57 37mm 1N.m Permanent Magnet DC Brushed Spur Gear Motor

37JBE10K/36ZY57 37mm 1N.m Permanent Magnet DC Brushed Spur Gear Motor

The 37JBE10K/36ZY57 is a compact power unit with an outer diameter of 37mm, allowing a torque range of 1.0N.m to 37mm and a no-load speed of 3600 to 4200 rpm.
The speed can be directly controlled by adjusting the input voltage, and the speed regulation is simple (such as PWM voltage regulation), without complex control algorithms, and is suitable for low-cost speed regulation requirements. In scenarios with low load or intermittent work (such as household appliances, automatic curtains, etc.), the brush wear problem of brushed motors is not significant, and the overall reliability is high. The mechanical structure of the parallel gearbox is stable, the gear wear is small, and the life is long.

  • 37JBE10K/36ZY57 37mm 1N.m Permanent Magnet DC Brushed Spur Gear Motor
Download Product Inquiry
PREV：60JB50K/52ZY95 5N.m Permanent Magnet DC Brushed Spur Gear Motor
NEXT：37JBE10K/36ZY50 37mm 3600-4200rpm Permanent Magnet DC Brushed Spur Gear Motor

+86 0579-86817938-836

[email protected]

37JBE10K/36ZY57

37mm OD Planetary Gearbox,

Permissible Load Range: 1.0N.m

PM DC Spur Gear Motor

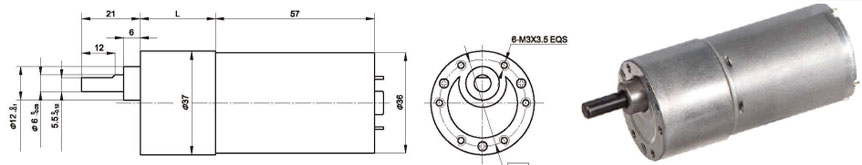

Dimensions

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

36ZY57-2436

24

3600

120

3000

17

5

0.5

89

2

36ZY57-2442

24

4200

120

3600

19

7

0.52

124

2.7

Gear Motor Technical Data

Configuration 36ZY57-2436 DC Motor

Reduction ratio

6

10

18

30

50

75

100

150

Number of gear trains

2

2

3

3

4

4

4

5

Length(L) mm

21.5

21.5

26.5

26.5

29

29

29

31.5

No-load speed     r/min

600

360

200

120

72

48

36

24

Rated speed       r/min

500

300

167

100

60

40

30

20

Rated torque        N.m

0.09

0.14

0.22

0.37

0.61

0.78

1

1

Max. permissible load in a short time N.m

0.5

0.5

1

1

2

2

2

3

Direction of rotation

CCW

CCW

CW

CW

CCW

CCW

CCW

CW
Configuration 36ZY57-2442 DC Motor

Reduction ratio

6

10

18

30

50

75

100

150

Number of gear trains

2

2

3

3

4

4

4

5

Length(L) mm

21.5

21.5

26.5

26.5

29

29

29

31.5

No-load speed     r/min

700

420

233

140

84

56

42

28

Rated speed       r/min

600

360

200

120

72

48

36

24

Rated torque        N.m

0.1

0.16

0.25

0.41

0.68

0.87

1

1

Max. permissible load in a short time N.m

0.5

0.5

1

1

2

2

2

3

Direction of rotation

CCW

CCW

CW

CW

CCW

CCW

CCW

CW

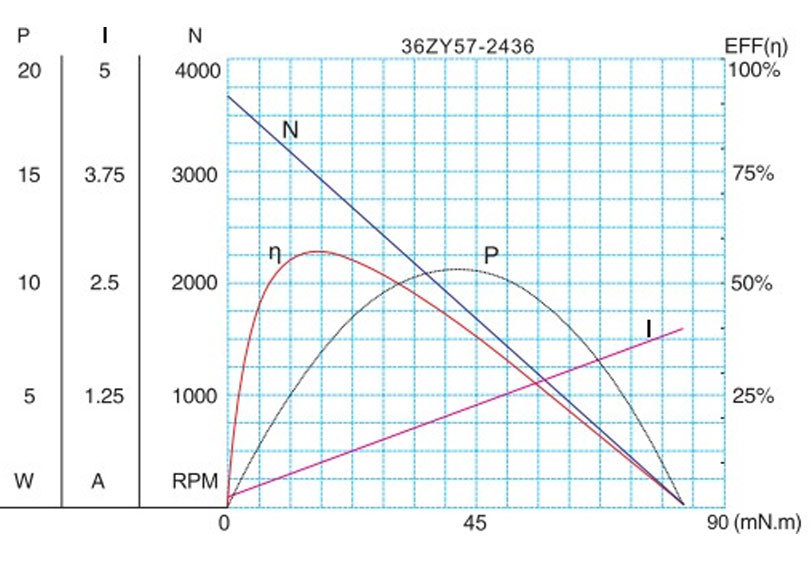

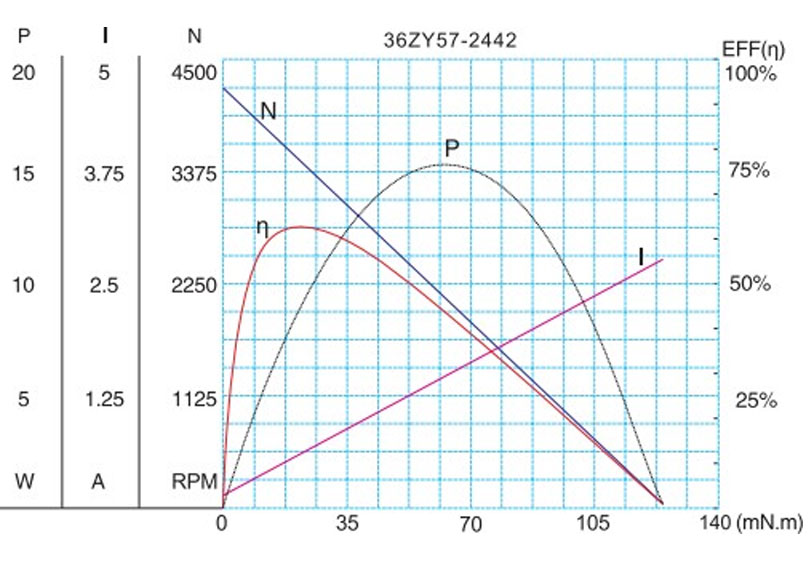

Motor Characteristic Figure

F-5

Technical parameters are subject to change without prior notice.*
