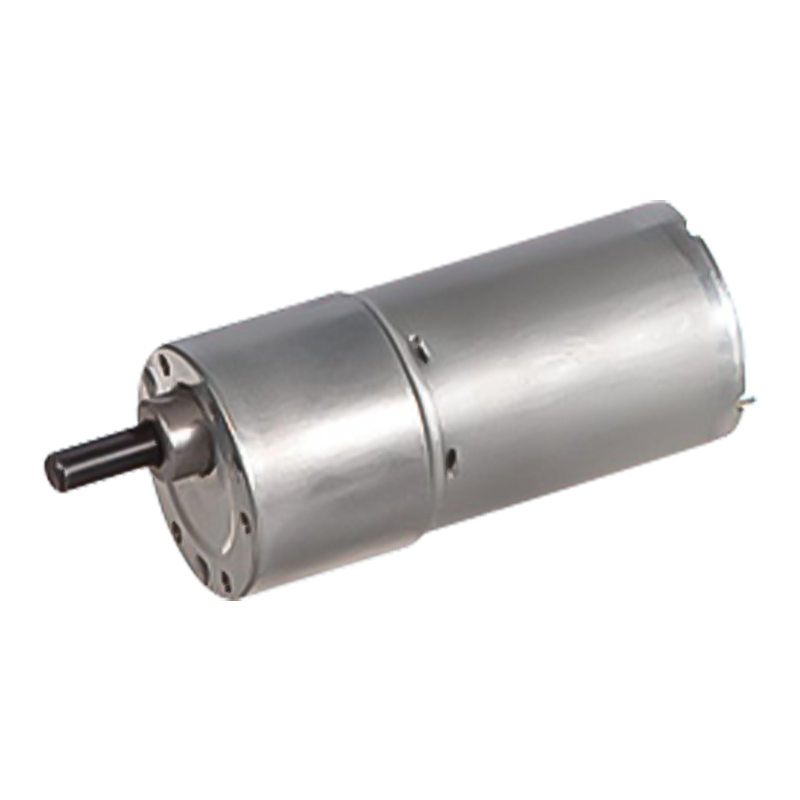

37JBE10K/36ZY50 37mm 3600-4200rpm Permanent Magnet DC Brushed Spur Gear Motor

37JBE10K/36ZY50 37mm 3600-4200rpm Permanent Magnet DC Brushed Spur Gear Motor

The 37JBE10K/36ZY50 permanent magnet DC gear motor has an outer diameter of 37 mm and can be used in a dual voltage environment of 12v/24v with a no-load speed of 3600-4200rpm.
The structure is simple, without complex electronic controllers (such as the drive circuit required for brushless motors), and the manufacturing cost is low. The parallel shaft gearbox design is mature, the processing and assembly process is simple, suitable for mass production, and further reduce costs. Brushed motors naturally have high starting torque, and when reduced with parallel gears, the output torque can be further amplified, suitable for applications requiring high starting loads (such as power tools, toy cars, etc.).

  • 37JBE10K/36ZY50 37mm 3600-4200rpm Permanent Magnet DC Brushed Spur Gear Motor
Download Product Inquiry
PREV：37JBE10K/36ZY57 37mm 1N.m Permanent Magnet DC Brushed Spur Gear Motor
NEXT：37JB6K/35ZY40 12v/24v 37mm 0.6N.m Permanent Magnet DC Brushed Spur Gear Motor

+86 0579-86817938-836

[email protected]

37JBE10K/36ZY50

37mm OD Planetary Gearbox

Permissible Load Range: 1.0N.m

PM DC Spur Gear Motor

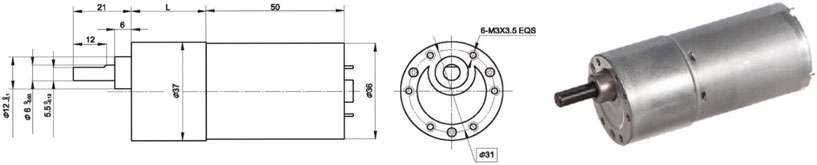

Dimensions

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

36ZY50-2436

24

3600

100

3000

11

3.4

0.4

58

1.7

36ZY50-2442

24

4200

120

3450

12

4.2

0.43

52

1.6

Gear Motor Technical Data

Configuration 36ZY50-2436 DC Motor

Reduction ratio

6

10

18

30

50

75

100

150

200

250

Number of gear trains

2

2

3

3

4

4

4

5

5

5

Length(L) mm

21.5

21.5

26.5

26.5

29

29

29

31.5

31.5

31.5

No-load speed     r/min

600

360

200

120

72

48

36

24

18

14

Rated speed       r/min

500

300

167

100

60

40

30

20

15

12

Rated torque        N.m

0.06

0.09

0.14

0.24

0.4

0.5

0.67

1

1

1

Max. permissible load in a short time N.m

0.5

0.5

1

1

2

2

2

3

3

3

Direction of rotation

CCW

CCW

CW

CW

CCW

CCW

CCW

CW

CW

CW
Configuration 36ZY50-2442 DC Motor

Reduction ratio

6

10

18

30

50

75

100

150

200

250

Number of gear trains

2

2

3

3

4

4

4

5

5

5

Length(L) mm

21.5

21.5

26.5

26.5

29

29

29

31.5

31.5

31.5

No-load speed     r/min

700

420

233

140

84

56

42

28

21

17

Rated speed       r/min

583

350

194

117

70

47

35

23

18

14

Rated torque        N.m

0.06

0.1

0.16

0.26

0.42

0.55

0.73

1

1

1

Max. permissible load in a short time N.m

0.5

0.5

1

1

2

2

2

3

3

3

Direction of rotation

CCW

CCW

CW

CW

CCW

CCW

CCW

CW

CW

CW

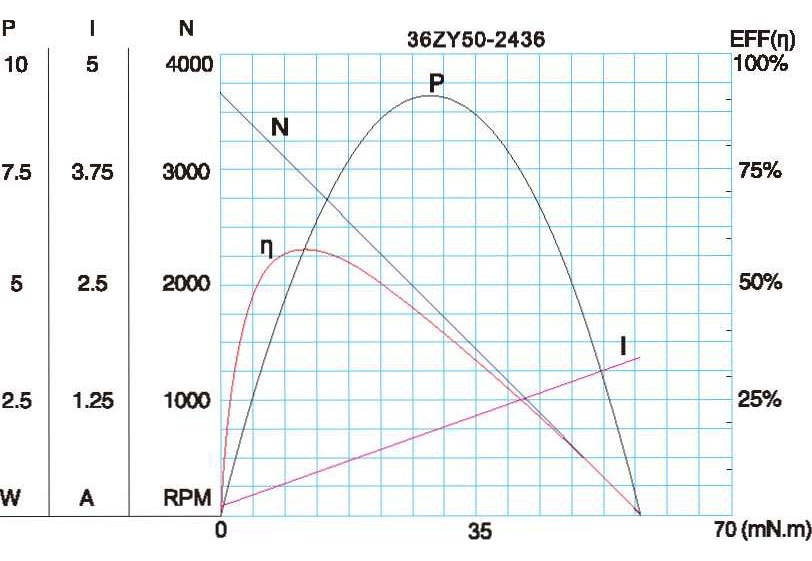

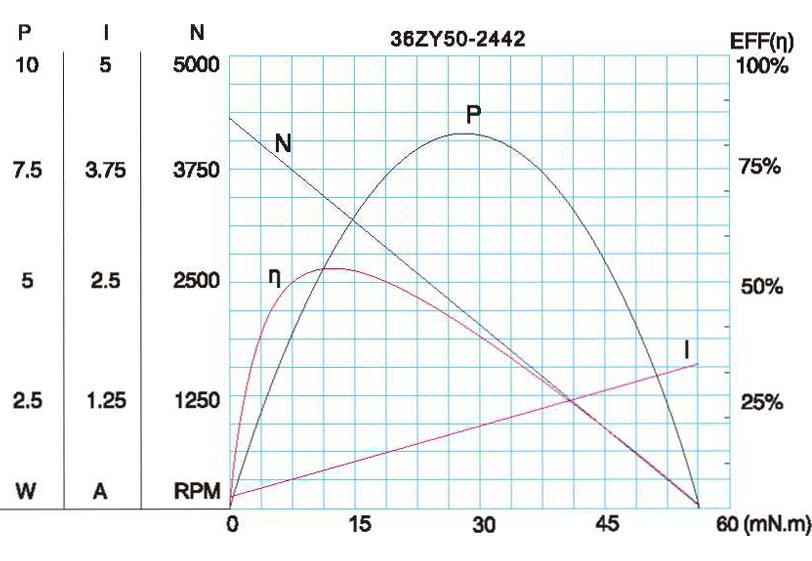

Motor Characteristic Figure

F-4

Technical parameters are subject to change without prior notice.*
