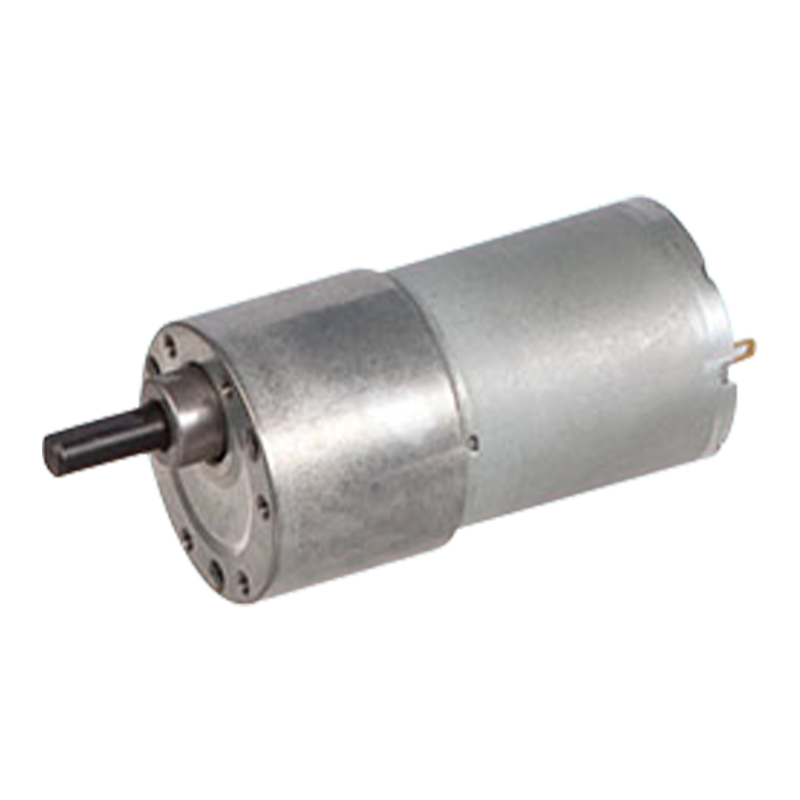

37JB6K/35ZY40 12v/24v 37mm 0.6N.m Permanent Magnet DC Brushed Spur Gear Motor

37JB6K/35ZY40 12v/24v 37mm 0.6N.m Permanent Magnet DC Brushed Spur Gear Motor

Permanent magnet DC gear motor 37JB6K/35ZY40 is a planetary reducer with an outer diameter of 37 mm, suitable for 12v/24v dual voltage environment, can be applied to a variety of environments.
The compact structure and small axial size of the parallel shaft gearbox are suitable for space-limited scenarios (such as small robots, home appliances, etc.). Parallel gear transmission is stable, low noise, can provide more stable power output, make the equipment run more stable and reliable, suitable for the operation of high-stability requirements of the equipment. The brush motor can easily achieve speed regulation by changing the input voltage, and with the parallel gear box, it can provide the right speed and torque under different working conditions to meet a variety of work needs.

  • 37JB6K/35ZY40 12v/24v 37mm 0.6N.m Permanent Magnet DC Brushed Spur Gear Motor
Download Product Inquiry
PREV：37JBE10K/36ZY50 37mm 3600-4200rpm Permanent Magnet DC Brushed Spur Gear Motor
NEXT：37JB6K/35ZY30 37mm 3000-5000rpm 0.6N.m Permanent Magnet DC Brushed Spur Gear Motor

+86 0579-86817938-836

[email protected]

37JB6K/35ZY40

37mm OD Planetary Gearbox,

Permissible Load Range: 0.6N.m

PM DC Spur Gear Motor

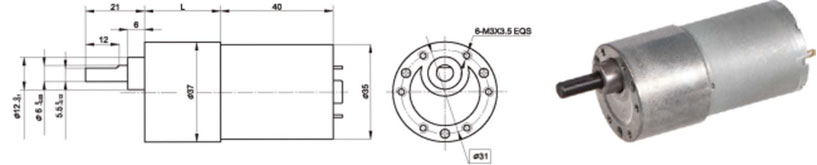

Dimensions

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

35ZY40-1230

12

3000

80

2300

7

2.1

400

22

0.8

35ZY40-1250

12

5000

100

4100

8

3.5

570

34

2.2

Gear Motor Technical Data

Configuration 35ZY40-1230 DC Motor

Reduction ratio

6

10

18

30

50

75

100

150

200

250

300

Number of gear trains

2

2

3

3

4

4

4

5

5

5

5

Length(L) mm

19

19

21.5

21.5

24

24

24

26.5

26.5

26.5

26.5

No-load speed     r/min

500

300

167

100

60

40

30

20

15

12

10

Rated speed       r/min

383

230

128

77

46

31

23

16

12

10

8.5

Rated torque        N.m

0.03

0.05

0.09

0.15

0.23

0.35

0.46

0.6

0.6

0.6

0.6

Max. permissible load in a short time N.m

0.3

0.3

0.6

0.6

1.2

1.2

1.2

1.8

1.8

1.8

1.8

Direction of rotation

CCW

CCW

CW

CW

CCW

CCW

CCW

CW

CW

CW

CW
Configuration 35ZY40-1250 DC Motor

Reduction ratio

6

10

18

30

50

75

100

150

200

250

300

Number of gear trains

2

2

3

3

4

4

4

5

5

5

5

Length(L) mm

19

19

21.5

21.5

24

24

24

26.5

26.5

26.5

26.5

No-load speed     r/min

833

500

278

167

100

67

50

33

25

20

17

Rated speed       r/min

683

410

228

137

82

55

41

28

23

18

16

Rated torque        N.m

0.04

0.06

0.11

0.18

0.26

0.39

0.52

0.6

0.6

0.6

0.6

Max. permissible load in a short time N.m

0.3

0.3

0.6

0.6

1.2

1.2

1.2

1.8

1.8

1.8

1.8

Direction of rotation

CCW

CCW

CW

CW

CCW

CCW

CCW

CW

CW

CW

CW

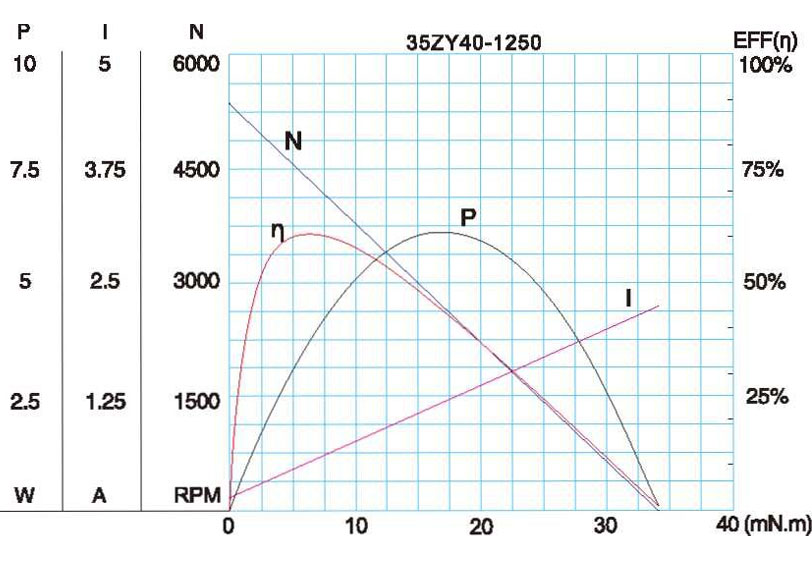

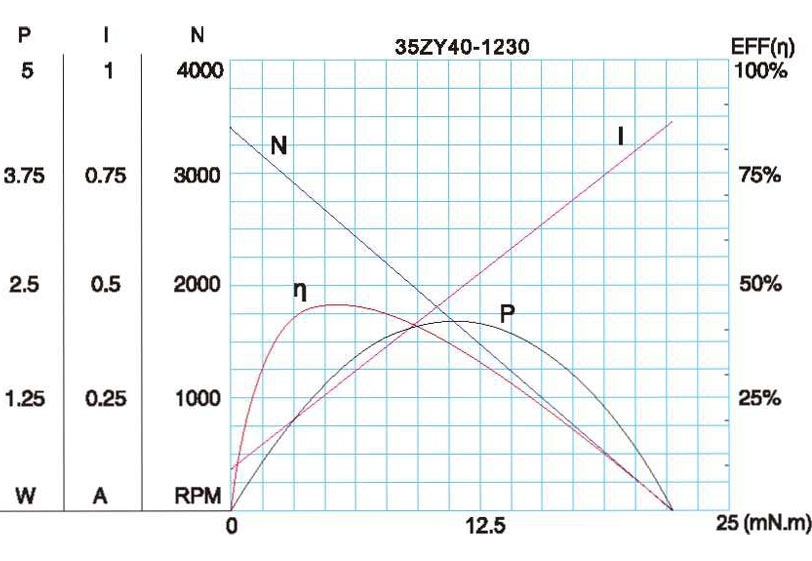

Motor Characteristic Figure

F-3

Technical parameters are subject to change without prior notice.*
