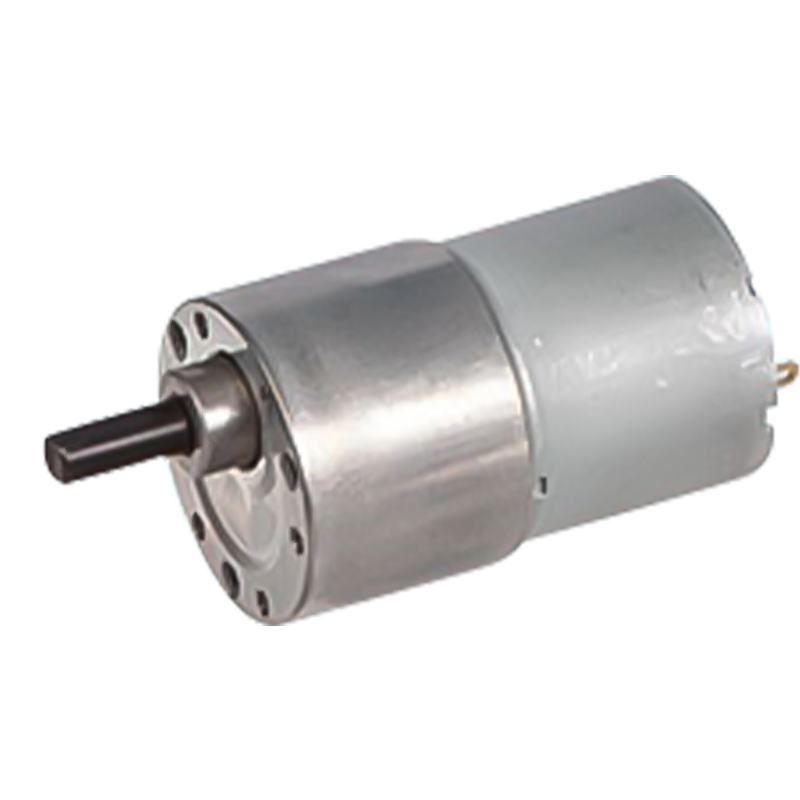

37JB6K/35ZY30 37mm 3000-5000rpm 0.6N.m Permanent Magnet DC Brushed Spur Gear Motor

37JB6K/35ZY30 37mm 3000-5000rpm 0.6N.m Permanent Magnet DC Brushed Spur Gear Motor

Product 37JB6K/35ZY30 allowable torque range: 0.6N.m ~37mm, outer diameter of 37mm, no-load speed of 3000- 5000 rpm, suitable for 12v/24v dual voltage environment.
It is composed of a brush motor and a parallel gear box, and the motor has a brush and a commutator inside. The structure is relatively simple, easy to manufacture and maintain, and the cost is also low. Parallel gear mechanism can increase the output torque, through a reasonable design of gear ratio, can meet the needs of different loads, suitable for equipment requiring large torque, such as robots, electric vehicles, etc. The efficiency of parallel gear transmission is higher, which can effectively transfer the power of the motor and reduce energy loss, and is more suitable for some occasions that require high energy efficiency.

  • 37JB6K/35ZY30 37mm 3000-5000rpm 0.6N.m Permanent Magnet DC Brushed Spur Gear Motor
Download Product Inquiry
PREV：37JB6K/35ZY40 12v/24v 37mm 0.6N.m Permanent Magnet DC Brushed Spur Gear Motor
NEXT：37JB6K/33ZY24 37mm 3000rpm 0.6N.m Permanent Magnet DC Brushed Spur Gear Motor

+86 0579-86817938-836

[email protected]

37JB6K/35ZY30

37mm OD Planetary Gearbox,

Permissible Load Range: 0.6N · m

PM DC Spur Gear Motor

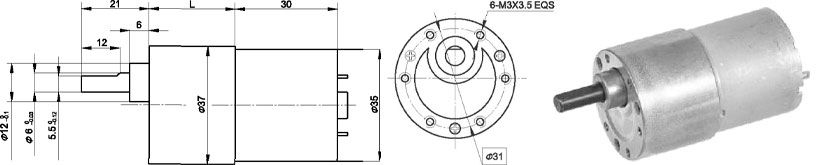

Dimensions

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

35ZY30-1230

12

3000

60

2400

5

1.2

280

12

0.56

35ZY30-1250

12

5000

80

4300

4

1.8

330

24

1.2

Gear Motor Technical Data

Configuration 35ZY30-1230 DC Motor

Reduction ratio

10

18

30

50

75

100

150

200

250

300

400

500

750

1000

Number of gear trains

2

3

3

4

4

4

5

5

5

5

6

6

6

6

Length(L) mm

19

21.5

21.5

24

24

24

26.5

26.5

26.5

26.5

29

29

29

29

No-load speed     r/min

300

167

100

60

40

30

20

15

12

10

7.5

6

4

3

Rated speed       r/min

240

133

80

48

32

24

16

12

10

9

7

5

3.2

2.4

Rated torque        N.m

0.04

0.07

1.11

0.16

0.24

0.33

0.44

0.59

0.6

0.6

0.6

0.6

0.6

0.6

Max. permissible load in a short time N.m

0.3

0.6

0.6

1.2

1.2

1.2

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

Direction of rotation

CCW

CW

CW

CCW

CCW

CCW

CW

CW

CW

CW

CCW

CCW

CCW

CCW
Configuration 35ZY30-1250 DC Motor

Reduction ratio

10

18

30

50

75

100

150

200

250

300

400

500

750

1000

Number of gear trains

2

3

3

4

4

4

5

5

5

5

6

6

6

6

Length(L) mm

19

21.5

21.5

24

24

24

26.5

26.5

26.5

26.5

29

29

29

29

No-load speed     r/min

500

278

167

100

67

50

33

25

20

16

12

10

6.6

5

Rated speed       r/min

430

239

143

86

57

43

29

22

17

14

11.3

9.2

6.3

4.8

Rated torque        N.m

0.04

0.05

0.1

0.16

0.22

0.29

0.44

0.58

0.6

0.6

0.6

0.6

0.6

0.6

Max. permissible load in a short time N.m

0.3

0.6

0.6

1.2

1.2

1.2

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

Direction of rotation

CCW

CW

CW

CCW

CCW

CCW

CW

CW

CW

CW

CCW

CCW

CCW

CCW

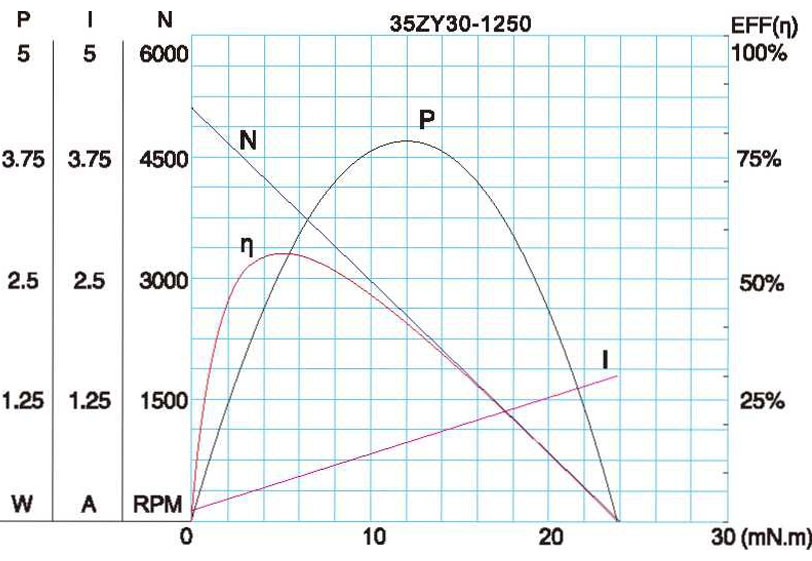

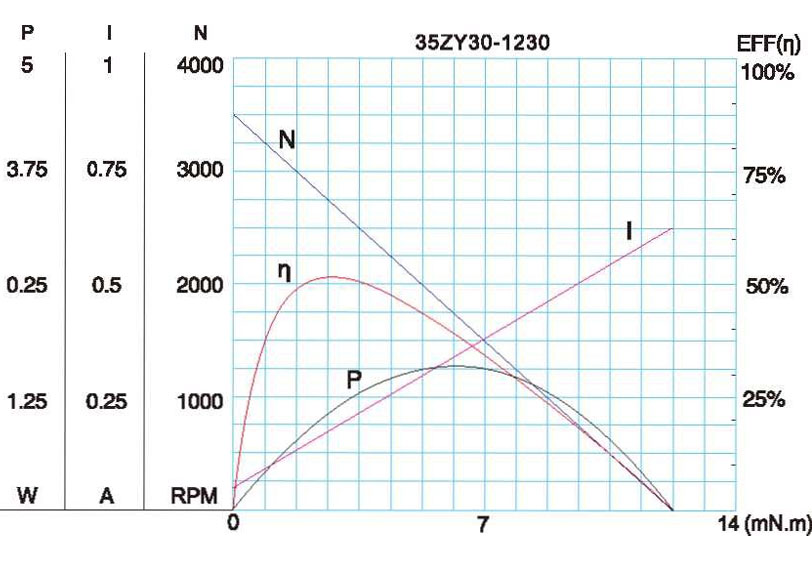

Motor Characteristic Figure

F-2

Technical parameters are subject to change without prior notice.*
