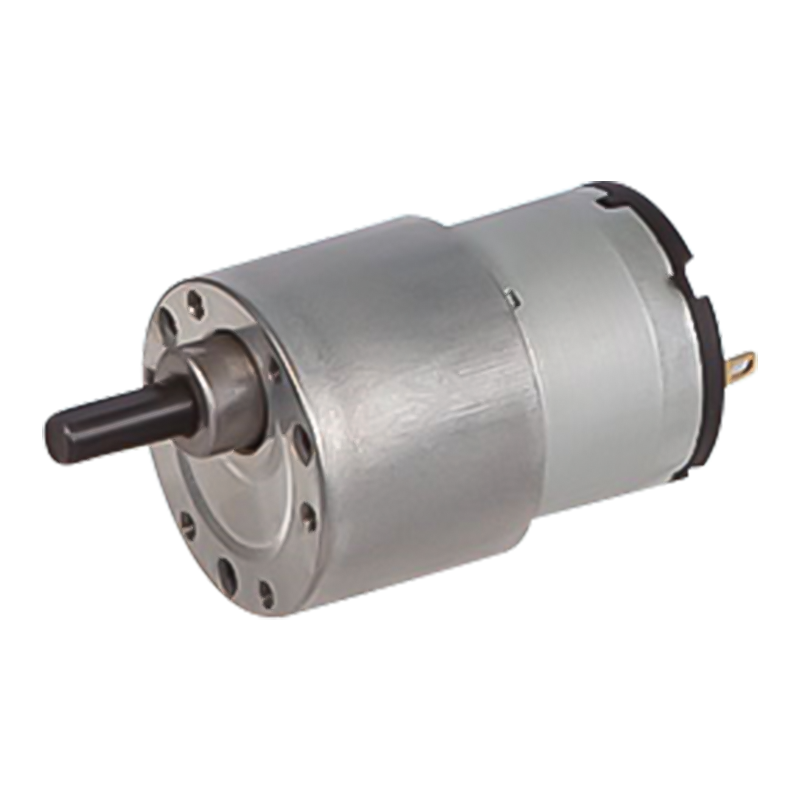

37JB6K/33ZY24 37mm 3000rpm 0.6N.m Permanent Magnet DC Brushed Spur Gear Motor

37JB6K/33ZY24 37mm 3000rpm 0.6N.m Permanent Magnet DC Brushed Spur Gear Motor

The 37JB6K/33ZY24 is a planetary reducer with an outer diameter of 37mm, allowing a torque range of 0.6 N · m to 37mm, and a no-load speed of 3,000 RPM.
Combined with a suitable position sensor and control system, a brushed parallel gear motor can achieve more accurate position control. In the positioning link of the automated production line, the mechanical parts can be accurately positioned to the specified position, improving the degree of automation and precision of production. The compact structure and small axial size of the parallel shaft gearbox are suitable for space-limited scenarios (such as small robots, home appliances, etc.). Parallel gear transmission is smooth, low noise, and can provide more stable power output, so that the equipment runs more stable and reliable, suitable for equipment with high operating stability requirements.

  • 37JB6K/33ZY24 37mm 3000rpm 0.6N.m Permanent Magnet DC Brushed Spur Gear Motor
Download Product Inquiry
PREV：37JB6K/35ZY30 37mm 3000-5000rpm 0.6N.m Permanent Magnet DC Brushed Spur Gear Motor
NEXT：No next article

+86 0579-86817938-836

[email protected]

37JB6K/33ZY24

37mm OD Planetary Gearbox,

Permissible Load Range: 0.6N · m

PM DC Spur Gear Motor

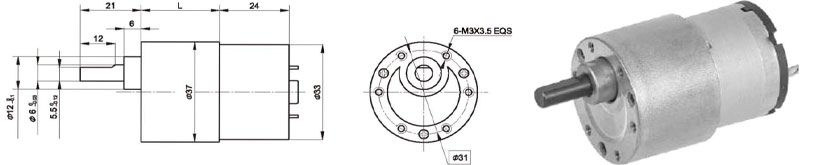

Dimensions

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque N.m

Output power W

Rated current A

Stall Torque N.m

Stall Current A

33ZY24-1230

12

3000

40

2300

2.5

0.59

100

10

0.26

33ZY24-2430

24

3000

20

2300

2.5

0.59

80

10

0.14

Gear Motor Technical Data

Configuration 33ZY24-1230 DC Motor

Reduction ratio

18

30

50

75

100

150

200

250

300

400

500

750

1000

1500

3000

Number of gear trains

3

3

4

4

4

5

5

5

5

6

6

6

6

7

7

Length(L) mm

21.5

21.5

24

24

24

26.5

26.5

26.5

26.5

29

29

29

29

31.5

31.5

No-load speed     r/min

161

97

58

39

29

19

15

12

10

7.3

5.8

3.9

2.9

1.9

1

Rated speed       r/min

122

73

44

29

22

15

11

8.8

7

5.5

4.5

3.1

2.4

1.7

0.8

Rated torque        N.m

0.03

0.05

0.08

0.12

0.16

0.22

0.3

0.37

0.44

0.53

0.6

0.6

0.6

0.6

0.6

Max. permissible load in a short time N.m

0.6

0.6

1.2

1.2

1.2

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

Direction of rotation

CW

CW

CCW

CCW

CCW

CW

CW

CW

CW

CCW

CCW

CCW

CCW

CW

CW
Configuration 33ZY24-2430 DC Motor

Reduction ratio

18

30

50

75

100

150

200

250

300

400

500

750

1000

1500

3000

Number of gear trains

3

3

4

4

4

5

5

5

5

6

6

6

6

7

7

Length(L) mm

21.5

21.5

24

24

24

26.5

26.5

26.5

26.5

29

29

29

29

31.5

31.5

No-load speed     r/min

167

100

60

40

30

20

15

12

10

7.5

6

4

3

2

1

Rated speed       r/min

128

77

46

31

23

15

12

9.2

7.7

5.9

4.8

3.3

2.5

1.7

0.9

Rated torque        N.m

0.04

0.06

0.1

0.14

0.18

0.27

0.37

0.41

0.49

0.6

0.6

0.6

0.6

0.6

0.6

Max. permissible load in a short time N.m

0.6

0.6

1.2

1.2

1.2

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

1.8

Direction of rotation

CW

CW

CCW

CCW

CCW

CW

CW

CW

CW

CCW

CCW

CCW

CCW

CW

CW

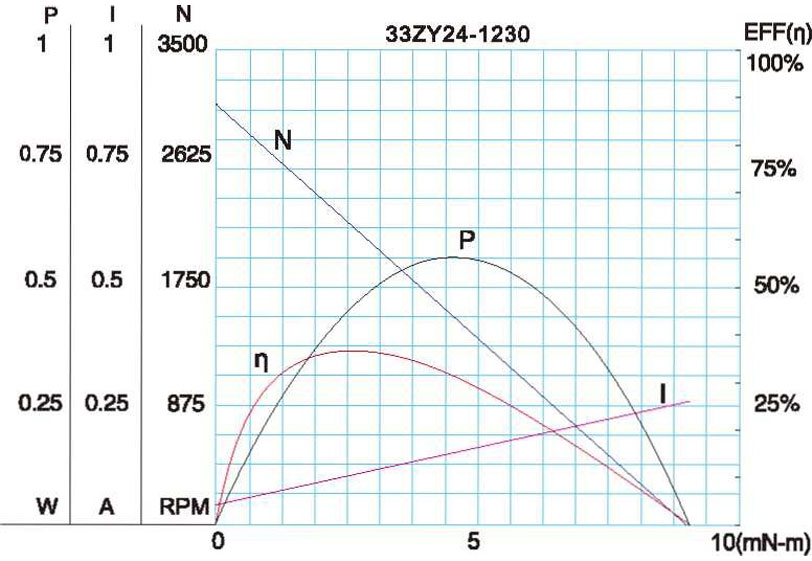

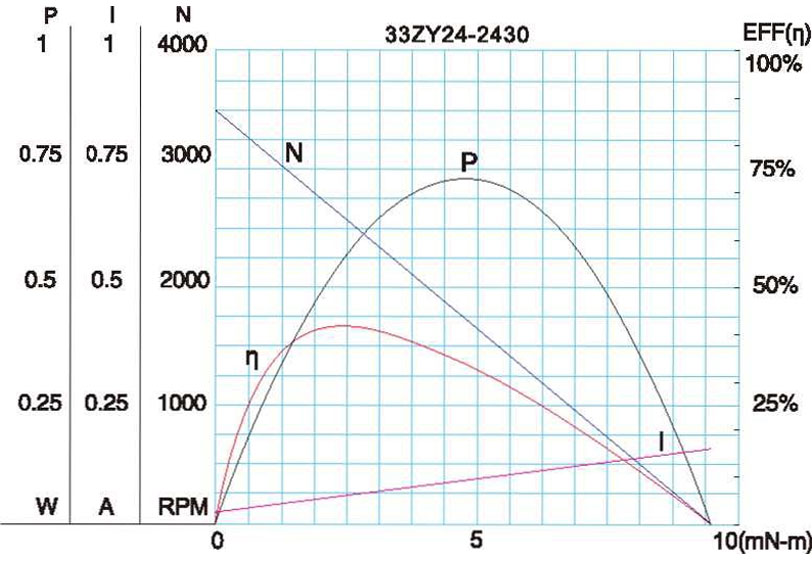

Motor Characteristic Figure

F-1

Technical parameters are subject to change without prior notice.*
