80ZY125 80mm Low Copper and Iron Loss Permanent Magnet Brushed DC Motor

80ZY125 80mm Low Copper and Iron Loss Permanent Magnet Brushed DC Motor

The 80ZY125 is a high-performance 80mm diameter permanent magnet DC motor with a fully enclosed construction designed for a wide range of applications requiring low noise operation. The product performs well in terms of size, performance and reliability to meet the needs of industrial automation, medical equipment, home appliances and more.
Other components inside the motor are also relatively easy to check and maintain, and technicians can more easily maintain and repair the motor, reducing the maintenance cost and downtime of the equipment. By reasonably designing the parameters of the motor and selecting the appropriate brush material, the copper loss and iron loss of the motor can be further reduced, the efficiency of the motor can be improved, and the energy consumption can be reduced, which has certain advantages in some applications that require energy efficiency, such as auxiliary motors for electric vehicles and electric bicycles.

  • 80ZY125 80mm Low Copper and Iron Loss Permanent Magnet Brushed DC Motor
Download Product Inquiry
PREV：96ZY140 96mm Quick Start Permanent Magnet Brushed DC Motor
NEXT：80ZY115 80mm High Performance Permanent Magnet Brushed DC Motor

+86 0579-86817938-836

[email protected]

80ZY125 PMDC Motor

80ZY125 PMDC Motor

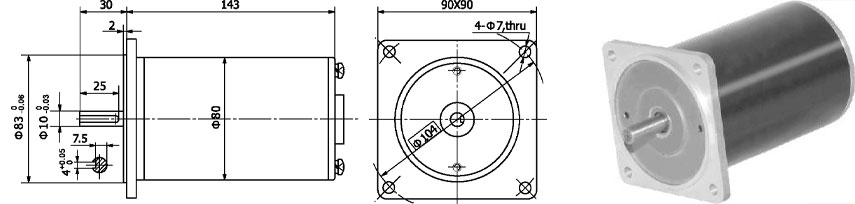

Dimensions

80MM OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.

Motor Technical Data

TYPE

Rated voltage VDC

No-load speed r/min

No-load current A

Rated Speed r/min

Rated torque mN.m

Output Power W

Rated current A

Stall torque mN.m

Stall Current A

80ZY125-2420

24

2000

0.5

1700

0.64

110

6

2.9

27

80ZY125-2435

24

3500

1.2

3000

0.7

200

10

3.2

45
